SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.14 | 17.08 | 2.07 | 11.10 | 24.36 | 331.86 | -36.89 | 58.02 | 0.6447 | -500.7 | -299.0 | |
|
previous
or next observation for the same group /

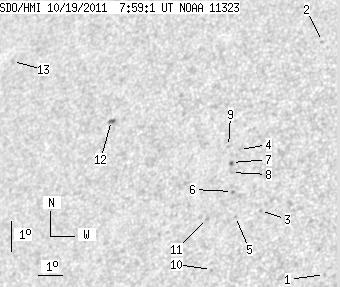

back to the solar disc SDO HMI 2011-10-19 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.01 | 338.04 | -30.71 | 59.66 | 0.5545 | -656.0 | -473.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 28.33 | 335.87 | -32.88 | 50.03 | 0.6258 | -525.0 | -416.0 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 22.87 | 335.13 | -33.62 | 58.52 | 0.6005 | -695.0 | -578.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 24.73 | 333.74 | -35.01 | 56.55 | 0.6269 | -696.0 | -506.2 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 22.64 | 334.22 | -34.53 | 59.41 | 0.6100 | -666.0 | -490.9 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 23.41 | 333.87 | -34.88 | 58.44 | 0.6181 | -757.0 | -580.2 | |
| 1.40 | 1.74 | 0.88 | 1.11 | 24.31 | 333.55 | -35.20 | 57.28 | 0.6267 | -716.2 | -693.5 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 24.00 | 333.65 | -35.10 | 57.69 | 0.6239 | -131.0 | -105.5 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 24.80 | 333.27 | -35.48 | 56.72 | 0.6325 | -511.0 | -414.3 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 20.95 | 333.75 | -35.00 | 62.27 | 0.6075 | -548.0 | -412.0 | |
| 0.00 | 1.57 | 0.00 | 0.99 | 22.51 | 333.15 | -35.61 | 60.18 | 0.6222 | -677.0 | -446.3 | |
| 1.74 | 2.18 | 1.19 | 1.49 | 25.34 | 328.16 | -40.59 | 58.56 | 0.6916 | -570.0 | -643.7 | |
| 0.00 | 2.09 | 0.00 | 1.57 | 26.92 | 322.89 | -45.86 | 58.61 | 0.7519 | 627.0 | 488.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
