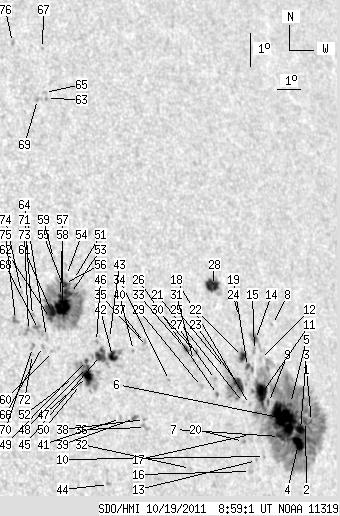

SDO HMI 2011-10-19 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.29 | 848.35 | 117.60 | 596.16 | 9.59 | 53.28 | 45.07 | 278.21 | 0.7066 | -111.3 | -95.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.13 | 455.53 | 0.85 | 335.96 | 8.12 | 57.29 | 49.09 | 275.94 | 0.7545 | -183.3 | -254.8 | |
| 2.09 | -1.00 | 1.56 | -1.00 | 8.14 | 57.02 | 48.81 | 275.96 | 0.7514 | -351.7 | 999999 | |
| 6.10 | -1.00 | 4.54 | -1.00 | 7.92 | 56.75 | 48.55 | 275.66 | 0.7483 | -637.1 | 999999 | |
| 9.42 | -1.00 | 6.98 | -1.00 | 7.51 | 56.60 | 48.39 | 275.11 | 0.7466 | -922.2 | 999999 | |
| 0.96 | -1.00 | 0.71 | -1.00 | 8.72 | 56.43 | 48.23 | 276.74 | 0.7446 | -520.5 | 999999 | |
| 39.94 | -1.00 | 29.32 | -1.00 | 8.30 | 56.04 | 47.84 | 276.17 | 0.7401 | -1044.8 | 999999 | |
| 1.74 | -1.00 | 1.27 | -1.00 | 7.78 | 55.78 | 47.58 | 275.46 | 0.7370 | -1050.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 11.13 | 56.08 | 47.88 | 280.01 | 0.7413 | 611.0 | 414.8 | |
| 1.66 | -1.00 | 1.20 | -1.00 | 8.82 | 55.45 | 47.25 | 276.89 | 0.7332 | -713.5 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 7.23 | 55.03 | 46.83 | 274.70 | 0.7283 | 9.0 | 27.1 | |
| 15.61 | -1.00 | 11.28 | -1.00 | 9.11 | 55.19 | 46.99 | 277.29 | 0.7302 | -924.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.88 | 10.13 | 55.33 | 47.13 | 278.68 | 0.7321 | -454.0 | -350.7 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 7.14 | 54.67 | 46.46 | 274.56 | 0.7239 | -652.0 | -600.1 | |
| 2.44 | 8.55 | 1.77 | 6.18 | 10.74 | 55.23 | 47.02 | 279.52 | 0.7312 | -321.4 | -153.3 | |
| 0.00 | 2.53 | 0.00 | 1.82 | 10.41 | 55.12 | 46.91 | 279.08 | 0.7298 | -522.0 | -365.8 | |
| 0.00 | 2.35 | 0.00 | 1.68 | 6.83 | 54.37 | 46.16 | 274.13 | 0.7204 | -617.0 | -499.3 | |
| 0.00 | 1.40 | 0.00 | 1.00 | 7.93 | 54.51 | 46.31 | 275.66 | 0.7220 | -589.0 | -514.1 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 8.82 | 54.61 | 46.41 | 276.90 | 0.7232 | -697.0 | -663.0 | |
| 1.92 | 9.68 | 1.37 | 6.94 | 9.96 | 54.72 | 46.52 | 278.47 | 0.7249 | -687.2 | -567.6 | |
| 0.00 | 1.66 | 0.00 | 1.18 | 7.74 | 54.18 | 45.98 | 275.40 | 0.7180 | -694.0 | -700.7 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 8.90 | 54.36 | 46.15 | 277.02 | 0.7202 | -670.0 | -594.4 | |
| 4.97 | 10.29 | 3.55 | 7.35 | 10.27 | 54.56 | 46.35 | 278.91 | 0.7231 | -881.6 | -631.9 | |
| 8.63 | 31.83 | 6.13 | 22.52 | 9.45 | 54.23 | 46.03 | 277.79 | 0.7189 | -928.8 | -729.5 | |
| 0.00 | 2.09 | 0.00 | 1.50 | 11.47 | 54.62 | 46.42 | 280.58 | 0.7245 | -609.0 | -535.8 | |
| 0.00 | 5.76 | 0.00 | 4.05 | 9.97 | 53.76 | 45.55 | 278.53 | 0.7133 | -493.0 | -566.0 | |
| 1.31 | 1.66 | 0.91 | 1.16 | 9.21 | 53.28 | 45.08 | 277.49 | 0.7073 | -729.5 | -683.5 | |
| 0.00 | 1.83 | 0.00 | 1.28 | 9.67 | 53.27 | 45.07 | 278.13 | 0.7073 | -858.0 | -674.2 | |
| 11.60 | 20.32 | 8.18 | 14.35 | 12.48 | 53.70 | 45.49 | 282.06 | 0.7144 | 761.9 | 180.8 | |
| 0.00 | 1.66 | 0.00 | 1.15 | 9.50 | 52.64 | 44.44 | 277.92 | 0.6995 | -784.0 | -690.6 | |
| 0.00 | 1.57 | 0.00 | 1.08 | 10.52 | 52.61 | 44.40 | 279.39 | 0.6996 | -812.0 | -704.9 | |
| 0.00 | 1.57 | 0.00 | 1.08 | 10.30 | 52.44 | 44.23 | 279.07 | 0.6974 | -773.0 | -638.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 7.09 | 51.84 | 43.63 | 274.45 | 0.6892 | 495.0 | 362.9 | |
| 2.44 | 3.66 | 1.68 | 2.51 | 10.67 | 52.17 | 43.96 | 279.64 | 0.6943 | -772.7 | -698.9 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 9.77 | 51.34 | 43.13 | 278.37 | 0.6834 | 429.0 | 327.5 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 10.84 | 50.61 | 42.40 | 280.01 | 0.6749 | 409.0 | 405.0 | |
| 0.00 | 3.66 | 0.00 | 2.43 | 8.43 | 50.15 | 41.95 | 276.44 | 0.6678 | 537.0 | 418.8 | |
| 0.00 | 2.01 | 0.00 | 1.34 | 10.96 | 50.51 | 42.30 | 280.21 | 0.6737 | 508.0 | 427.7 | |
| 0.00 | 1.31 | 0.00 | 0.87 | 8.67 | 50.14 | 41.94 | 276.80 | 0.6677 | 474.0 | 300.1 | |
| 2.18 | 3.23 | 1.44 | 2.13 | 8.73 | 49.75 | 41.54 | 276.90 | 0.6626 | 610.9 | 455.0 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 10.75 | 50.02 | 41.81 | 279.94 | 0.6673 | -733.0 | -541.5 | |
| 0.00 | 1.57 | 0.00 | 1.03 | 8.76 | 49.19 | 40.98 | 276.98 | 0.6553 | 441.0 | 349.6 | |
| 5.93 | 29.30 | 3.88 | 19.12 | 10.63 | 49.14 | 40.94 | 279.84 | 0.6559 | 450.8 | 227.9 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 11.17 | 49.11 | 40.91 | 280.67 | 0.6561 | 215.0 | 270.1 | |
| 0.00 | 1.66 | 0.00 | 1.07 | 6.82 | 48.48 | 40.28 | 274.00 | 0.6458 | 618.0 | 508.5 | |
| 7.24 | -42.00 | 4.71 | -42.00 | 10.69 | 48.67 | 40.47 | 279.98 | 0.6498 | 711.0 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.13 | 11.12 | 48.58 | 40.38 | 280.64 | 0.6491 | 549.0 | 536.0 | |
| 9.16 | 42.64 | 5.90 | 27.47 | 10.09 | 48.06 | 39.85 | 279.11 | 0.6413 | 964.3 | 442.3 | |
| 0.44 | -47.00 | 0.28 | -47.00 | 10.36 | 48.10 | 39.90 | 279.53 | 0.6421 | 872.8 | 999999 | |
| 1.22 | -47.00 | 0.79 | -47.00 | 10.57 | 48.09 | 39.89 | 279.86 | 0.6422 | 806.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 9.87 | 47.75 | 39.55 | 278.79 | 0.6370 | 812.0 | 666.9 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 13.03 | 48.00 | 39.80 | 283.68 | 0.6441 | 361.0 | 308.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 10.10 | 47.51 | 39.30 | 279.17 | 0.6340 | 697.0 | 602.5 | |
| 1.13 | 144.40 | 0.73 | 92.51 | 12.61 | 47.81 | 39.60 | 283.08 | 0.6409 | 529.3 | 305.5 | |
| 0.00 | 1.74 | 0.00 | 1.12 | 13.16 | 47.75 | 39.55 | 283.94 | 0.6411 | 474.0 | 376.1 | |
| 1.83 | -53.00 | 1.18 | -53.00 | 12.68 | 47.62 | 39.42 | 283.22 | 0.6386 | 840.2 | 999999 | |
| 2.44 | -53.00 | 1.57 | -53.00 | 12.93 | 47.63 | 39.42 | 283.60 | 0.6391 | 704.7 | 999999 | |
| 16.22 | -53.00 | 10.38 | -53.00 | 12.21 | 47.42 | 39.21 | 282.52 | 0.6352 | 1062.4 | 999999 | |
| 1.13 | -53.00 | 0.73 | -53.00 | 12.55 | 47.40 | 39.19 | 283.05 | 0.6355 | 941.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.34 | 13.70 | 47.34 | 39.13 | 284.86 | 0.6367 | -222.0 | -226.2 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 10.92 | 46.81 | 38.60 | 280.56 | 0.6255 | 624.0 | 487.5 | |
| 7.06 | -53.00 | 4.49 | -53.00 | 12.12 | 46.97 | 38.76 | 282.45 | 0.6291 | 1040.2 | 999999 | |
| 0.35 | -53.00 | 0.22 | -53.00 | 11.91 | 46.89 | 38.69 | 282.13 | 0.6279 | 902.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 18.55 | 48.22 | 40.01 | 291.99 | 0.6598 | 645.0 | 576.9 | |
| 0.00 | 2.44 | 0.00 | 1.54 | 11.38 | 46.65 | 38.44 | 281.32 | 0.6239 | 377.0 | 436.1 | |
| 0.00 | 1.66 | 0.00 | 1.09 | 18.73 | 48.19 | 39.99 | 292.28 | 0.6600 | 476.0 | 357.2 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 11.09 | 46.45 | 38.24 | 280.89 | 0.6208 | 786.0 | 668.6 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 20.08 | 48.51 | 40.30 | 294.14 | 0.6681 | 374.0 | 311.3 | |
| 0.00 | 7.06 | 0.00 | 4.45 | 11.61 | 46.37 | 38.17 | 281.73 | 0.6205 | 899.0 | 753.0 | |
| 0.00 | 1.66 | 0.00 | 1.08 | 18.54 | 47.85 | 39.64 | 292.11 | 0.6552 | 756.0 | 625.8 | |
| 0.00 | 2.35 | 0.00 | 1.48 | 11.09 | 46.06 | 37.85 | 280.93 | 0.6156 | 834.0 | 761.4 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 12.04 | 46.21 | 38.01 | 282.46 | 0.6190 | 757.0 | 609.5 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 10.88 | 46.03 | 37.82 | 280.60 | 0.6149 | 770.0 | 614.8 | |
| 0.00 | 5.49 | 0.00 | 3.44 | 11.60 | 45.98 | 37.78 | 281.78 | 0.6153 | 915.0 | 763.7 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 12.76 | 45.91 | 37.70 | 283.66 | 0.6161 | 776.0 | 661.2 | |
| 0.00 | 4.36 | 0.00 | 2.72 | 11.96 | 45.54 | 37.34 | 282.44 | 0.6098 | 800.0 | 745.9 | |
| 0.00 | 1.74 | 0.00 | 1.14 | 20.34 | 47.34 | 39.14 | 294.95 | 0.6551 | 539.0 | 493.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
