SDO HMI 2011-10-19 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.67 | 20.15 | 5.18 | 13.51 | -21.20 | 334.81 | -33.39 | 130.33 | 0.6752 | -197.6 | 13.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

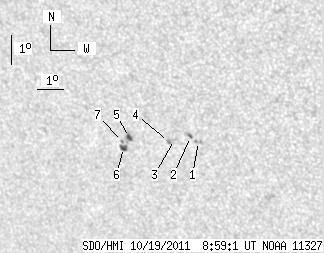

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 2.12 | -21.11 | 336.57 | -31.64 | 131.67 | 0.6573 | 542.0 | 577.3 | |
| 1.48 | 2.70 | 0.97 | 1.78 | -20.96 | 336.30 | -31.90 | 131.25 | 0.6588 | 527.5 | 352.9 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -21.10 | 335.66 | -32.54 | 130.88 | 0.6661 | 78.0 | 106.5 | |
| 0.00 | 1.92 | 0.00 | 1.28 | -21.18 | 335.41 | -32.79 | 130.77 | 0.6692 | 425.0 | 304.2 | |
| 2.44 | 5.41 | 1.65 | 3.66 | -21.13 | 333.92 | -34.28 | 129.52 | 0.6834 | -800.2 | -656.8 | |
| 3.75 | 4.62 | 2.56 | 3.15 | -21.48 | 333.60 | -34.61 | 129.69 | 0.6892 | -597.4 | -397.6 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -21.28 | 333.61 | -34.59 | 129.46 | 0.6876 | -521.0 | -488.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
