SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.21 | 411.80 | 47.47 | 319.06 | 27.63 | 55.21 | 47.55 | 301.70 | 0.7706 | -867.0 | -228.6 | |
|
previous
or next observation for the same group /

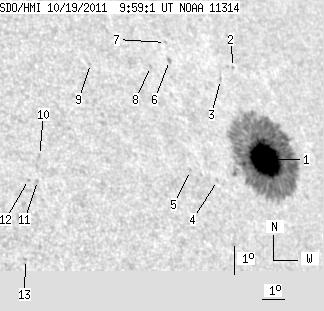

back to the solar disc SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.21 | 397.67 | 47.47 | 308.83 | 27.57 | 55.37 | 47.71 | 301.56 | 0.7720 | -1087.2 | -237.2 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 30.60 | 55.61 | 47.95 | 305.20 | 0.7845 | 609.0 | 510.8 | |
| 0.00 | 1.40 | 0.00 | 1.09 | 30.26 | 54.72 | 47.06 | 305.11 | 0.7753 | 500.0 | 467.4 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 27.06 | 52.74 | 45.09 | 301.86 | 0.7448 | -550.0 | -465.8 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 27.45 | 51.67 | 44.01 | 302.78 | 0.7357 | -555.0 | -455.5 | |
| 0.00 | 2.44 | 0.00 | 1.85 | 31.04 | 52.64 | 44.98 | 306.89 | 0.7596 | -743.0 | -558.0 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 31.63 | 52.81 | 45.15 | 307.55 | 0.7636 | -381.0 | -376.2 | |
| 0.00 | 1.40 | 0.00 | 1.04 | 30.90 | 51.63 | 43.97 | 307.15 | 0.7497 | -600.0 | -482.4 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 31.17 | 48.92 | 41.27 | 308.75 | 0.7259 | -564.0 | -469.3 | |
| 0.00 | 1.48 | 0.00 | 0.99 | 28.33 | 45.30 | 37.64 | 306.98 | 0.6753 | 520.0 | 447.1 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 27.53 | 44.89 | 37.24 | 306.13 | 0.6667 | 536.0 | 469.0 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 27.58 | 44.53 | 36.88 | 306.41 | 0.6632 | 638.0 | 547.7 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 25.06 | 43.48 | 35.83 | 303.46 | 0.6379 | 639.0 | 548.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
