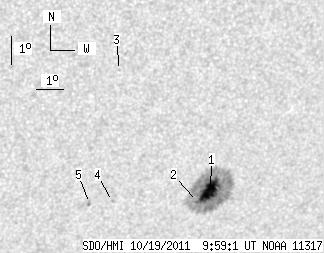

SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.03 | 149.35 | 17.00 | 101.36 | -26.91 | 36.95 | 29.29 | 219.68 | 0.6856 | 979.4 | 275.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.63 | 145.34 | 16.05 | 98.77 | -26.91 | 37.08 | 29.42 | 219.80 | 0.6866 | 1038.0 | 264.9 | |
| 1.40 | -1.00 | 0.95 | -1.00 | -27.28 | 36.68 | 29.03 | 219.06 | 0.6867 | 827.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -22.57 | 32.67 | 25.01 | 220.14 | 0.6079 | 722.0 | 530.5 | |
| 0.00 | 1.31 | 0.00 | 0.86 | -27.13 | 33.42 | 25.77 | 216.06 | 0.6596 | 709.0 | 568.3 | |
| 0.00 | 1.83 | 0.00 | 1.19 | -27.16 | 32.57 | 24.92 | 215.15 | 0.6535 | 712.0 | 688.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
