SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.44 | 0.00 | 8.44 | 23.88 | 333.10 | -34.55 | 57.51 | 0.6166 | -666.3 | -540.0 | |
|
previous
or next observation for the same group /

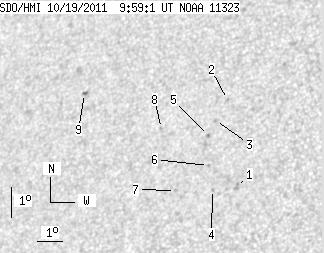

back to the solar disc SDO HMI 2011-10-19 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.88 | 0.00 | 1.76 | 22.73 | 335.13 | -32.53 | 58.06 | 0.5867 | -741.0 | -596.8 | |
| 0.00 | 1.31 | 0.00 | 0.82 | 25.46 | 333.98 | -33.68 | 54.65 | 0.6161 | -703.0 | -537.6 | |
| 0.00 | 1.40 | 0.00 | 0.87 | 24.78 | 333.72 | -33.94 | 55.82 | 0.6150 | -694.0 | -498.2 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 22.62 | 334.23 | -33.42 | 58.78 | 0.5968 | -682.0 | -542.3 | |
| 0.00 | 1.57 | 0.00 | 0.98 | 24.29 | 333.59 | -34.07 | 56.62 | 0.6137 | -774.0 | -642.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 23.36 | 333.87 | -33.79 | 57.86 | 0.6052 | -541.0 | -441.5 | |
| 0.00 | 1.48 | 0.00 | 0.93 | 22.51 | 332.81 | -34.84 | 59.76 | 0.6132 | -597.0 | -493.1 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 24.41 | 331.66 | -35.99 | 57.57 | 0.6363 | -554.0 | -447.6 | |
| 0.00 | 1.48 | 0.00 | 1.00 | 25.33 | 328.12 | -39.54 | 58.08 | 0.6802 | -711.0 | -556.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
