SDO HMI 2011-10-19 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.15 | 821.45 | 128.42 | 588.17 | 9.53 | 53.26 | 46.15 | 278.09 | 0.7196 | -58.5 | -103.3 | |
|
previous
or next observation for the same group /

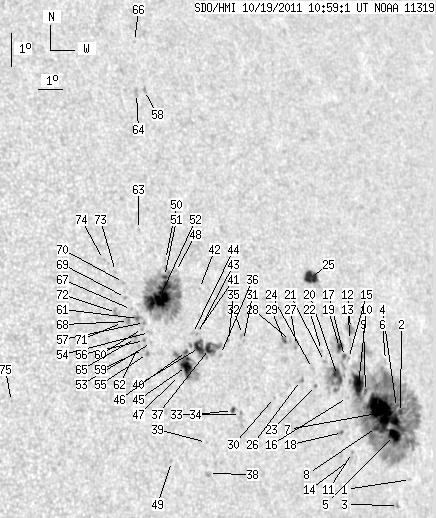

back to the solar disc SDO HMI 2011-10-19 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.67 | 6.12 | 57.16 | 50.05 | 273.33 | 0.7658 | -669.0 | -594.8 | |
| 2.01 | 444.33 | 1.53 | 334.74 | 8.15 | 56.99 | 49.88 | 275.98 | 0.7634 | -350.7 | -238.4 | |
| 0.00 | 1.66 | 0.00 | 1.25 | 5.39 | 56.51 | 49.40 | 272.33 | 0.7589 | 491.0 | 391.9 | |
| 0.35 | -2.00 | 0.27 | -2.00 | 8.31 | 56.83 | 49.72 | 276.20 | 0.7616 | -196.8 | 999999 | |
| 10.29 | -2.00 | 7.80 | -2.00 | 7.48 | 56.60 | 49.49 | 275.10 | 0.7591 | -836.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.92 | 9.74 | 56.58 | 49.47 | 278.09 | 0.7590 | -76.0 | -113.7 | |
| 51.35 | -2.00 | 38.57 | -2.00 | 8.21 | 56.16 | 49.05 | 276.06 | 0.7541 | -969.6 | 999999 | |
| 1.48 | -2.00 | 1.11 | -2.00 | 7.78 | 55.81 | 48.71 | 275.49 | 0.7502 | -1040.7 | 999999 | |
| 1.74 | -2.00 | 1.29 | -2.00 | 8.89 | 55.50 | 48.39 | 276.97 | 0.7465 | -545.8 | 999999 | |
| 15.26 | -2.00 | 11.25 | -2.00 | 9.12 | 55.22 | 48.11 | 277.28 | 0.7433 | -860.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 7.12 | 54.63 | 47.52 | 274.57 | 0.7365 | -647.0 | -600.5 | |
| 0.00 | 6.89 | 0.00 | 5.08 | 10.81 | 55.18 | 48.07 | 279.57 | 0.7434 | -316.0 | -266.5 | |
| 0.00 | 2.01 | 0.00 | 1.48 | 10.45 | 55.11 | 48.00 | 279.09 | 0.7424 | -478.0 | -375.6 | |
| 0.00 | 2.27 | 0.00 | 1.65 | 6.91 | 54.51 | 47.40 | 274.29 | 0.7352 | -670.0 | -549.0 | |
| 0.00 | 1.31 | 0.00 | 0.96 | 9.92 | 54.91 | 47.80 | 278.38 | 0.7400 | -446.0 | -447.6 | |
| 0.00 | 1.39 | 0.00 | 1.02 | 8.77 | 54.66 | 47.55 | 276.82 | 0.7367 | -522.0 | -561.8 | |
| 1.22 | 6.71 | 0.89 | 4.90 | 9.99 | 54.75 | 47.64 | 278.48 | 0.7380 | -643.3 | -612.8 | |
| 1.22 | 2.18 | 0.88 | 1.58 | 7.74 | 54.27 | 47.16 | 275.42 | 0.7322 | -693.0 | -638.1 | |
| 4.27 | 11.51 | 3.12 | 8.38 | 10.28 | 54.58 | 47.47 | 278.88 | 0.7362 | -840.6 | -604.3 | |
| 10.37 | 33.21 | 7.53 | 24.01 | 9.45 | 54.33 | 47.22 | 277.76 | 0.7330 | -896.3 | -719.2 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 9.91 | 53.83 | 46.72 | 278.40 | 0.7273 | -773.0 | -668.4 | |
| 0.00 | 1.05 | 0.00 | 0.75 | 10.24 | 53.76 | 46.65 | 278.87 | 0.7266 | -659.0 | -553.9 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 9.22 | 53.36 | 46.25 | 277.46 | 0.7214 | -839.0 | -726.9 | |
| 0.00 | 1.66 | 0.00 | 1.18 | 9.74 | 53.27 | 46.16 | 278.19 | 0.7206 | -645.0 | -540.0 | |
| 11.42 | 13.60 | 8.22 | 9.79 | 12.45 | 53.74 | 46.64 | 281.91 | 0.7279 | 710.6 | 501.1 | |
| 0.00 | 3.14 | 0.00 | 2.21 | 9.41 | 52.69 | 45.58 | 277.76 | 0.7135 | -827.0 | -727.4 | |
| 0.00 | 3.05 | 0.00 | 2.15 | 10.47 | 52.71 | 45.60 | 279.24 | 0.7141 | -790.0 | -728.4 | |
| 0.00 | 1.22 | 0.00 | 0.86 | 10.63 | 52.48 | 45.37 | 279.49 | 0.7114 | -537.0 | -563.9 | |
| 1.57 | 5.40 | 1.10 | 3.78 | 10.62 | 52.21 | 45.11 | 279.49 | 0.7083 | -676.2 | -567.2 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 8.98 | 51.50 | 44.39 | 277.19 | 0.6988 | 243.0 | 227.1 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 10.77 | 50.50 | 43.39 | 279.82 | 0.6872 | 591.0 | 475.4 | |
| 0.00 | 2.35 | 0.00 | 1.60 | 10.95 | 50.49 | 43.38 | 280.09 | 0.6872 | 522.0 | 329.1 | |
| 0.00 | 2.09 | 0.00 | 1.41 | 8.57 | 50.02 | 42.91 | 276.63 | 0.6801 | 297.0 | 362.3 | |
| 2.35 | 2.79 | 1.58 | 1.87 | 8.71 | 49.71 | 42.60 | 276.85 | 0.6762 | 562.8 | 437.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 10.81 | 49.88 | 42.77 | 279.94 | 0.6795 | -581.0 | -465.0 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 10.41 | 49.48 | 42.37 | 279.39 | 0.6741 | -488.0 | -535.6 | |
| 6.10 | 31.47 | 4.05 | 20.87 | 10.62 | 49.06 | 41.95 | 279.73 | 0.6689 | 490.4 | 127.2 | |
| 0.00 | 2.79 | 0.00 | 1.84 | 6.90 | 48.51 | 41.40 | 274.14 | 0.6605 | 607.0 | 499.4 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 7.83 | 48.53 | 41.42 | 275.55 | 0.6608 | 463.0 | 411.0 | |
| 9.59 | -37.00 | 6.33 | -37.00 | 10.67 | 48.66 | 41.55 | 279.85 | 0.6639 | 706.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 11.24 | 48.76 | 41.65 | 280.70 | 0.6657 | 495.0 | 399.8 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 12.43 | 48.98 | 41.87 | 282.46 | 0.6699 | 434.0 | 333.8 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 11.10 | 48.65 | 41.54 | 280.49 | 0.6641 | 627.0 | 536.0 | |
| 0.00 | 1.39 | 0.00 | 0.92 | 11.11 | 48.45 | 41.34 | 280.53 | 0.6616 | 709.0 | 581.6 | |
| 14.04 | 36.53 | 9.18 | 23.92 | 10.14 | 48.05 | 40.94 | 279.10 | 0.6555 | 909.3 | 321.2 | |
| 1.13 | -45.00 | 0.74 | -45.00 | 10.59 | 48.12 | 41.01 | 279.77 | 0.6568 | 829.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 9.89 | 47.73 | 40.62 | 278.74 | 0.6512 | 455.0 | 496.0 | |
| 0.00 | 1.48 | 0.00 | 0.97 | 13.00 | 48.11 | 41.00 | 283.45 | 0.6596 | 184.0 | 248.1 | |
| 0.00 | 1.39 | 0.00 | 0.90 | 7.35 | 47.08 | 39.97 | 274.82 | 0.6417 | 716.0 | 575.0 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 13.39 | 47.78 | 40.67 | 284.09 | 0.6560 | 433.0 | 391.2 | |
| 1.74 | 142.71 | 1.14 | 92.82 | 12.88 | 47.64 | 40.53 | 283.34 | 0.6534 | 700.3 | 284.7 | |
| 33.65 | -51.00 | 21.84 | -51.00 | 12.27 | 47.32 | 40.21 | 282.45 | 0.6484 | 974.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 10.94 | 46.78 | 39.67 | 280.47 | 0.6396 | 655.0 | 485.9 | |
| 0.00 | 2.18 | 0.00 | 1.40 | 11.24 | 46.75 | 39.64 | 280.95 | 0.6396 | 546.0 | 434.8 | |
| 0.00 | 1.74 | 0.00 | 1.12 | 10.62 | 46.57 | 39.46 | 279.99 | 0.6365 | 779.0 | 683.3 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 11.02 | 46.51 | 39.40 | 280.62 | 0.6362 | 717.0 | 597.8 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 11.55 | 46.60 | 39.49 | 281.45 | 0.6380 | 713.0 | 675.0 | |
| 0.00 | 2.01 | 0.00 | 1.34 | 18.53 | 48.20 | 41.09 | 291.64 | 0.6727 | 595.0 | 506.0 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 10.75 | 46.43 | 39.32 | 280.21 | 0.6348 | 680.0 | 611.4 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 11.38 | 46.49 | 39.38 | 281.19 | 0.6364 | 721.0 | 604.4 | |
| 0.00 | 5.93 | 0.00 | 3.79 | 11.69 | 46.38 | 39.28 | 281.69 | 0.6354 | 808.0 | 736.6 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 10.85 | 46.25 | 39.14 | 280.39 | 0.6325 | 616.0 | 574.6 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 14.35 | 46.90 | 39.79 | 285.74 | 0.6464 | 481.0 | 401.4 | |
| 0.00 | 3.23 | 0.00 | 2.14 | 18.46 | 47.84 | 40.73 | 291.65 | 0.6683 | 648.0 | 501.9 | |
| 0.00 | 2.62 | 0.00 | 1.67 | 11.10 | 46.17 | 39.06 | 280.79 | 0.6318 | 732.0 | 757.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 20.05 | 48.24 | 41.13 | 293.82 | 0.6778 | 478.0 | 381.4 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 11.97 | 46.16 | 39.05 | 282.18 | 0.6327 | 641.0 | 581.5 | |
| 0.00 | 1.57 | 0.00 | 1.00 | 11.62 | 45.98 | 38.87 | 281.65 | 0.6299 | 864.0 | 810.9 | |
| 0.00 | 1.39 | 0.00 | 0.89 | 12.35 | 45.99 | 38.88 | 282.80 | 0.6310 | 748.0 | 629.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 12.80 | 45.99 | 38.88 | 283.51 | 0.6318 | 688.0 | 613.6 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 11.61 | 45.74 | 38.63 | 281.66 | 0.6267 | 597.0 | 524.0 | |
| 0.00 | 5.23 | 0.00 | 3.31 | 11.92 | 45.56 | 38.45 | 282.19 | 0.6247 | 818.0 | 704.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 13.15 | 45.74 | 38.63 | 284.11 | 0.6291 | 717.0 | 563.0 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 13.53 | 45.34 | 38.23 | 284.81 | 0.6246 | 389.0 | 405.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 9.48 | 41.25 | 34.14 | 278.73 | 0.5622 | 594.0 | 471.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
