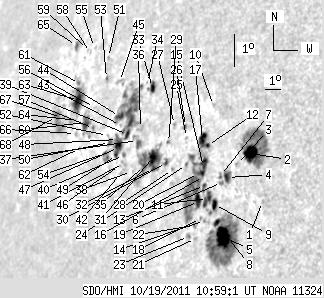

SDO HMI 2011-10-19 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.58 | 596.00 | 152.27 | 608.88 | 11.23 | 305.67 | -61.44 | 80.21 | 0.8740 | -117.5 | 37.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.98 | 10.53 | 311.68 | -55.43 | 81.02 | 0.8218 | -651.0 | -553.8 | |
| 13.51 | 72.27 | 12.00 | 63.94 | 11.90 | 310.62 | -56.49 | 79.38 | 0.8323 | -664.2 | -355.2 | |
| 0.00 | 0.96 | 0.00 | 0.87 | 11.51 | 309.95 | -57.16 | 79.86 | 0.8384 | -444.0 | -417.2 | |
| 4.53 | 7.58 | 4.14 | 6.92 | 11.09 | 309.58 | -57.53 | 80.37 | 0.8419 | -645.8 | -538.7 | |
| 17.96 | 114.81 | 16.29 | 104.00 | 9.32 | 309.79 | -57.32 | 82.48 | 0.8399 | -785.9 | -313.6 | |
| 0.00 | 2.18 | 0.00 | 2.00 | 10.91 | 309.29 | -57.82 | 80.58 | 0.8446 | -640.0 | -535.8 | |
| 0.00 | 2.18 | 0.00 | 2.01 | 11.12 | 309.16 | -57.94 | 80.34 | 0.8457 | -288.0 | -206.9 | |
| 3.31 | -5.00 | 3.04 | -5.00 | 9.71 | 309.35 | -57.76 | 82.01 | 0.8440 | -454.3 | 999999 | |
| 4.27 | 124.05 | 3.95 | 118.24 | 10.23 | 309.09 | -58.02 | 81.39 | 0.8464 | -626.6 | 101.1 | |
| 0.00 | 1.13 | 0.00 | 1.08 | 13.15 | 308.03 | -59.08 | 77.97 | 0.8562 | -463.0 | -400.5 | |
| 6.80 | -9.00 | 6.36 | -9.00 | 10.38 | 308.64 | -58.47 | 81.22 | 0.8505 | -573.3 | 999999 | |
| 1.48 | -9.00 | 1.41 | -9.00 | 11.94 | 308.12 | -58.98 | 79.38 | 0.8552 | 226.1 | 999999 | |
| 0.61 | -9.00 | 0.58 | -9.00 | 10.75 | 308.35 | -58.76 | 80.78 | 0.8531 | -210.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.98 | 9.71 | 308.65 | -58.46 | 82.00 | 0.8504 | -396.0 | -390.4 | |
| 8.19 | -9.00 | 7.78 | -9.00 | 11.30 | 308.11 | -59.00 | 80.13 | 0.8553 | -384.9 | 999999 | |
| 0.26 | -9.00 | 0.25 | -9.00 | 11.01 | 308.20 | -58.91 | 80.48 | 0.8544 | 77.0 | 999999 | |
| 7.76 | -9.00 | 7.44 | -9.00 | 12.09 | 307.77 | -59.34 | 79.21 | 0.8583 | -577.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.31 | 9.75 | 308.41 | -58.70 | 81.95 | 0.8526 | -452.0 | -366.6 | |
| 6.02 | -9.00 | 5.71 | -9.00 | 10.24 | 308.15 | -58.96 | 81.37 | 0.8549 | -346.7 | 999999 | |
| 1.22 | -9.00 | 1.17 | -9.00 | 11.07 | 307.88 | -59.23 | 80.40 | 0.8572 | 329.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.40 | 9.14 | 308.28 | -58.83 | 82.67 | 0.8538 | 409.0 | 237.6 | |
| 0.00 | 2.27 | 0.00 | 2.15 | 9.52 | 308.12 | -58.99 | 82.23 | 0.8552 | -236.0 | -183.2 | |
| 0.00 | 2.53 | 0.00 | 2.42 | 9.16 | 307.86 | -59.25 | 82.63 | 0.8575 | 484.0 | 255.5 | |
| 0.00 | 2.09 | 0.00 | 2.04 | 11.28 | 307.09 | -60.02 | 80.17 | 0.8642 | 438.0 | 467.5 | |
| 0.00 | 1.05 | 0.00 | 1.03 | 12.08 | 306.80 | -60.31 | 79.24 | 0.8667 | -329.0 | -263.2 | |
| 0.35 | 2.18 | 0.35 | 2.16 | 12.39 | 306.61 | -60.50 | 78.88 | 0.8683 | -248.8 | -215.7 | |
| 0.00 | 0.78 | 0.00 | 0.79 | 12.40 | 305.91 | -61.20 | 78.88 | 0.8742 | -403.0 | -289.3 | |
| 0.00 | 1.13 | 0.00 | 1.14 | 11.06 | 306.29 | -60.82 | 80.42 | 0.8710 | 591.0 | 544.5 | |
| 0.00 | 1.48 | 0.00 | 1.51 | 11.84 | 305.75 | -61.36 | 79.53 | 0.8755 | 615.0 | 545.2 | |
| 1.66 | 2.70 | 1.68 | 2.74 | 11.24 | 305.85 | -61.26 | 80.21 | 0.8747 | 464.2 | 342.1 | |
| 6.45 | 49.25 | 6.73 | 51.82 | 11.34 | 304.96 | -62.15 | 80.09 | 0.8819 | -619.8 | 70.3 | |
| 2.27 | -31.00 | 2.35 | -31.00 | 10.99 | 305.10 | -62.01 | 80.49 | 0.8809 | -570.2 | 999999 | |
| 4.10 | 7.93 | 4.40 | 8.53 | 13.37 | 304.03 | -63.08 | 77.80 | 0.8894 | -352.4 | -178.1 | |
| 0.00 | 1.05 | 0.00 | 1.14 | 13.49 | 303.63 | -63.48 | 77.67 | 0.8925 | -60.0 | -146.8 | |
| 2.27 | -31.00 | 2.40 | -31.00 | 11.03 | 304.49 | -62.62 | 80.44 | 0.8858 | 381.0 | 999999 | |
| 0.00 | 3.31 | 0.00 | 3.59 | 12.10 | 303.78 | -63.32 | 79.24 | 0.8913 | 366.0 | 316.9 | |
| 0.00 | 7.32 | 0.00 | 7.95 | 11.73 | 303.74 | -63.37 | 79.65 | 0.8917 | 597.0 | 515.3 | |
| 0.00 | 0.70 | 0.00 | 0.76 | 10.78 | 303.70 | -63.41 | 80.71 | 0.8920 | 291.0 | 349.4 | |
| 3.23 | 90.49 | 3.59 | 101.78 | 11.84 | 302.99 | -64.12 | 79.51 | 0.8974 | 512.3 | 422.9 | |
| 1.31 | 1.74 | 1.46 | 1.94 | 11.20 | 302.98 | -64.13 | 80.23 | 0.8975 | 450.5 | 413.8 | |
| 0.00 | 2.18 | 0.00 | 2.42 | 10.97 | 303.07 | -64.04 | 80.49 | 0.8968 | 671.0 | 614.2 | |
| 0.00 | 1.57 | 0.00 | 1.75 | 10.66 | 302.98 | -64.13 | 80.84 | 0.8975 | 561.0 | 494.7 | |
| 0.00 | 0.70 | 0.00 | 0.79 | 12.07 | 302.39 | -64.72 | 79.26 | 0.9018 | 573.0 | 537.6 | |
| 4.27 | -39.00 | 4.89 | -39.00 | 12.32 | 302.20 | -64.91 | 78.98 | 0.9033 | 515.1 | 999999 | |
| 0.00 | 2.70 | 0.00 | 3.15 | 13.35 | 301.69 | -65.42 | 77.84 | 0.9069 | 342.0 | 213.1 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 10.89 | 302.82 | -64.29 | 80.58 | 0.8987 | 470.0 | 459.1 | |
| 6.19 | -39.00 | 7.00 | -39.00 | 11.41 | 302.53 | -64.57 | 79.99 | 0.9008 | -337.5 | 999999 | |
| 3.66 | -39.00 | 4.17 | -39.00 | 11.64 | 302.36 | -64.75 | 79.74 | 0.9021 | 423.7 | 999999 | |
| 1.31 | -39.00 | 1.48 | -39.00 | 11.16 | 302.50 | -64.61 | 80.27 | 0.9011 | 213.9 | 999999 | |
| 2.53 | -39.00 | 2.93 | -39.00 | 11.50 | 301.84 | -65.27 | 79.88 | 0.9059 | 427.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.38 | 13.98 | 300.50 | -66.61 | 77.15 | 0.9153 | 602.0 | 535.5 | |
| 0.00 | 0.70 | 0.00 | 0.82 | 11.69 | 301.61 | -65.50 | 79.67 | 0.9076 | 389.0 | 339.8 | |
| 0.52 | 2.44 | 0.63 | 2.94 | 13.36 | 300.69 | -66.41 | 77.83 | 0.9139 | 367.7 | 399.1 | |
| 1.74 | 6.63 | 2.04 | 7.71 | 11.15 | 301.63 | -65.48 | 80.27 | 0.9075 | 472.7 | 358.8 | |
| 0.00 | 0.70 | 0.00 | 0.89 | 14.18 | 299.25 | -67.86 | 76.93 | 0.9236 | 342.0 | 383.6 | |
| 0.00 | 0.87 | 0.00 | 1.07 | 12.43 | 300.25 | -66.86 | 78.84 | 0.9170 | 483.0 | 470.5 | |
| 0.96 | 1.92 | 1.17 | 2.34 | 11.81 | 300.49 | -66.62 | 79.52 | 0.9154 | 593.2 | 577.4 | |
| 0.00 | 1.48 | 0.00 | 1.91 | 14.01 | 299.03 | -68.08 | 77.12 | 0.9250 | 391.0 | 326.7 | |
| 0.00 | 0.78 | 0.00 | 1.02 | 14.07 | 298.73 | -68.38 | 77.05 | 0.9269 | 96.0 | 139.4 | |
| 9.15 | 14.82 | 11.45 | 18.50 | 11.93 | 299.79 | -67.32 | 79.38 | 0.9201 | 438.2 | 411.6 | |
| 0.96 | 1.66 | 1.26 | 2.18 | 13.03 | 298.70 | -68.41 | 78.17 | 0.9272 | 284.9 | 123.2 | |
| 0.00 | 1.48 | 0.00 | 1.86 | 11.13 | 299.71 | -67.40 | 80.25 | 0.9208 | 340.0 | 292.2 | |
| 11.33 | 24.32 | 14.72 | 31.60 | 12.52 | 298.90 | -68.21 | 78.72 | 0.9259 | 463.3 | 247.9 | |
| 0.00 | 0.26 | 0.00 | 0.34 | 11.94 | 299.14 | -67.97 | 79.36 | 0.9244 | 221.0 | 221.0 | |
| 1.39 | 3.49 | 1.90 | 4.74 | 14.11 | 297.76 | -69.35 | 77.00 | 0.9330 | 301.6 | 213.9 | |
| 0.00 | 1.66 | 0.00 | 2.12 | 11.54 | 299.18 | -67.93 | 79.79 | 0.9242 | 109.0 | 134.2 | |
| 0.00 | 0.96 | 0.00 | 1.30 | 11.91 | 297.80 | -69.31 | 79.36 | 0.9330 | -151.0 | -106.5 | |
| 4.01 | 14.56 | 5.55 | 19.95 | 11.90 | 297.36 | -69.75 | 79.36 | 0.9356 | -432.5 | -185.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
