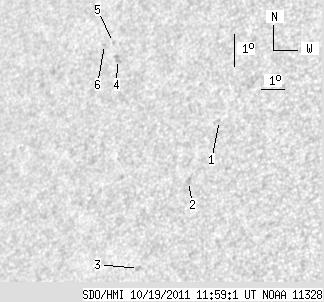

SDO HMI 2011-10-19 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.47 | 0.00 | 8.71 | 17.34 | 322.42 | -44.15 | 70.96 | 0.7058 | 563.0 | 511.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.64 | 17.83 | 325.67 | -40.89 | 69.32 | 0.6684 | 538.0 | 439.7 | |
| 0.00 | 2.70 | 0.00 | 1.81 | 15.91 | 324.89 | -41.67 | 72.35 | 0.6733 | 484.0 | 431.5 | |
| 0.00 | 2.70 | 0.00 | 1.83 | 13.17 | 323.45 | -43.12 | 76.64 | 0.6863 | 707.0 | 611.3 | |
| 0.00 | 3.84 | 0.00 | 2.77 | 19.40 | 320.73 | -45.83 | 68.46 | 0.7297 | 629.0 | 574.9 | |
| 0.00 | 0.96 | 0.00 | 0.70 | 19.91 | 320.36 | -46.20 | 67.87 | 0.7350 | 408.0 | 339.2 | |
| 0.00 | 1.31 | 0.00 | 0.96 | 19.82 | 319.97 | -46.59 | 68.09 | 0.7390 | 612.0 | 457.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
