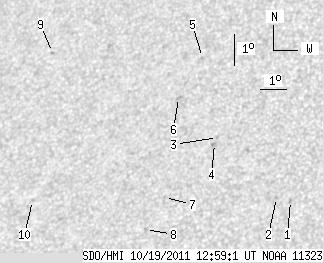

SDO HMI 2011-10-19 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.56 | 0.00 | 7.64 | 22.68 | 333.99 | -32.02 | 57.70 | 0.5802 | -671.2 | -556.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.86 | 21.25 | 338.43 | -27.58 | 56.94 | 0.5170 | -828.0 | -666.2 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 21.32 | 337.91 | -28.11 | 57.23 | 0.5240 | -665.0 | -541.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 23.08 | 335.31 | -30.70 | 56.26 | 0.5670 | -693.0 | -570.4 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 22.89 | 335.25 | -30.77 | 56.61 | 0.5666 | -771.0 | -706.1 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 25.56 | 334.05 | -31.96 | 53.33 | 0.5976 | -554.0 | -498.8 | |
| 0.00 | 2.09 | 0.00 | 1.29 | 24.26 | 333.50 | -32.52 | 55.67 | 0.5957 | -758.0 | -611.2 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 21.13 | 333.79 | -32.22 | 60.40 | 0.5742 | -615.0 | -479.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 20.11 | 333.32 | -32.69 | 62.34 | 0.5749 | -529.0 | -378.9 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 25.41 | 328.03 | -37.98 | 57.20 | 0.6636 | -693.0 | -546.8 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 20.77 | 328.74 | -37.27 | 63.61 | 0.6344 | -606.0 | -480.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
