SDO HMI 2011-10-19 16:02:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 23.36 | 1.56 | 15.48 | 18.36 | 323.67 | -40.67 | 68.48 | 0.6672 | 409.0 | 394.8 | |
|
previous
or next observation for the same group /

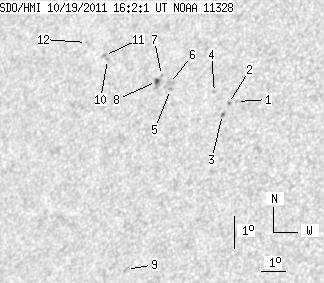

back to the solar disc SDO HMI 2011-10-19 16:02:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.72 | 18.45 | 326.71 | -37.63 | 67.29 | 0.6301 | 542.0 | 521.1 | |
| 0.00 | 1.31 | 0.00 | 0.83 | 18.37 | 326.41 | -37.93 | 67.53 | 0.6336 | -569.0 | -374.1 | |
| 0.35 | 1.83 | 0.22 | 1.17 | 18.02 | 326.26 | -38.08 | 68.12 | 0.6343 | -592.5 | -472.5 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 18.67 | 325.77 | -38.57 | 67.30 | 0.6425 | 415.0 | 415.6 | |
| 0.00 | 1.66 | 0.00 | 1.09 | 18.66 | 323.97 | -40.37 | 67.94 | 0.6644 | 787.0 | 636.4 | |
| 0.00 | 4.53 | 0.00 | 3.00 | 18.84 | 323.87 | -40.46 | 67.71 | 0.6661 | 279.0 | 329.0 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 19.06 | 323.47 | -40.86 | 67.51 | 0.6716 | 644.0 | 602.9 | |
| 2.00 | 4.62 | 1.34 | 3.08 | 18.86 | 323.32 | -41.01 | 67.85 | 0.6728 | 797.3 | 626.1 | |
| 0.00 | 2.09 | 0.00 | 1.37 | 13.12 | 323.52 | -40.82 | 76.33 | 0.6574 | 610.0 | 577.6 | |
| 0.00 | 1.31 | 0.00 | 0.90 | 19.40 | 321.06 | -43.28 | 67.77 | 0.7009 | 731.0 | 586.9 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 19.52 | 320.89 | -43.45 | 67.66 | 0.7031 | 735.0 | 615.6 | |
| 0.00 | 1.31 | 0.00 | 0.92 | 19.86 | 319.97 | -44.36 | 67.44 | 0.7144 | 618.0 | 494.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
