SDO HMI 2011-10-19 19:09:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.71 | 374.96 | 53.26 | 318.75 | 27.63 | 54.91 | 52.30 | 300.29 | 0.8138 | -847.9 | -217.0 | |
|
previous
or next observation for the same group /

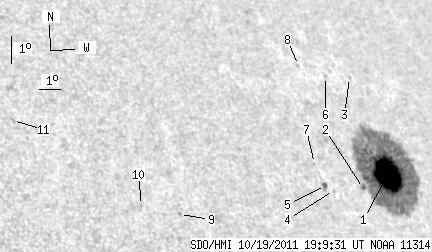

back to the solar disc SDO HMI 2011-10-19 19:09:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.05 | 362.42 | 50.31 | 309.04 | 27.60 | 55.12 | 52.51 | 300.18 | 0.8156 | -992.3 | -224.3 | |
| 1.57 | -1.00 | 1.29 | -1.00 | 27.25 | 53.57 | 50.96 | 300.18 | 0.8011 | -770.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.07 | 30.81 | 55.33 | 52.72 | 303.92 | 0.8257 | 199.0 | 301.4 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 27.29 | 52.02 | 49.41 | 300.69 | 0.7870 | -437.0 | -392.6 | |
| 2.09 | 3.31 | 1.66 | 2.63 | 27.48 | 51.72 | 49.11 | 301.01 | 0.7848 | -677.0 | -565.1 | |
| 0.00 | 1.31 | 0.00 | 1.11 | 30.94 | 54.06 | 51.45 | 304.45 | 0.8156 | -568.0 | -439.5 | |
| 0.00 | 0.87 | 0.00 | 0.69 | 28.21 | 51.60 | 48.99 | 301.95 | 0.7859 | -428.0 | -336.5 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 31.40 | 52.90 | 50.29 | 305.35 | 0.8073 | -619.0 | -533.7 | |
| 0.00 | 1.22 | 0.00 | 0.86 | 27.01 | 44.45 | 41.84 | 303.13 | 0.7120 | 631.0 | 603.8 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 27.39 | 42.93 | 40.31 | 304.35 | 0.6981 | 699.0 | 617.8 | |
| 0.00 | 2.00 | 0.00 | 1.34 | 30.43 | 38.64 | 36.03 | 310.74 | 0.6716 | 622.0 | 579.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
