groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11319 155.83 706.31 121.20 558.01 9.41 53.32 51.17 277.78 0.7764 -76.0 -95.7


previous   or   next   observation for the same group / back to the solar disc

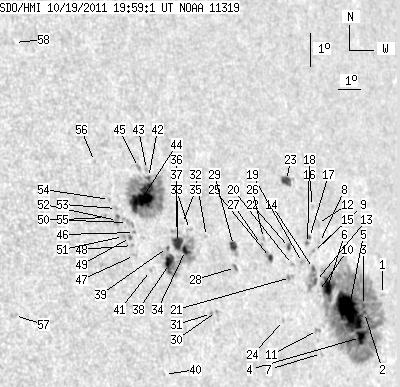

SDO HMI 2011-10-19 19:59:01 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.48 0.00 1.30 8.55 58.02 55.87 276.58 0.8262 228.0 196.5
2 1.13 395.27 0.96 331.99 8.09 56.97 54.81 276.00 0.8158 -150.4 -206.7
3 1.83 -2.00 1.56 -2.00 8.30 56.96 54.80 276.26 0.8157 -200.0 999999
4 6.45 -2.00 5.45 -2.00 7.37 56.62 54.46 275.10 0.8124 -775.1 999999
5 54.87 -2.00 45.86 -2.00 8.19 56.15 54.00 276.10 0.8075 -885.8 999999
6 9.06 -2.00 7.41 -2.00 8.98 55.24 53.08 277.08 0.7980 -933.0 999999
7 0.00 1.13 0.00 0.91 7.05 54.58 52.42 274.62 0.7914 -549.0 -445.9
8 0.00 1.22 0.00 1.00 10.34 55.14 52.99 278.79 0.7971 -372.0 -299.9
9 0.00 0.96 0.00 0.78 10.20 55.06 52.90 278.61 0.7962 -454.0 -389.1
10 0.00 0.61 0.00 0.49 8.90 54.77 52.61 276.97 0.7931 -661.0 -583.0
11 0.00 2.70 0.00 2.17 7.74 54.50 52.34 275.51 0.7904 -728.0 -661.2
12 0.00 3.40 0.00 2.78 10.92 55.19 53.03 279.51 0.7977 -148.0 -122.2
13 2.18 17.77 1.76 14.30 9.20 54.68 52.53 277.36 0.7922 -818.7 -758.5
14 1.65 -13.00 1.34 -13.00 9.60 54.67 52.51 277.86 0.7921 -703.8 999999
15 0.00 0.96 0.00 0.78 10.10 54.78 52.63 278.49 0.7933 -618.0 -556.7
16 0.00 1.31 0.00 1.07 11.44 55.07 52.91 280.17 0.7966 -571.0 -497.0
17 1.22 1.57 0.99 1.27 10.53 54.69 52.53 279.04 0.7924 -597.9 -627.5
18 0.00 1.57 0.00 1.26 10.36 54.54 52.39 278.83 0.7909 -883.0 -771.2
19 0.00 2.87 0.00 2.30 9.81 54.17 52.01 278.14 0.7868 -688.0 -640.9
20 0.00 1.65 0.00 1.31 9.79 53.67 51.52 278.12 0.7815 -731.0 -631.1
21 0.00 3.75 0.00 2.95 9.41 53.49 51.34 277.63 0.7795 -679.0 -705.1
22 2.18 2.96 1.72 2.34 10.31 53.64 51.49 278.78 0.7812 -690.1 -537.0
23 7.06 8.54 5.62 6.81 12.31 54.00 51.85 281.32 0.7858 625.9 250.7
24 0.00 1.22 0.00 0.95 8.16 52.91 50.76 276.02 0.7732 -677.0 -537.7
25 2.53 6.79 1.95 5.25 10.08 52.67 50.51 278.51 0.7706 -764.6 -686.6
26 0.00 1.39 0.00 1.07 10.67 52.46 50.31 279.28 0.7685 -690.0 -583.3
27 0.00 1.05 0.00 0.80 10.49 52.33 50.18 279.06 0.7670 -700.0 -683.6
28 0.61 2.18 0.46 1.63 9.90 50.98 48.83 278.32 0.7517 496.9 367.2
29 4.70 7.84 3.52 5.87 10.56 51.03 48.87 279.20 0.7525 443.1 -56.0
30 0.00 1.39 0.00 1.02 8.65 49.89 47.73 276.67 0.7389 442.0 383.1
31 0.00 1.05 0.00 0.76 8.61 49.65 47.50 276.61 0.7362 734.0 558.3
32 0.00 0.78 0.00 0.57 10.91 49.86 47.71 279.73 0.7393 -554.0 -439.8
33 0.00 2.00 0.00 1.45 11.17 49.15 47.00 280.13 0.7312 293.0 217.2
34 3.92 72.90 2.82 52.13 10.56 48.85 46.69 279.31 0.7273 416.6 156.9
35 0.00 1.05 0.00 0.75 11.37 48.88 46.73 280.43 0.7281 391.0 335.4
36 9.06 -34.00 6.48 -34.00 10.82 48.55 46.39 279.69 0.7238 744.1 999999
37 0.00 4.70 0.00 3.37 11.15 48.57 46.42 280.15 0.7243 407.0 427.6
38 9.23 -34.00 6.55 -34.00 10.22 48.08 45.92 278.88 0.7179 830.7 999999
39 0.35 -34.00 0.25 -34.00 10.70 48.08 45.93 279.56 0.7182 741.2 999999
40 0.00 0.87 0.00 0.61 6.94 47.35 45.20 274.27 0.7087 629.0 555.8
41 0.00 1.22 0.00 0.85 10.07 47.22 45.07 278.72 0.7075 585.0 543.7
42 1.57 118.98 1.11 83.70 12.85 47.71 45.55 282.58 0.7155 551.9 242.4
43 0.00 1.48 0.00 1.05 13.09 47.68 45.52 282.93 0.7154 451.0 315.9
44 34.75 -42.00 24.37 -42.00 12.27 47.32 45.16 281.81 0.7102 924.2 999999
45 0.00 2.26 0.00 1.59 13.17 47.35 45.19 283.08 0.7116 637.0 544.1
46 0.00 1.31 0.00 0.91 11.25 46.76 44.60 280.42 0.7026 556.0 506.5
47 0.00 1.92 0.00 1.33 10.56 46.63 44.47 279.45 0.7005 722.0 593.7
48 0.00 1.39 0.00 0.96 10.87 46.60 44.44 279.89 0.7004 773.0 566.6
49 1.48 1.74 1.02 1.20 11.11 46.56 44.40 280.24 0.7001 740.3 811.3
50 0.00 5.84 0.00 4.04 11.56 46.52 44.37 280.90 0.7000 726.0 631.2
51 0.00 2.00 0.00 1.38 11.16 46.27 44.12 280.34 0.6966 787.0 749.2
52 0.00 4.96 0.00 3.41 11.65 46.11 43.96 281.06 0.6950 880.0 776.8
53 0.00 1.57 0.00 1.08 12.01 46.14 43.99 281.58 0.6957 740.0 607.4
54 0.00 1.31 0.00 0.90 12.30 45.90 43.75 282.02 0.6931 692.0 569.5
55 0.00 1.22 0.00 0.83 11.77 45.63 43.47 281.29 0.6892 778.0 671.6
56 0.00 0.96 0.00 0.65 13.48 45.53 43.37 283.77 0.6899 559.0 439.8
57 0.00 2.26 0.00 1.45 9.08 41.49 39.34 277.59 0.6338 633.0 555.5
58 0.00 0.96 0.00 0.64 17.26 43.12 40.96 289.82 0.6678 624.0 483.1


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
