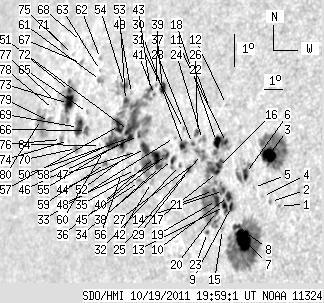

SDO HMI 2011-10-19 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.12 | 722.63 | 158.25 | 648.10 | 11.37 | 305.39 | -56.76 | 80.02 | 0.8325 | -31.8 | 14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.02 | 10.43 | 311.46 | -50.69 | 81.04 | 0.7727 | -678.0 | -629.3 | |
| 0.00 | 1.92 | 0.00 | 1.50 | 10.51 | 311.01 | -51.15 | 80.94 | 0.7776 | -550.0 | -513.4 | |
| 12.72 | 71.42 | 10.08 | 56.36 | 11.87 | 310.57 | -51.58 | 79.22 | 0.7828 | -831.2 | -449.9 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 10.63 | 310.59 | -51.57 | 80.80 | 0.7822 | -636.0 | -559.3 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 10.87 | 310.09 | -52.07 | 80.52 | 0.7876 | -507.0 | -480.0 | |
| 4.44 | 17.42 | 3.59 | 14.13 | 11.25 | 309.59 | -52.57 | 80.05 | 0.7929 | -707.9 | -411.9 | |
| 21.34 | 124.21 | 17.12 | 99.48 | 9.29 | 309.95 | -52.20 | 82.53 | 0.7888 | -1007.5 | -390.9 | |
| 0.96 | -7.00 | 0.77 | -7.00 | 9.65 | 309.57 | -52.58 | 82.07 | 0.7928 | -630.7 | 999999 | |
| 2.87 | 106.09 | 2.35 | 88.49 | 10.22 | 309.14 | -53.01 | 81.36 | 0.7974 | -913.1 | 31.0 | |
| 3.40 | -9.00 | 2.79 | -9.00 | 10.51 | 308.92 | -53.24 | 81.01 | 0.7997 | -775.9 | 999999 | |
| 1.57 | 22.30 | 1.31 | 18.67 | 12.10 | 308.38 | -53.77 | 79.03 | 0.8057 | 683.1 | -17.1 | |
| 0.00 | 1.22 | 0.00 | 1.02 | 13.23 | 308.03 | -54.12 | 77.65 | 0.8097 | -481.0 | -397.9 | |
| 4.96 | -9.00 | 4.09 | -9.00 | 10.19 | 308.79 | -53.36 | 81.40 | 0.8010 | -625.6 | 999999 | |
| 1.57 | -9.00 | 1.30 | -9.00 | 10.67 | 308.62 | -53.53 | 80.82 | 0.8028 | -608.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.00 | 9.51 | 308.85 | -53.31 | 82.26 | 0.8003 | -451.0 | -371.6 | |
| 2.35 | -9.00 | 1.96 | -9.00 | 11.36 | 308.18 | -53.98 | 79.97 | 0.8075 | -510.1 | 999999 | |
| 1.57 | -9.00 | 1.31 | -9.00 | 11.18 | 308.18 | -53.98 | 80.19 | 0.8075 | -385.9 | 999999 | |
| 5.84 | -11.00 | 4.91 | -11.00 | 12.09 | 307.86 | -54.29 | 79.07 | 0.8109 | -531.0 | 999999 | |
| 4.88 | -9.00 | 4.06 | -9.00 | 10.34 | 308.34 | -53.81 | 81.22 | 0.8056 | -408.1 | 999999 | |
| 1.65 | -9.00 | 1.37 | -9.00 | 10.02 | 308.42 | -53.73 | 81.63 | 0.8048 | -386.7 | 999999 | |
| 1.22 | -9.00 | 1.02 | -9.00 | 10.63 | 308.11 | -54.04 | 80.87 | 0.8080 | -289.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.97 | 13.07 | 307.18 | -54.98 | 77.89 | 0.8180 | -320.0 | -252.5 | |
| 1.05 | 1.39 | 0.87 | 1.17 | 9.36 | 308.11 | -54.04 | 82.45 | 0.8079 | -203.7 | -166.5 | |
| 0.00 | 3.75 | 0.00 | 3.21 | 12.09 | 307.12 | -55.04 | 79.09 | 0.8183 | -514.0 | -445.5 | |
| 0.00 | 10.28 | 0.00 | 8.80 | 11.64 | 307.20 | -54.96 | 79.64 | 0.8174 | 225.0 | 260.5 | |
| 1.83 | 3.14 | 1.58 | 2.71 | 12.31 | 306.78 | -55.38 | 78.84 | 0.8217 | -281.4 | -298.8 | |
| 0.00 | 1.57 | 0.00 | 1.35 | 11.38 | 306.95 | -55.20 | 79.97 | 0.8197 | 555.0 | 604.3 | |
| 0.00 | 2.09 | 0.00 | 1.81 | 11.93 | 306.63 | -55.53 | 79.31 | 0.8230 | -179.0 | -101.2 | |
| 2.09 | 5.31 | 1.81 | 4.60 | 11.12 | 306.65 | -55.50 | 80.30 | 0.8226 | 617.8 | 477.1 | |
| 4.96 | 7.66 | 4.36 | 6.72 | 11.84 | 306.17 | -55.99 | 79.44 | 0.8275 | 593.4 | 655.4 | |
| 0.00 | 1.22 | 0.00 | 1.07 | 12.34 | 306.00 | -56.15 | 78.83 | 0.8291 | -421.0 | -317.8 | |
| 0.00 | 1.65 | 0.00 | 1.45 | 11.23 | 306.13 | -56.02 | 80.18 | 0.8277 | 597.0 | 504.5 | |
| 0.00 | 1.22 | 0.00 | 1.08 | 12.04 | 305.60 | -56.55 | 79.21 | 0.8329 | 383.0 | 340.8 | |
| 2.96 | 5.57 | 2.63 | 4.94 | 11.38 | 305.70 | -56.45 | 80.01 | 0.8318 | 408.1 | 443.3 | |
| 1.83 | 183.09 | 1.64 | 173.00 | 11.47 | 305.39 | -56.76 | 79.90 | 0.8348 | 116.9 | 321.2 | |
| 2.00 | -35.00 | 1.80 | -35.00 | 11.43 | 305.24 | -56.92 | 79.95 | 0.8362 | -470.6 | 999999 | |
| 5.66 | 6.71 | 5.20 | 6.16 | 13.46 | 304.42 | -57.74 | 77.55 | 0.8443 | -522.7 | -301.3 | |
| 0.61 | -35.00 | 0.55 | -35.00 | 11.12 | 305.11 | -57.05 | 80.33 | 0.8374 | -441.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.89 | 13.49 | 304.06 | -58.10 | 77.53 | 0.8476 | -183.0 | -180.0 | |
| 7.06 | -35.00 | 6.41 | -35.00 | 11.39 | 304.74 | -57.41 | 80.01 | 0.8409 | -652.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.89 | 13.22 | 304.05 | -58.11 | 77.85 | 0.8476 | -266.0 | -259.3 | |
| 0.00 | 2.79 | 0.00 | 2.53 | 10.60 | 304.75 | -57.40 | 80.94 | 0.8407 | -216.0 | -122.1 | |
| 2.18 | -35.00 | 2.04 | -35.00 | 13.35 | 303.76 | -58.39 | 77.71 | 0.8502 | -256.4 | 999999 | |
| 7.93 | -35.00 | 7.34 | -35.00 | 11.58 | 304.10 | -58.05 | 79.79 | 0.8467 | 576.2 | 999999 | |
| 0.00 | 2.79 | 0.00 | 2.58 | 10.58 | 304.07 | -58.08 | 80.98 | 0.8469 | 763.0 | 577.7 | |
| 1.74 | -35.00 | 1.64 | -35.00 | 11.93 | 303.57 | -58.58 | 79.38 | 0.8516 | 696.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.81 | 11.46 | 303.68 | -58.48 | 79.94 | 0.8506 | 471.0 | 483.1 | |
| 0.00 | 1.31 | 0.00 | 1.22 | 10.91 | 303.74 | -58.42 | 80.58 | 0.8500 | 159.0 | 237.1 | |
| 0.00 | 1.48 | 0.00 | 1.43 | 13.14 | 302.70 | -59.45 | 77.99 | 0.8595 | 385.0 | 331.9 | |
| 1.74 | -35.00 | 1.66 | -35.00 | 11.84 | 303.13 | -59.02 | 79.50 | 0.8555 | 763.9 | 999999 | |
| 3.66 | -35.00 | 3.49 | -35.00 | 12.03 | 302.94 | -59.21 | 79.27 | 0.8572 | 737.9 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.66 | 11.29 | 303.14 | -59.01 | 80.14 | 0.8554 | 685.0 | 592.0 | |
| 2.70 | -35.00 | 2.62 | -35.00 | 12.90 | 302.43 | -59.72 | 78.27 | 0.8618 | 641.4 | 999999 | |
| 3.22 | 10.89 | 3.15 | 10.69 | 13.31 | 302.21 | -59.95 | 77.80 | 0.8638 | -356.1 | 93.8 | |
| 1.31 | -35.00 | 1.26 | -35.00 | 11.68 | 302.71 | -59.45 | 79.69 | 0.8592 | 250.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.67 | 10.73 | 302.97 | -59.19 | 80.80 | 0.8569 | 537.0 | 436.0 | |
| 9.32 | -35.00 | 9.06 | -35.00 | 12.14 | 302.36 | -59.80 | 79.16 | 0.8623 | 685.6 | 999999 | |
| 8.45 | -35.00 | 8.27 | -35.00 | 11.57 | 302.08 | -60.08 | 79.83 | 0.8647 | 651.3 | 999999 | |
| 0.00 | 3.40 | 0.00 | 3.34 | 10.95 | 301.92 | -60.23 | 80.54 | 0.8660 | 148.0 | 253.8 | |
| 0.00 | 0.61 | 0.00 | 0.60 | 11.29 | 301.68 | -60.48 | 80.15 | 0.8681 | 434.0 | 363.3 | |
| 0.00 | 4.44 | 0.00 | 4.54 | 13.37 | 300.66 | -61.49 | 77.77 | 0.8768 | 714.0 | 630.1 | |
| 0.00 | 1.31 | 0.00 | 1.35 | 14.02 | 300.37 | -61.79 | 77.04 | 0.8793 | 618.0 | 554.5 | |
| 0.00 | 0.96 | 0.00 | 0.98 | 13.66 | 300.53 | -61.62 | 77.44 | 0.8779 | 600.0 | 582.9 | |
| 0.00 | 0.44 | 0.00 | 0.43 | 11.45 | 301.43 | -60.72 | 79.96 | 0.8702 | 169.0 | 174.6 | |
| 0.00 | 1.48 | 0.00 | 1.53 | 12.36 | 300.25 | -61.91 | 78.93 | 0.8800 | 498.0 | 445.6 | |
| 2.35 | 18.55 | 2.42 | 19.38 | 11.82 | 300.40 | -61.76 | 79.54 | 0.8788 | 680.7 | 472.6 | |
| 0.00 | 3.40 | 0.00 | 3.64 | 13.77 | 299.22 | -62.94 | 77.35 | 0.8884 | 500.0 | 451.0 | |
| 0.00 | 0.61 | 0.00 | 0.66 | 14.41 | 298.89 | -63.26 | 76.63 | 0.8910 | 267.0 | 280.7 | |
| 9.15 | -66.00 | 9.58 | -66.00 | 11.87 | 299.86 | -62.30 | 79.49 | 0.8832 | 557.2 | 999999 | |
| 0.78 | 3.22 | 0.82 | 3.37 | 11.24 | 299.97 | -62.19 | 80.20 | 0.8823 | 505.4 | 397.0 | |
| 0.00 | 0.87 | 0.00 | 0.96 | 13.98 | 298.49 | -63.67 | 77.12 | 0.8940 | 141.0 | 96.4 | |
| 2.00 | 38.85 | 2.17 | 42.08 | 12.91 | 298.80 | -63.36 | 78.32 | 0.8915 | 435.1 | 183.4 | |
| 10.19 | -72.00 | 11.01 | -72.00 | 12.52 | 298.91 | -63.25 | 78.76 | 0.8907 | 613.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.21 | 11.43 | 299.36 | -62.79 | 79.98 | 0.8871 | 289.0 | 215.5 | |
| 0.00 | 3.40 | 0.00 | 3.83 | 14.19 | 297.67 | -64.48 | 76.90 | 0.9002 | 462.0 | 326.4 | |
| 0.00 | 3.66 | 0.00 | 3.95 | 11.42 | 298.89 | -63.26 | 79.99 | 0.8908 | 195.0 | 85.4 | |
| 0.00 | 2.09 | 0.00 | 2.33 | 12.50 | 298.01 | -64.15 | 78.78 | 0.8976 | 208.0 | 175.7 | |
| 0.00 | 1.31 | 0.00 | 1.46 | 12.26 | 297.98 | -64.18 | 79.05 | 0.8978 | 251.0 | 184.2 | |
| 1.57 | 2.87 | 1.76 | 3.22 | 11.88 | 297.86 | -64.29 | 79.47 | 0.8987 | 258.2 | 260.1 | |
| 4.44 | 20.73 | 5.08 | 23.63 | 11.89 | 297.28 | -64.87 | 79.45 | 0.9030 | -423.7 | -248.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
