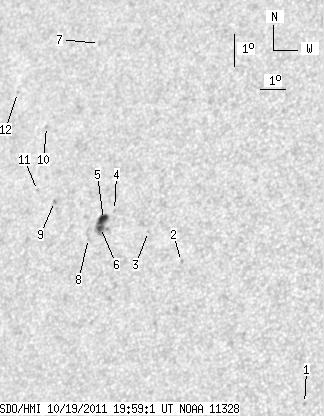

SDO HMI 2011-10-19 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.58 | 30.47 | 6.22 | 19.89 | 19.42 | 323.00 | -39.15 | 66.45 | 0.6516 | 632.2 | 523.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.70 | 13.94 | 331.88 | -30.27 | 72.01 | 0.5165 | 680.0 | 561.6 | |
| 0.00 | 1.48 | 0.00 | 0.92 | 18.00 | 326.56 | -35.59 | 67.18 | 0.6028 | -743.0 | -541.9 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 18.85 | 325.07 | -37.09 | 66.46 | 0.6248 | 601.0 | 485.3 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 19.41 | 323.55 | -38.61 | 66.20 | 0.6455 | 695.0 | 507.6 | |
| 6.53 | 18.12 | 4.24 | 11.76 | 19.11 | 323.19 | -38.97 | 66.79 | 0.6489 | 886.6 | 714.9 | |
| 3.05 | -5.00 | 1.98 | -5.00 | 18.86 | 323.13 | -39.02 | 67.18 | 0.6487 | 827.5 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.13 | 24.52 | 321.19 | -40.96 | 59.83 | 0.6922 | 594.0 | 435.6 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 18.50 | 322.75 | -39.41 | 67.86 | 0.6523 | 601.0 | 520.2 | |
| 0.00 | 1.48 | 0.00 | 0.99 | 19.54 | 321.03 | -41.13 | 66.91 | 0.6762 | 785.0 | 665.3 | |
| 0.00 | 1.39 | 0.00 | 0.96 | 21.81 | 319.92 | -42.24 | 64.07 | 0.6963 | 648.0 | 565.9 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 19.83 | 320.21 | -41.94 | 66.76 | 0.6866 | 614.0 | 500.2 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 22.78 | 318.26 | -43.89 | 63.33 | 0.7177 | 381.0 | 314.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
