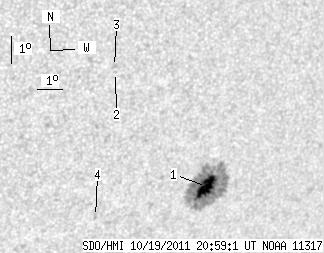

SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.99 | 131.28 | 13.84 | 95.43 | -26.85 | 36.81 | 35.21 | 224.69 | 0.7336 | 931.3 | 306.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.99 | 125.96 | 13.84 | 91.85 | -26.93 | 36.98 | 35.38 | 224.74 | 0.7357 | 1026.2 | 303.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -22.73 | 32.14 | 30.53 | 225.45 | 0.6599 | 573.0 | 398.5 | |
| 0.00 | 2.18 | 0.00 | 1.43 | -22.52 | 32.05 | 30.45 | 225.61 | 0.6573 | 636.0 | 495.3 | |
| 0.00 | 2.18 | 0.00 | 1.52 | -27.75 | 32.79 | 31.18 | 220.50 | 0.7079 | 272.0 | 204.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
