SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.03 | 0.00 | 8.48 | 23.71 | 330.88 | -30.72 | 55.11 | 0.5689 | -382.2 | -294.8 | |
|
previous
or next observation for the same group /

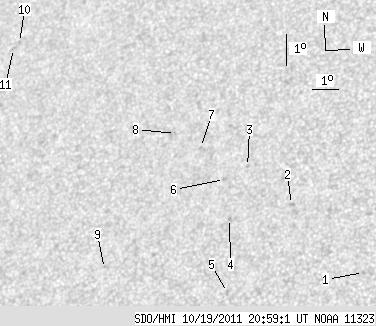

back to the solar disc SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.78 | 20.88 | 338.07 | -23.53 | 53.91 | 0.4636 | -843.0 | -601.6 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 22.89 | 335.13 | -26.47 | 53.18 | 0.5150 | -785.0 | -650.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 24.00 | 333.27 | -28.33 | 52.96 | 0.5453 | -729.0 | -629.2 | |
| 0.00 | 1.39 | 0.00 | 0.82 | 22.35 | 332.99 | -28.62 | 55.88 | 0.5372 | -868.0 | -650.0 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 20.07 | 333.40 | -28.21 | 59.49 | 0.5174 | -663.0 | -532.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 23.56 | 332.52 | -29.08 | 54.27 | 0.5510 | -748.0 | -629.5 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 24.52 | 331.37 | -30.23 | 53.65 | 0.5710 | -522.0 | -467.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 24.92 | 330.30 | -31.30 | 53.83 | 0.5859 | 183.0 | 144.8 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 20.59 | 328.73 | -32.88 | 61.65 | 0.5796 | -270.0 | -360.2 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 27.47 | 323.08 | -38.53 | 54.65 | 0.6799 | 551.0 | 384.9 | |
| 0.00 | 2.09 | 0.00 | 1.41 | 27.26 | 322.90 | -38.70 | 55.02 | 0.6807 | 490.0 | 436.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
