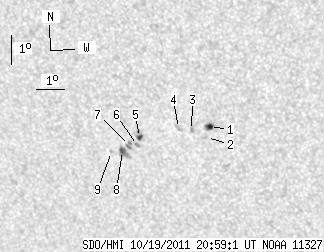

SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.50 | 30.05 | 5.92 | 18.79 | -21.20 | 334.76 | -26.84 | 136.31 | 0.6113 | -126.5 | -267.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.40 | 4.88 | 2.07 | 2.98 | -20.65 | 336.91 | -24.69 | 137.93 | 0.5856 | 832.4 | 579.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -21.02 | 336.74 | -24.86 | 138.19 | 0.5909 | 549.0 | 486.7 | |
| 0.00 | 1.74 | 0.00 | 1.07 | -20.81 | 336.25 | -25.35 | 137.39 | 0.5935 | 856.0 | 714.4 | |
| 0.00 | 3.05 | 0.00 | 1.88 | -20.76 | 335.80 | -25.81 | 136.84 | 0.5973 | 682.0 | 439.4 | |
| 2.44 | 4.36 | 1.53 | 2.73 | -21.13 | 334.33 | -27.27 | 135.75 | 0.6148 | -886.8 | -777.2 | |
| 0.00 | 2.35 | 0.00 | 1.48 | -21.40 | 334.20 | -27.40 | 135.96 | 0.6186 | -905.0 | -762.3 | |
| 0.00 | 3.83 | 0.00 | 2.42 | -21.41 | 333.91 | -27.69 | 135.68 | 0.6215 | -805.0 | -750.3 | |
| 3.66 | 8.01 | 2.32 | 5.08 | -21.60 | 333.62 | -27.98 | 135.61 | 0.6259 | -762.4 | -593.1 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -21.65 | 333.20 | -28.40 | 135.27 | 0.6303 | -482.0 | -407.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
