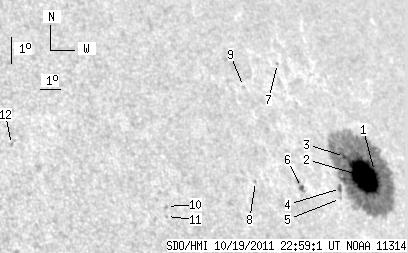

SDO HMI 2011-10-19 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.25 | 356.59 | 54.30 | 316.39 | 27.66 | 54.77 | 54.27 | 299.84 | 0.8308 | -732.5 | -216.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 340.04 | 1.18 | 302.99 | 27.73 | 55.70 | 55.20 | 299.69 | 0.8388 | 81.2 | -217.5 | |
| 54.28 | -1.00 | 48.30 | -1.00 | 27.62 | 54.97 | 54.47 | 299.73 | 0.8325 | -860.2 | 999999 | |
| 1.13 | -1.00 | 1.00 | -1.00 | 28.32 | 54.39 | 53.89 | 300.70 | 0.8292 | -786.3 | 999999 | |
| 2.53 | 3.31 | 2.17 | 2.84 | 27.34 | 53.45 | 52.95 | 299.76 | 0.8190 | -687.0 | -602.0 | |
| 0.00 | 0.96 | 0.00 | 0.82 | 27.03 | 53.24 | 52.74 | 299.44 | 0.8164 | -458.0 | -452.6 | |
| 2.00 | 5.14 | 1.65 | 4.24 | 27.52 | 51.43 | 50.93 | 300.52 | 0.8016 | -708.6 | -554.7 | |
| 0.00 | 1.13 | 0.00 | 0.99 | 31.55 | 53.01 | 52.51 | 304.84 | 0.8261 | -412.0 | -316.8 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 27.87 | 49.24 | 48.74 | 301.61 | 0.7826 | -541.0 | -446.0 | |
| 0.00 | 1.39 | 0.00 | 1.16 | 30.94 | 50.63 | 50.13 | 304.86 | 0.8046 | -471.0 | -361.6 | |
| 0.00 | 1.22 | 0.00 | 0.89 | 27.36 | 44.59 | 44.09 | 302.65 | 0.7362 | 611.0 | 515.9 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 27.04 | 44.43 | 43.93 | 302.30 | 0.7334 | 558.0 | 456.2 | |
| 0.00 | 1.66 | 0.00 | 1.13 | 29.75 | 38.71 | 38.21 | 308.56 | 0.6891 | 709.0 | 574.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
