SDO HMI 2011-10-19 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 194.90 | 750.38 | 170.79 | 644.99 | 11.44 | 305.48 | -55.02 | 79.90 | 0.8160 | 18.7 | 24.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

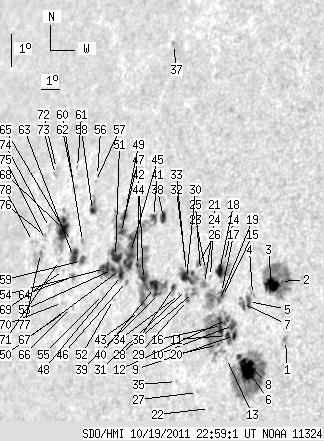

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.40 | 0.00 | 2.55 | 10.25 | 311.58 | -48.92 | 81.20 | 0.7529 | -618.0 | -602.4 | |
| 0.44 | 73.97 | 0.33 | 56.42 | 11.99 | 310.95 | -49.55 | 78.94 | 0.7608 | -913.4 | -451.2 | |
| 14.11 | -2.00 | 10.81 | -2.00 | 11.84 | 310.56 | -49.94 | 79.16 | 0.7650 | -862.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.63 | 11.51 | 309.73 | -50.77 | 79.64 | 0.7739 | -678.0 | -537.2 | |
| 4.70 | 5.40 | 3.67 | 4.22 | 11.29 | 309.59 | -50.91 | 79.93 | 0.7753 | -688.8 | -528.9 | |
| 20.91 | 117.97 | 16.18 | 91.18 | 9.26 | 309.99 | -50.50 | 82.54 | 0.7704 | -1011.8 | -412.1 | |
| 0.00 | 6.27 | 0.00 | 4.93 | 11.21 | 309.32 | -51.18 | 80.05 | 0.7782 | -539.0 | -487.8 | |
| 2.27 | -6.00 | 1.77 | -6.00 | 9.62 | 309.49 | -51.01 | 82.09 | 0.7760 | -504.8 | 999999 | |
| 2.70 | 90.00 | 2.13 | 72.07 | 10.23 | 309.16 | -51.34 | 81.31 | 0.7796 | -903.9 | -80.4 | |
| 5.23 | -9.00 | 4.13 | -9.00 | 10.52 | 309.00 | -51.50 | 80.95 | 0.7815 | -750.6 | 999999 | |
| 2.18 | -9.00 | 1.73 | -9.00 | 10.20 | 308.82 | -51.67 | 81.35 | 0.7833 | -682.3 | 999999 | |
| 1.22 | -9.00 | 0.97 | -9.00 | 10.67 | 308.66 | -51.83 | 80.75 | 0.7851 | -685.1 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.45 | 9.52 | 308.93 | -51.57 | 82.23 | 0.7821 | -430.0 | -378.9 | |
| 0.00 | 1.05 | 0.00 | 0.84 | 12.39 | 308.11 | -52.39 | 78.60 | 0.7915 | -117.0 | -93.5 | |
| 1.13 | 28.49 | 0.91 | 23.08 | 11.34 | 308.30 | -52.20 | 79.92 | 0.7892 | -676.8 | 158.1 | |
| 8.54 | -9.00 | 6.83 | -9.00 | 10.48 | 308.46 | -52.04 | 81.01 | 0.7872 | -467.3 | 999999 | |
| 1.74 | -15.00 | 1.40 | -15.00 | 11.46 | 308.22 | -52.28 | 79.77 | 0.7900 | -548.1 | 999999 | |
| 6.10 | 18.73 | 4.94 | 15.09 | 12.10 | 307.94 | -52.56 | 78.97 | 0.7932 | -552.7 | 136.1 | |
| 1.31 | -15.00 | 1.05 | -15.00 | 11.21 | 308.18 | -52.32 | 80.09 | 0.7903 | -399.8 | 999999 | |
| 0.61 | -9.00 | 0.49 | -9.00 | 9.90 | 308.45 | -52.05 | 81.74 | 0.7872 | -348.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.07 | 11.89 | 307.54 | -52.95 | 79.26 | 0.7972 | -419.0 | -351.7 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 7.97 | 308.39 | -52.10 | 84.20 | 0.7878 | 376.0 | 308.7 | |
| 0.00 | 4.62 | 0.00 | 3.80 | 12.08 | 307.23 | -53.26 | 79.03 | 0.8005 | -641.0 | -450.0 | |
| 0.00 | 4.97 | 0.00 | 4.08 | 11.66 | 307.30 | -53.20 | 79.56 | 0.7996 | 148.0 | 171.7 | |
| 0.00 | 0.87 | 0.00 | 0.72 | 12.03 | 306.99 | -53.51 | 79.11 | 0.8029 | -353.0 | -324.5 | |
| 0.00 | 4.18 | 0.00 | 3.47 | 12.23 | 306.83 | -53.67 | 78.86 | 0.8047 | -388.0 | -249.6 | |
| 0.00 | 0.61 | 0.00 | 0.50 | 8.40 | 307.72 | -52.78 | 83.65 | 0.7949 | -481.0 | -403.7 | |
| 0.00 | 4.01 | 0.00 | 3.32 | 11.35 | 306.82 | -53.68 | 79.96 | 0.8045 | 826.0 | 646.1 | |
| 1.39 | 3.48 | 1.16 | 2.91 | 11.09 | 306.58 | -53.92 | 80.29 | 0.8068 | 572.6 | 613.8 | |
| 8.63 | 20.21 | 7.23 | 16.93 | 11.74 | 306.35 | -54.15 | 79.49 | 0.8094 | 794.7 | 388.2 | |
| 0.00 | 1.57 | 0.00 | 1.31 | 11.41 | 306.44 | -54.06 | 79.90 | 0.8083 | 669.0 | 588.6 | |
| 0.61 | -30.00 | 0.51 | -30.00 | 11.95 | 306.29 | -54.21 | 79.24 | 0.8100 | -175.1 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.40 | 12.38 | 306.05 | -54.45 | 78.71 | 0.8126 | -477.0 | -325.6 | |
| 0.00 | 1.48 | 0.00 | 1.25 | 11.24 | 306.12 | -54.38 | 80.12 | 0.8115 | 462.0 | 454.4 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 8.65 | 306.60 | -53.90 | 83.33 | 0.8065 | -369.0 | -325.9 | |
| 2.53 | 4.79 | 2.15 | 4.08 | 11.42 | 305.75 | -54.74 | 79.91 | 0.8152 | 563.4 | 443.3 | |
| 0.00 | 3.22 | 0.00 | 2.98 | 18.65 | 302.83 | -57.67 | 71.41 | 0.8468 | -107.0 | -146.6 | |
| 5.05 | 7.14 | 4.44 | 6.27 | 13.45 | 304.56 | -55.94 | 77.47 | 0.8275 | -584.1 | -315.2 | |
| 0.35 | 80.41 | 0.30 | 70.88 | 11.18 | 305.07 | -55.43 | 80.21 | 0.8219 | -567.5 | 277.6 | |
| 9.15 | -39.00 | 7.98 | -39.00 | 11.34 | 304.75 | -55.74 | 80.03 | 0.8250 | -627.0 | 999999 | |
| 1.13 | 141.14 | 1.01 | 129.83 | 13.44 | 304.01 | -56.49 | 77.52 | 0.8328 | -506.3 | 346.8 | |
| 2.27 | -39.00 | 2.01 | -39.00 | 11.53 | 304.09 | -56.41 | 79.81 | 0.8314 | 674.6 | 999999 | |
| 0.00 | 4.36 | 0.00 | 3.85 | 10.57 | 304.16 | -56.34 | 80.97 | 0.8307 | 554.0 | 500.5 | |
| 1.31 | -39.00 | 1.17 | -39.00 | 11.92 | 303.63 | -56.86 | 79.36 | 0.8358 | 768.3 | 999999 | |
| 21.87 | -41.00 | 19.89 | -41.00 | 12.27 | 303.12 | -57.38 | 78.95 | 0.8407 | 615.7 | 999999 | |
| 1.39 | 2.00 | 1.26 | 1.82 | 11.40 | 303.18 | -57.32 | 79.99 | 0.8400 | 541.8 | 623.6 | |
| 3.48 | -41.00 | 3.23 | -41.00 | 13.31 | 302.40 | -58.10 | 77.74 | 0.8476 | -391.5 | 999999 | |
| 2.88 | -41.00 | 2.63 | -41.00 | 11.55 | 302.84 | -57.65 | 79.81 | 0.8431 | -311.6 | 999999 | |
| 1.74 | -41.00 | 1.62 | -41.00 | 12.83 | 302.40 | -58.09 | 78.31 | 0.8474 | 690.5 | 999999 | |
| 1.74 | -41.00 | 1.60 | -41.00 | 11.73 | 302.73 | -57.77 | 79.61 | 0.8442 | 349.2 | 999999 | |
| 9.24 | -41.00 | 8.57 | -41.00 | 12.09 | 302.32 | -58.18 | 79.19 | 0.8480 | 695.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.64 | 10.81 | 302.62 | -57.88 | 80.70 | 0.8451 | 486.0 | 442.5 | |
| 1.22 | -41.00 | 1.13 | -41.00 | 11.69 | 302.28 | -58.22 | 79.66 | 0.8483 | 816.9 | 999999 | |
| 8.02 | -41.00 | 7.54 | -41.00 | 11.69 | 301.87 | -58.63 | 79.67 | 0.8520 | 548.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.73 | 10.91 | 302.01 | -58.49 | 80.58 | 0.8507 | -144.0 | -79.0 | |
| 0.00 | 0.96 | 0.00 | 0.94 | 14.40 | 300.31 | -60.18 | 76.55 | 0.8661 | 594.0 | 528.4 | |
| 0.00 | 1.13 | 0.00 | 1.12 | 14.21 | 300.27 | -60.23 | 76.77 | 0.8664 | 648.0 | 550.2 | |
| 3.22 | 8.97 | 3.15 | 8.79 | 13.34 | 300.46 | -60.04 | 77.77 | 0.8646 | 706.6 | 671.0 | |
| 4.53 | 5.31 | 4.44 | 5.20 | 11.81 | 300.44 | -60.06 | 79.54 | 0.8646 | 667.7 | 577.4 | |
| 0.00 | 2.61 | 0.00 | 2.57 | 12.37 | 300.23 | -60.27 | 78.89 | 0.8664 | 408.0 | 384.9 | |
| 0.00 | 1.22 | 0.00 | 1.25 | 14.53 | 298.97 | -61.52 | 76.44 | 0.8773 | 367.0 | 329.6 | |
| 0.00 | 2.18 | 0.00 | 2.22 | 13.90 | 299.08 | -61.42 | 77.17 | 0.8763 | 518.0 | 496.3 | |
| 9.84 | 12.20 | 9.80 | 12.14 | 11.89 | 299.85 | -60.65 | 79.46 | 0.8696 | 570.4 | 485.1 | |
| 2.09 | 3.57 | 2.07 | 3.54 | 11.30 | 300.07 | -60.43 | 80.14 | 0.8677 | 528.0 | 421.6 | |
| 0.00 | 1.13 | 0.00 | 1.14 | 12.32 | 299.56 | -60.94 | 78.96 | 0.8721 | 450.0 | 386.1 | |
| 0.00 | 0.52 | 0.00 | 0.51 | 10.37 | 300.25 | -60.24 | 81.21 | 0.8661 | -78.0 | -100.7 | |
| 0.00 | 0.44 | 0.00 | 0.43 | 10.22 | 299.93 | -60.57 | 81.37 | 0.8689 | -134.0 | -162.8 | |
| 16.20 | 38.68 | 16.62 | 39.79 | 12.63 | 298.92 | -61.58 | 78.61 | 0.8774 | 596.4 | 148.2 | |
| 0.00 | 1.05 | 0.00 | 1.06 | 11.42 | 299.39 | -61.11 | 79.99 | 0.8734 | 277.0 | 256.7 | |
| 0.00 | 0.78 | 0.00 | 0.79 | 10.47 | 299.66 | -60.84 | 81.08 | 0.8712 | 561.0 | 505.8 | |
| 0.00 | 2.35 | 0.00 | 2.40 | 11.70 | 299.03 | -61.47 | 79.68 | 0.8764 | 189.0 | 177.8 | |
| 0.00 | 1.92 | 0.00 | 2.05 | 14.39 | 297.64 | -62.86 | 76.64 | 0.8878 | 339.0 | 263.8 | |
| 0.00 | 2.00 | 0.00 | 2.14 | 14.21 | 297.67 | -62.83 | 76.85 | 0.8876 | 527.0 | 330.3 | |
| 0.00 | 2.27 | 0.00 | 2.39 | 12.61 | 298.00 | -62.50 | 78.64 | 0.8848 | 206.0 | 165.6 | |
| 0.00 | 1.66 | 0.00 | 1.75 | 12.24 | 297.89 | -62.60 | 79.07 | 0.8856 | 223.0 | 133.1 | |
| 0.00 | 0.96 | 0.00 | 1.02 | 12.35 | 297.78 | -62.72 | 78.94 | 0.8866 | 141.0 | 138.3 | |
| 1.83 | 13.07 | 1.94 | 13.94 | 11.80 | 297.74 | -62.76 | 79.56 | 0.8869 | 280.7 | -33.3 | |
| 0.00 | 1.13 | 0.00 | 1.23 | 12.11 | 297.07 | -63.43 | 79.22 | 0.8921 | -394.0 | -357.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
