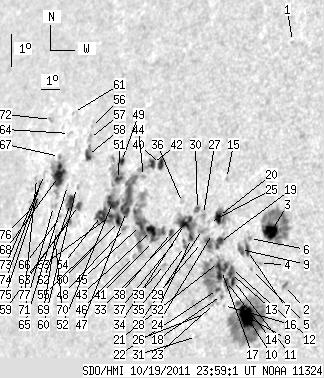

SDO HMI 2011-10-19 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.98 | 725.59 | 158.85 | 614.17 | 11.40 | 305.50 | -54.45 | 79.93 | 0.8102 | -34.9 | 43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.88 | 17.60 | 309.83 | -50.12 | 71.69 | 0.7727 | -506.0 | -442.6 | |
| 0.00 | 2.44 | 0.00 | 1.81 | 10.29 | 311.57 | -48.38 | 81.13 | 0.7467 | -813.0 | -695.3 | |
| 13.68 | 70.49 | 10.36 | 53.20 | 11.82 | 310.58 | -49.37 | 79.15 | 0.7587 | -873.2 | -457.2 | |
| 0.00 | 1.57 | 0.00 | 1.19 | 10.86 | 310.28 | -49.66 | 80.43 | 0.7615 | -604.0 | -551.7 | |
| 0.00 | 0.96 | 0.00 | 0.73 | 10.65 | 309.95 | -49.99 | 80.71 | 0.7651 | -547.0 | -464.2 | |
| 0.00 | 1.83 | 0.00 | 1.41 | 11.57 | 309.64 | -50.31 | 79.53 | 0.7689 | -590.0 | -541.5 | |
| 3.83 | 6.10 | 2.96 | 4.71 | 11.21 | 309.63 | -50.31 | 80.01 | 0.7688 | -714.1 | -502.7 | |
| 21.96 | 121.12 | 16.79 | 92.51 | 9.24 | 310.01 | -49.94 | 82.56 | 0.7641 | -1012.9 | -406.5 | |
| 0.00 | 5.05 | 0.00 | 3.93 | 11.21 | 309.30 | -50.65 | 80.02 | 0.7725 | -529.0 | -472.0 | |
| 2.09 | -8.00 | 1.61 | -8.00 | 9.60 | 309.56 | -50.39 | 82.10 | 0.7692 | -546.4 | 999999 | |
| 2.35 | 83.65 | 1.83 | 66.18 | 10.27 | 309.18 | -50.77 | 81.25 | 0.7735 | -924.9 | -66.2 | |
| 1.48 | -11.00 | 1.16 | -11.00 | 10.61 | 309.00 | -50.95 | 80.80 | 0.7755 | -712.1 | 999999 | |
| 1.57 | -11.00 | 1.23 | -11.00 | 10.46 | 308.99 | -50.96 | 81.00 | 0.7756 | -858.6 | 999999 | |
| 2.61 | -11.00 | 2.05 | -11.00 | 10.21 | 308.85 | -51.10 | 81.33 | 0.7770 | -701.0 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.39 | 13.27 | 308.05 | -51.90 | 77.44 | 0.7870 | -537.0 | -422.6 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 9.49 | 308.86 | -51.09 | 82.26 | 0.7768 | -488.0 | -410.6 | |
| 11.24 | -11.00 | 8.87 | -11.00 | 10.52 | 308.54 | -51.41 | 80.94 | 0.7805 | -509.4 | 999999 | |
| 0.00 | 2.88 | 0.00 | 2.26 | 9.78 | 308.70 | -51.24 | 81.89 | 0.7785 | -583.0 | -504.3 | |
| 5.75 | 19.52 | 4.57 | 15.59 | 11.34 | 308.24 | -51.71 | 79.89 | 0.7840 | -528.6 | 182.8 | |
| 7.06 | 19.95 | 5.64 | 15.89 | 12.11 | 307.98 | -51.96 | 78.92 | 0.7870 | -580.5 | 159.4 | |
| 0.44 | -11.00 | 0.35 | -11.00 | 10.75 | 308.34 | -51.61 | 80.65 | 0.7827 | 122.6 | 999999 | |
| 1.92 | -11.00 | 1.51 | -11.00 | 9.94 | 308.47 | -51.47 | 81.68 | 0.7811 | -434.4 | 999999 | |
| 0.00 | 3.14 | 0.00 | 2.48 | 9.52 | 308.42 | -51.53 | 82.23 | 0.7816 | -290.0 | -294.7 | |
| 0.00 | 0.70 | 0.00 | 0.56 | 11.59 | 307.83 | -52.12 | 79.60 | 0.7884 | -309.0 | -289.1 | |
| 0.00 | 1.48 | 0.00 | 1.19 | 11.90 | 307.59 | -52.36 | 79.21 | 0.7910 | -418.0 | -335.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 9.19 | 308.04 | -51.90 | 82.65 | 0.7856 | -404.0 | -368.0 | |
| 0.00 | 3.92 | 0.00 | 3.19 | 12.12 | 307.23 | -52.72 | 78.96 | 0.7949 | -683.0 | -495.4 | |
| 0.00 | 5.66 | 0.00 | 4.59 | 11.67 | 307.30 | -52.65 | 79.52 | 0.7939 | 199.0 | 182.0 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 11.28 | 307.36 | -52.59 | 80.01 | 0.7932 | 315.0 | 284.2 | |
| 2.96 | 3.49 | 2.43 | 2.86 | 12.24 | 306.89 | -53.06 | 78.82 | 0.7985 | -282.7 | -267.2 | |
| 0.00 | 1.31 | 0.00 | 1.05 | 8.47 | 307.74 | -52.20 | 83.56 | 0.7888 | -468.0 | -345.5 | |
| 2.00 | 28.41 | 1.64 | 23.45 | 11.36 | 306.83 | -53.12 | 79.93 | 0.7988 | 736.6 | 430.0 | |
| 1.57 | -32.00 | 1.29 | -32.00 | 11.98 | 306.60 | -53.34 | 79.16 | 0.8013 | -215.9 | 999999 | |
| 8.89 | -32.00 | 7.36 | -32.00 | 11.75 | 306.36 | -53.59 | 79.46 | 0.8037 | 769.0 | 999999 | |
| 1.13 | 3.40 | 0.93 | 2.80 | 11.09 | 306.54 | -53.41 | 80.27 | 0.8016 | 554.9 | 546.0 | |
| 0.00 | 1.31 | 0.00 | 1.09 | 12.39 | 306.07 | -53.88 | 78.67 | 0.8069 | -458.0 | -284.1 | |
| 0.00 | 0.52 | 0.00 | 0.44 | 11.27 | 306.08 | -53.87 | 80.06 | 0.8064 | 563.0 | 528.8 | |
| 2.96 | 5.40 | 2.49 | 4.54 | 11.46 | 305.76 | -54.18 | 79.84 | 0.8096 | 559.7 | 411.9 | |
| 0.00 | 1.48 | 0.00 | 1.25 | 10.48 | 305.66 | -54.29 | 81.05 | 0.8104 | 168.0 | 6.8 | |
| 4.97 | 6.10 | 4.30 | 5.28 | 13.43 | 304.56 | -55.39 | 77.47 | 0.8223 | -600.2 | -343.8 | |
| 0.52 | 73.19 | 0.45 | 63.68 | 11.12 | 304.91 | -55.04 | 80.28 | 0.8181 | -613.5 | 260.4 | |
| 3.49 | 136.63 | 3.05 | 123.93 | 13.43 | 304.12 | -55.83 | 77.50 | 0.8265 | -470.1 | 431.8 | |
| 6.54 | -41.00 | 5.63 | -41.00 | 11.44 | 304.71 | -55.24 | 79.90 | 0.8201 | -670.6 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.54 | 13.00 | 303.77 | -56.18 | 78.03 | 0.8296 | 258.0 | 233.6 | |
| 4.01 | -41.00 | 3.51 | -41.00 | 11.54 | 304.08 | -55.87 | 79.79 | 0.8262 | 671.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.83 | 10.60 | 304.03 | -55.92 | 80.93 | 0.8266 | 713.0 | 550.6 | |
| 2.18 | -42.00 | 1.95 | -42.00 | 11.89 | 303.20 | -56.75 | 79.38 | 0.8348 | 804.4 | 999999 | |
| 0.00 | 3.31 | 0.00 | 2.96 | 11.38 | 303.25 | -56.70 | 80.00 | 0.8342 | 709.0 | 514.5 | |
| 3.92 | -42.00 | 3.58 | -42.00 | 13.35 | 302.40 | -57.54 | 77.67 | 0.8425 | -357.5 | 999999 | |
| 2.09 | -42.00 | 1.89 | -42.00 | 11.56 | 302.85 | -57.10 | 79.79 | 0.8379 | -299.4 | 999999 | |
| 3.57 | -42.00 | 3.26 | -42.00 | 12.81 | 302.43 | -57.52 | 78.31 | 0.8421 | 623.4 | 999999 | |
| 9.32 | -42.00 | 8.53 | -42.00 | 12.10 | 302.33 | -57.61 | 79.16 | 0.8428 | 705.5 | 999999 | |
| 0.96 | -42.00 | 0.88 | -42.00 | 11.67 | 302.30 | -57.64 | 79.67 | 0.8430 | 835.7 | 999999 | |
| 11.24 | -42.00 | 10.41 | -42.00 | 11.66 | 301.84 | -58.10 | 79.68 | 0.8472 | 526.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.21 | 10.92 | 301.97 | -57.98 | 80.57 | 0.8460 | 10.0 | 46.3 | |
| 0.00 | 0.96 | 0.00 | 0.93 | 14.25 | 300.25 | -59.69 | 76.70 | 0.8619 | 623.0 | 532.5 | |
| 0.00 | 3.22 | 0.00 | 3.12 | 13.88 | 300.29 | -59.66 | 77.12 | 0.8615 | 490.0 | 520.0 | |
| 4.18 | 9.24 | 4.04 | 8.91 | 13.37 | 300.38 | -59.57 | 77.71 | 0.8606 | 717.8 | 701.4 | |
| 3.92 | 4.88 | 3.78 | 4.70 | 11.85 | 300.41 | -59.53 | 79.48 | 0.8600 | 696.2 | 536.4 | |
| 0.00 | 0.61 | 0.00 | 0.59 | 12.37 | 300.10 | -59.85 | 78.88 | 0.8628 | 562.0 | 537.9 | |
| 0.00 | 0.52 | 0.00 | 0.53 | 14.57 | 298.98 | -60.97 | 76.37 | 0.8728 | 394.0 | 378.0 | |
| 9.15 | 11.33 | 8.95 | 11.10 | 11.87 | 299.92 | -60.03 | 79.47 | 0.8643 | 605.7 | 472.3 | |
| 2.70 | 3.40 | 2.63 | 3.31 | 11.37 | 300.04 | -59.91 | 80.05 | 0.8633 | 527.1 | 444.2 | |
| 0.00 | 2.27 | 0.00 | 2.28 | 13.93 | 299.02 | -60.93 | 77.11 | 0.8723 | 548.0 | 428.4 | |
| 0.00 | 0.87 | 0.00 | 0.86 | 12.39 | 299.54 | -60.41 | 78.87 | 0.8676 | 321.0 | 291.6 | |
| 0.00 | 1.39 | 0.00 | 1.38 | 11.44 | 299.46 | -60.49 | 79.97 | 0.8683 | 297.0 | 299.6 | |
| 0.00 | 1.48 | 0.00 | 1.50 | 13.20 | 298.70 | -61.25 | 77.95 | 0.8748 | 313.0 | 245.9 | |
| 14.64 | 32.94 | 14.76 | 33.26 | 12.61 | 298.88 | -61.07 | 78.63 | 0.8732 | 633.4 | 227.3 | |
| 0.00 | 0.96 | 0.00 | 0.95 | 11.01 | 299.36 | -60.59 | 80.47 | 0.8691 | 332.0 | 263.1 | |
| 0.00 | 1.31 | 0.00 | 1.30 | 10.62 | 299.43 | -60.52 | 80.92 | 0.8685 | 162.0 | 140.9 | |
| 0.00 | 3.05 | 0.00 | 3.07 | 11.70 | 298.92 | -61.03 | 79.67 | 0.8728 | -19.0 | 152.2 | |
| 0.00 | 2.44 | 0.00 | 2.56 | 14.25 | 297.69 | -62.26 | 76.78 | 0.8831 | 536.0 | 365.8 | |
| 0.00 | 2.61 | 0.00 | 2.71 | 12.59 | 297.98 | -61.97 | 78.66 | 0.8806 | 179.0 | 142.7 | |
| 0.00 | 4.10 | 0.00 | 4.26 | 12.28 | 297.85 | -62.10 | 79.02 | 0.8816 | 214.0 | 164.6 | |
| 0.00 | 0.70 | 0.00 | 0.73 | 11.97 | 297.84 | -62.11 | 79.36 | 0.8816 | 345.0 | 270.2 | |
| 2.09 | 10.02 | 2.18 | 10.50 | 11.70 | 297.82 | -62.13 | 79.68 | 0.8818 | 308.3 | -30.0 | |
| 0.00 | 2.35 | 0.00 | 2.48 | 12.43 | 297.52 | -62.43 | 78.84 | 0.8843 | -103.0 | -165.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
