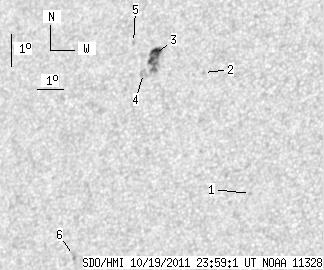

SDO HMI 2011-10-19 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.68 | 34.15 | 7.39 | 21.56 | 18.33 | 322.95 | -36.99 | 67.22 | 0.6224 | 674.8 | 559.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-19 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.67 | 15.17 | 327.52 | -32.43 | 70.64 | 0.5508 | 704.0 | 508.5 | |
| 0.00 | 1.39 | 0.00 | 0.86 | 18.74 | 325.02 | -34.93 | 65.68 | 0.5972 | -772.0 | -474.8 | |
| 11.68 | 21.78 | 7.39 | 13.77 | 19.19 | 322.99 | -36.95 | 65.87 | 0.6244 | 877.7 | 772.9 | |
| 0.00 | 4.97 | 0.00 | 3.15 | 18.59 | 322.71 | -37.23 | 66.91 | 0.6257 | 572.0 | 497.2 | |
| 0.00 | 1.39 | 0.00 | 0.89 | 19.51 | 322.07 | -37.88 | 65.75 | 0.6370 | 707.0 | 518.4 | |
| 0.00 | 3.49 | 0.00 | 2.22 | 12.94 | 321.20 | -38.75 | 76.22 | 0.6304 | 663.0 | 463.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
