SDO HMI 2011-10-20 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.97 | 0.00 | 5.23 | 23.85 | 332.43 | -26.96 | 51.99 | 0.5283 | -597.1 | -527.2 | |
|
previous
or next observation for the same group /

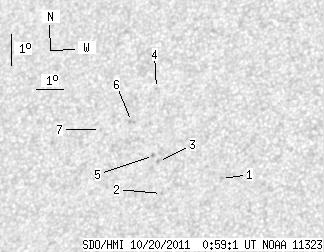

back to the solar disc SDO HMI 2011-10-20 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.69 | 22.87 | 335.15 | -24.25 | 51.05 | 0.4886 | -739.0 | -618.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 22.32 | 333.11 | -26.29 | 53.96 | 0.5087 | -718.0 | -545.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 23.31 | 332.79 | -26.60 | 52.57 | 0.5200 | -306.0 | -422.3 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 25.60 | 332.19 | -27.21 | 49.45 | 0.5448 | -655.0 | -530.6 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 23.49 | 332.57 | -26.83 | 52.47 | 0.5240 | -761.0 | -663.6 | |
| 0.00 | 2.61 | 0.00 | 1.54 | 24.52 | 331.52 | -27.88 | 51.72 | 0.5440 | -534.0 | -528.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 24.22 | 330.44 | -28.96 | 53.10 | 0.5543 | -467.0 | -324.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
