SDO HMI 2011-10-20 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.38 | 793.39 | 166.07 | 651.44 | 11.47 | 305.20 | -53.09 | 79.79 | 0.7965 | 6.8 | 41.7 | |
|
previous
or next observation for the same group /

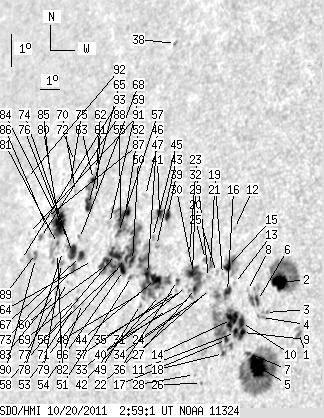

back to the solar disc SDO HMI 2011-10-20 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.93 | 0.00 | 4.26 | 10.38 | 311.70 | -46.59 | 80.91 | 0.7260 | -790.0 | -680.3 | |
| 15.17 | 73.56 | 11.13 | 53.85 | 11.81 | 310.55 | -47.75 | 79.04 | 0.7404 | -895.3 | -430.1 | |
| 0.00 | 1.92 | 0.00 | 1.42 | 10.87 | 310.12 | -48.18 | 80.33 | 0.7448 | -690.0 | -652.9 | |
| 0.00 | 3.49 | 0.00 | 2.58 | 10.71 | 309.97 | -48.33 | 80.55 | 0.7464 | -773.0 | -590.5 | |
| 22.05 | 122.81 | 16.31 | 90.69 | 9.24 | 310.07 | -48.22 | 82.53 | 0.7447 | -1030.3 | -426.8 | |
| 2.79 | 12.73 | 2.08 | 9.52 | 11.20 | 309.67 | -48.62 | 79.91 | 0.7500 | -765.1 | -532.4 | |
| 1.83 | -5.00 | 1.37 | -5.00 | 9.59 | 309.59 | -48.70 | 82.06 | 0.7503 | -514.9 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.18 | 11.46 | 309.15 | -49.15 | 79.59 | 0.7561 | -396.0 | -258.2 | |
| 1.83 | 98.40 | 1.38 | 75.23 | 10.20 | 309.19 | -49.10 | 81.27 | 0.7550 | -947.2 | -31.1 | |
| 4.36 | -9.00 | 3.29 | -9.00 | 10.49 | 309.09 | -49.21 | 80.88 | 0.7563 | -852.8 | 999999 | |
| 2.61 | -9.00 | 1.98 | -9.00 | 10.18 | 308.87 | -49.43 | 81.31 | 0.7586 | -712.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.47 | 13.27 | 308.06 | -50.24 | 77.30 | 0.7692 | -454.0 | -375.9 | |
| 0.00 | 1.22 | 0.00 | 0.93 | 11.63 | 308.49 | -49.80 | 79.41 | 0.7634 | -533.0 | -444.5 | |
| 12.46 | -9.00 | 9.49 | -9.00 | 10.55 | 308.60 | -49.69 | 80.83 | 0.7617 | -589.1 | 999999 | |
| 5.06 | 19.87 | 3.90 | 15.27 | 12.11 | 308.04 | -50.26 | 78.81 | 0.7687 | -609.5 | 72.1 | |
| 4.88 | 7.67 | 3.75 | 5.89 | 11.37 | 308.22 | -50.07 | 79.77 | 0.7663 | -525.1 | -308.3 | |
| 2.44 | -9.00 | 1.86 | -9.00 | 9.94 | 308.50 | -49.80 | 81.63 | 0.7627 | -383.2 | 999999 | |
| 1.48 | -9.00 | 1.13 | -9.00 | 9.51 | 308.44 | -49.85 | 82.19 | 0.7633 | -357.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.81 | 11.86 | 307.86 | -50.43 | 79.15 | 0.7705 | -345.0 | -301.2 | |
| 0.00 | 2.35 | 0.00 | 1.83 | 11.89 | 307.56 | -50.73 | 79.12 | 0.7738 | -492.0 | -371.9 | |
| 0.00 | 4.27 | 0.00 | 3.35 | 12.08 | 307.22 | -51.08 | 78.90 | 0.7775 | -698.0 | -520.8 | |
| 0.00 | 0.87 | 0.00 | 0.68 | 11.40 | 307.40 | -50.90 | 79.77 | 0.7753 | 636.0 | 526.4 | |
| 0.00 | 1.83 | 0.00 | 1.43 | 11.72 | 307.22 | -51.08 | 79.37 | 0.7774 | -106.0 | -77.1 | |
| 0.00 | 1.05 | 0.00 | 0.82 | 11.24 | 307.25 | -51.05 | 79.99 | 0.7769 | 369.0 | 321.6 | |
| 0.00 | 2.61 | 0.00 | 2.06 | 12.24 | 306.93 | -51.36 | 78.71 | 0.7807 | -410.0 | -353.0 | |
| 0.00 | 1.13 | 0.00 | 0.88 | 8.55 | 307.58 | -50.71 | 83.46 | 0.7727 | -505.0 | -433.1 | |
| 2.00 | 28.68 | 1.59 | 22.80 | 11.34 | 306.68 | -51.62 | 79.87 | 0.7830 | 694.2 | 504.9 | |
| 0.00 | 1.22 | 0.00 | 0.96 | 8.79 | 307.20 | -51.10 | 83.15 | 0.7769 | -495.0 | -455.6 | |
| 5.93 | -27.00 | 4.73 | -27.00 | 11.78 | 306.42 | -51.88 | 79.33 | 0.7860 | 706.3 | 999999 | |
| 0.61 | -27.00 | 0.49 | -27.00 | 11.90 | 306.38 | -51.91 | 79.18 | 0.7864 | -168.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.11 | 11.06 | 306.55 | -51.75 | 80.24 | 0.7843 | 709.0 | 634.2 | |
| 0.00 | 1.22 | 0.00 | 0.98 | 12.36 | 306.11 | -52.19 | 78.60 | 0.7895 | -410.0 | -267.1 | |
| 0.00 | 1.05 | 0.00 | 0.84 | 11.37 | 306.23 | -52.07 | 79.86 | 0.7879 | 652.0 | 595.8 | |
| 0.00 | 1.31 | 0.00 | 1.04 | 10.68 | 306.30 | -52.00 | 80.73 | 0.7869 | -371.0 | -162.7 | |
| 0.00 | 1.22 | 0.00 | 0.98 | 11.24 | 306.06 | -52.24 | 80.03 | 0.7895 | 519.0 | 462.6 | |
| 0.70 | 2.79 | 0.56 | 2.26 | 11.52 | 305.74 | -52.56 | 79.70 | 0.7930 | 623.0 | 580.5 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 11.22 | 305.76 | -52.53 | 80.07 | 0.7926 | 385.0 | 346.5 | |
| 0.00 | 2.00 | 0.00 | 1.75 | 18.57 | 303.01 | -55.29 | 71.21 | 0.8253 | -248.0 | -254.5 | |
| 4.45 | 6.97 | 3.69 | 5.79 | 13.41 | 304.66 | -53.63 | 77.38 | 0.8049 | -623.2 | -323.8 | |
| 0.00 | 0.52 | 0.00 | 0.43 | 10.62 | 305.46 | -52.84 | 80.84 | 0.7956 | -341.0 | -382.0 | |
| 4.45 | 9.76 | 3.73 | 8.20 | 13.44 | 304.23 | -54.06 | 77.37 | 0.8092 | -467.3 | -89.3 | |
| 0.00 | 1.31 | 0.00 | 1.08 | 11.00 | 304.96 | -53.34 | 80.37 | 0.8010 | -378.0 | -296.1 | |
| 0.00 | 2.35 | 0.00 | 1.96 | 12.48 | 304.38 | -53.91 | 78.56 | 0.8073 | -338.0 | -211.0 | |
| 6.71 | 79.23 | 5.57 | 66.21 | 11.46 | 304.63 | -53.67 | 79.81 | 0.8045 | -640.3 | 282.9 | |
| 0.00 | 1.83 | 0.00 | 1.54 | 12.70 | 304.11 | -54.19 | 78.29 | 0.8102 | -153.0 | -150.9 | |
| 2.53 | -44.00 | 2.12 | -44.00 | 11.58 | 304.18 | -54.12 | 79.68 | 0.8091 | 582.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.87 | 13.92 | 303.32 | -54.97 | 76.84 | 0.8185 | -446.0 | -283.3 | |
| 2.53 | -44.00 | 2.12 | -44.00 | 11.06 | 304.11 | -54.18 | 80.32 | 0.8096 | 594.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.10 | 10.66 | 304.06 | -54.24 | 80.81 | 0.8100 | 706.0 | 569.6 | |
| 3.22 | 132.92 | 2.76 | 115.94 | 11.94 | 303.28 | -55.02 | 79.27 | 0.8181 | 760.2 | 431.9 | |
| 0.00 | 3.05 | 0.00 | 2.61 | 11.46 | 303.37 | -54.93 | 79.85 | 0.8171 | 726.0 | 660.1 | |
| 4.62 | -50.00 | 4.04 | -50.00 | 13.30 | 302.45 | -55.85 | 77.64 | 0.8266 | -434.3 | 999999 | |
| 1.31 | -50.00 | 1.13 | -50.00 | 11.97 | 302.89 | -55.41 | 79.24 | 0.8219 | 779.1 | 999999 | |
| 2.79 | -50.00 | 2.41 | -50.00 | 11.60 | 302.89 | -55.40 | 79.69 | 0.8218 | -309.7 | 999999 | |
| 2.70 | -50.00 | 2.37 | -50.00 | 13.01 | 302.28 | -56.02 | 78.00 | 0.8282 | 368.1 | 999999 | |
| 2.96 | -50.00 | 2.57 | -50.00 | 11.74 | 302.69 | -55.61 | 79.53 | 0.8238 | 517.1 | 999999 | |
| 1.83 | -50.00 | 1.61 | -50.00 | 12.71 | 302.27 | -56.03 | 78.37 | 0.8281 | 664.0 | 999999 | |
| 8.80 | -50.00 | 7.72 | -50.00 | 12.04 | 302.32 | -55.98 | 79.17 | 0.8274 | 705.4 | 999999 | |
| 0.00 | 3.57 | 0.00 | 3.19 | 12.94 | 301.69 | -56.61 | 78.12 | 0.8337 | 414.0 | 401.2 | |
| 10.46 | -50.00 | 9.26 | -50.00 | 11.71 | 301.93 | -56.37 | 79.59 | 0.8311 | 577.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.28 | 13.77 | 300.64 | -57.65 | 77.17 | 0.8437 | 456.0 | 346.2 | |
| 0.00 | 1.39 | 0.00 | 1.29 | 14.48 | 300.36 | -57.94 | 76.34 | 0.8466 | 679.0 | 574.5 | |
| 2.18 | 23.71 | 2.02 | 21.94 | 14.17 | 300.31 | -57.99 | 76.71 | 0.8469 | 643.8 | 601.1 | |
| 0.00 | 0.35 | 0.00 | 0.32 | 11.77 | 301.13 | -57.17 | 79.54 | 0.8387 | 536.0 | 503.0 | |
| 8.37 | -63.00 | 7.74 | -63.00 | 13.41 | 300.32 | -57.98 | 77.61 | 0.8465 | 782.2 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.27 | 10.45 | 300.97 | -57.33 | 81.11 | 0.8401 | 408.0 | 282.7 | |
| 4.71 | 20.13 | 4.33 | 18.72 | 11.83 | 300.42 | -57.88 | 79.47 | 0.8452 | 703.1 | 471.3 | |
| 0.00 | 2.61 | 0.00 | 2.43 | 12.36 | 300.18 | -58.12 | 78.85 | 0.8475 | 543.0 | 448.2 | |
| 1.05 | 1.39 | 0.96 | 1.28 | 10.54 | 300.60 | -57.70 | 81.00 | 0.8435 | -150.5 | -51.2 | |
| 0.00 | 0.61 | 0.00 | 0.58 | 13.73 | 299.42 | -58.88 | 77.26 | 0.8547 | 445.0 | 434.0 | |
| 0.00 | 1.05 | 0.00 | 0.96 | 10.33 | 300.55 | -57.75 | 81.26 | 0.8440 | -150.0 | -170.6 | |
| 0.00 | 0.96 | 0.00 | 0.92 | 14.61 | 298.99 | -59.31 | 76.25 | 0.8588 | 464.0 | 427.3 | |
| 3.75 | 5.49 | 3.48 | 5.10 | 11.44 | 300.14 | -58.16 | 79.94 | 0.8477 | 634.4 | 529.0 | |
| 8.45 | -67.00 | 7.89 | -67.00 | 11.91 | 299.93 | -58.37 | 79.39 | 0.8497 | 657.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 2.09 | 13.97 | 299.02 | -59.28 | 76.99 | 0.8583 | 524.0 | 432.7 | |
| 0.00 | 1.13 | 0.00 | 1.07 | 12.27 | 299.50 | -58.79 | 78.97 | 0.8536 | 466.0 | 388.1 | |
| 0.00 | 0.87 | 0.00 | 0.81 | 11.00 | 299.93 | -58.36 | 80.46 | 0.8496 | 652.0 | 527.7 | |
| 0.00 | 0.70 | 0.00 | 0.66 | 11.90 | 299.34 | -58.96 | 79.42 | 0.8550 | 329.0 | 303.0 | |
| 0.00 | 2.79 | 0.00 | 2.64 | 11.54 | 299.41 | -58.89 | 79.84 | 0.8544 | 386.0 | 330.1 | |
| 18.91 | 52.30 | 18.20 | 50.42 | 12.65 | 298.88 | -59.41 | 78.54 | 0.8591 | 605.0 | 167.6 | |
| 1.13 | -80.00 | 1.09 | -80.00 | 12.11 | 298.96 | -59.33 | 79.17 | 0.8583 | 406.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.33 | 11.81 | 299.07 | -59.23 | 79.52 | 0.8574 | 307.0 | 227.3 | |
| 0.00 | 1.39 | 0.00 | 1.32 | 10.62 | 299.35 | -58.95 | 80.91 | 0.8548 | 450.0 | 344.9 | |
| 0.61 | -80.00 | 0.59 | -80.00 | 13.01 | 298.44 | -59.86 | 78.14 | 0.8631 | -322.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.13 | 14.28 | 297.58 | -60.72 | 76.69 | 0.8706 | 505.0 | 360.7 | |
| 0.00 | 0.87 | 0.00 | 0.85 | 12.50 | 298.20 | -60.09 | 78.73 | 0.8650 | 212.0 | 182.7 | |
| 0.00 | 0.70 | 0.00 | 0.69 | 12.82 | 298.02 | -60.28 | 78.36 | 0.8666 | 108.0 | 83.4 | |
| 2.61 | 2.88 | 2.59 | 2.85 | 12.20 | 297.89 | -60.41 | 79.08 | 0.8677 | 231.4 | 286.7 | |
| 0.61 | 8.89 | 0.61 | 8.88 | 11.71 | 297.76 | -60.54 | 79.66 | 0.8687 | 482.3 | -80.3 | |
| 0.44 | -89.00 | 0.43 | -89.00 | 11.56 | 297.81 | -60.48 | 79.82 | 0.8682 | 431.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.06 | 12.26 | 297.10 | -61.19 | 79.02 | 0.8742 | -240.0 | -212.0 | |
| 0.00 | 1.39 | 0.00 | 1.45 | 13.87 | 296.28 | -62.02 | 77.20 | 0.8812 | 295.0 | 251.2 | |
| 0.00 | 1.57 | 0.00 | 1.60 | 11.46 | 296.97 | -61.33 | 79.94 | 0.8753 | -378.0 | -325.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
