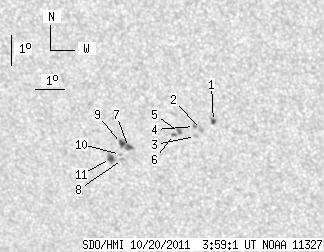

SDO HMI 2011-10-20 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.52 | 29.11 | 8.19 | 17.57 | -21.20 | 334.98 | -22.77 | 140.85 | 0.5731 | -151.5 | 49.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.66 | 2.62 | 0.98 | 1.54 | -20.42 | 337.23 | -20.52 | 142.72 | 0.5445 | 901.0 | 782.0 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -20.70 | 336.78 | -20.97 | 142.47 | 0.5516 | 755.0 | 678.8 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -20.94 | 336.54 | -21.21 | 142.44 | 0.5564 | 758.0 | 572.8 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -20.61 | 336.56 | -21.19 | 142.07 | 0.5526 | 852.0 | 605.1 | |
| 1.22 | 4.79 | 0.73 | 2.86 | -20.83 | 336.01 | -21.74 | 141.63 | 0.5599 | 722.9 | 630.9 | |
| 1.31 | -5.00 | 0.78 | -5.00 | -20.90 | 335.79 | -21.96 | 141.45 | 0.5627 | 499.7 | 999999 | |
| 2.70 | 7.67 | 1.64 | 4.67 | -21.40 | 334.14 | -23.61 | 140.05 | 0.5829 | -796.9 | -803.5 | |
| 0.00 | 2.09 | 0.00 | 1.28 | -21.82 | 333.86 | -23.89 | 140.21 | 0.5897 | -712.0 | -600.7 | |
| 2.53 | -7.00 | 1.54 | -7.00 | -21.28 | 333.92 | -23.83 | 139.65 | 0.5836 | -938.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -21.65 | 333.82 | -23.93 | 139.97 | 0.5884 | -911.0 | -780.8 | |
| 4.10 | 5.14 | 2.52 | 3.16 | -21.80 | 333.44 | -24.31 | 139.71 | 0.5933 | -709.8 | -573.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
