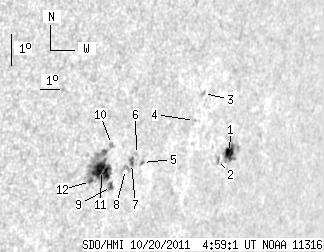

SDO HMI 2011-10-20 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.91 | 98.85 | 28.51 | 83.07 | -12.08 | 48.43 | 51.23 | 250.65 | 0.8093 | -258.3 | -283.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.37 | 19.61 | 7.85 | 18.43 | -12.07 | 52.93 | 55.73 | 252.10 | 0.8513 | 617.1 | 154.4 | |
| 0.00 | 3.40 | 0.00 | 3.14 | -12.24 | 52.33 | 55.13 | 251.73 | 0.8464 | 610.0 | 556.4 | |
| 0.00 | 1.83 | 0.00 | 1.61 | -10.09 | 50.99 | 53.79 | 253.84 | 0.8292 | 598.0 | 460.0 | |
| 0.00 | 0.87 | 0.00 | 0.77 | -10.91 | 50.73 | 53.53 | 252.81 | 0.8288 | 596.0 | 530.0 | |
| 0.00 | 1.39 | 0.00 | 1.17 | -12.03 | 48.42 | 51.22 | 250.75 | 0.8098 | -400.0 | -327.7 | |
| 0.00 | 1.31 | 0.00 | 1.09 | -11.75 | 48.06 | 50.85 | 250.96 | 0.8054 | -223.0 | -211.5 | |
| 1.31 | 3.40 | 1.09 | 2.82 | -12.02 | 47.88 | 50.68 | 250.58 | 0.8045 | -634.6 | -600.9 | |
| 0.00 | 4.97 | 0.00 | 4.11 | -12.19 | 47.64 | 50.43 | 250.30 | 0.8026 | -448.0 | -458.3 | |
| 2.96 | 4.45 | 2.43 | 3.64 | -12.67 | 47.09 | 49.89 | 249.52 | 0.7988 | -437.2 | -343.9 | |
| 0.00 | 2.27 | 0.00 | 1.83 | -11.34 | 46.76 | 49.55 | 251.01 | 0.7914 | -522.0 | -512.1 | |
| 19.96 | 55.35 | 16.09 | 44.46 | -12.13 | 46.48 | 49.28 | 249.96 | 0.7910 | -731.5 | -552.9 | |
| 1.31 | -11.00 | 1.05 | -11.00 | -12.44 | 46.04 | 48.84 | 249.42 | 0.7876 | -671.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
