SDO HMI 2011-10-20 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 21.18 | 5.50 | 13.07 | 19.04 | 322.32 | -34.89 | 65.18 | 0.5984 | 750.4 | 577.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

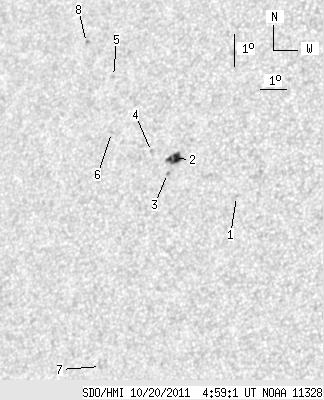

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.67 | 18.27 | 325.51 | -31.69 | 64.82 | 0.5534 | 533.0 | 469.6 | |
| 8.98 | 12.29 | 5.50 | 7.53 | 19.31 | 322.94 | -34.26 | 64.41 | 0.5913 | 896.1 | 727.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 18.84 | 322.79 | -34.42 | 65.25 | 0.5912 | 725.0 | 652.6 | |
| 0.00 | 1.57 | 0.00 | 0.97 | 19.48 | 322.01 | -35.19 | 64.59 | 0.6037 | 556.0 | 505.2 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 21.70 | 319.89 | -37.31 | 62.18 | 0.6391 | 677.0 | 515.5 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 19.98 | 320.31 | -36.89 | 64.59 | 0.6269 | 544.0 | 478.0 | |
| 0.00 | 1.92 | 0.00 | 1.17 | 12.88 | 321.43 | -35.77 | 75.63 | 0.5905 | 772.0 | 475.6 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 22.69 | 318.47 | -38.74 | 61.39 | 0.6599 | 645.0 | 563.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
