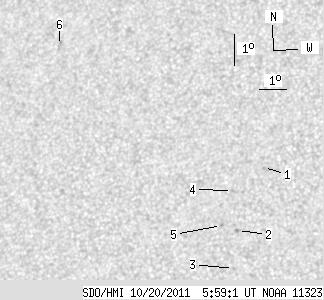

SDO HMI 2011-10-20 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.89 | 0.00 | 5.17 | 24.55 | 330.54 | -26.12 | 49.97 | 0.5227 | -545.3 | -236.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.49 | 24.38 | 333.79 | -22.87 | 46.97 | 0.4862 | -780.0 | -656.6 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 22.37 | 333.24 | -23.42 | 51.00 | 0.4749 | -897.0 | -709.7 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 21.19 | 333.30 | -23.35 | 53.07 | 0.4643 | -697.0 | -565.7 | |
| 0.00 | 1.66 | 0.00 | 0.94 | 23.62 | 332.83 | -23.83 | 49.29 | 0.4903 | -785.0 | -509.4 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 22.51 | 332.65 | -24.01 | 51.38 | 0.4830 | -775.0 | -653.7 | |
| 0.00 | 2.70 | 0.00 | 1.68 | 27.94 | 325.24 | -31.41 | 49.43 | 0.6084 | 662.0 | 569.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
