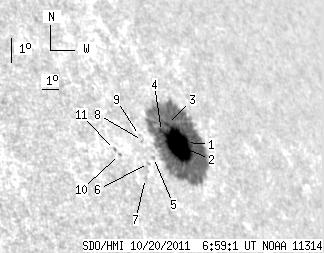

SDO HMI 2011-10-20 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.44 | 302.63 | 52.71 | 298.76 | 27.63 | 54.74 | 58.63 | 298.90 | 0.8661 | -813.6 | -150.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.01 | 294.71 | 4.02 | 291.45 | 27.65 | 55.41 | 59.30 | 298.80 | 0.8712 | 229.7 | -141.0 | |
| 46.55 | -1.00 | 45.87 | -1.00 | 27.60 | 54.77 | 58.66 | 298.86 | 0.8663 | -952.3 | 999999 | |
| 1.31 | -1.00 | 1.29 | -1.00 | 28.30 | 54.73 | 58.62 | 299.66 | 0.8671 | -647.5 | 999999 | |
| 1.57 | -1.00 | 1.53 | -1.00 | 28.11 | 54.18 | 58.07 | 299.55 | 0.8625 | -912.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.31 | 27.34 | 53.03 | 56.92 | 298.90 | 0.8522 | -622.0 | -510.2 | |
| 0.00 | 1.22 | 0.00 | 1.14 | 27.18 | 52.59 | 56.48 | 298.80 | 0.8484 | -585.0 | -494.4 | |
| 0.00 | 1.31 | 0.00 | 1.20 | 26.73 | 52.06 | 55.96 | 298.38 | 0.8433 | -347.0 | -368.9 | |
| 0.00 | 1.13 | 0.00 | 1.06 | 27.92 | 52.81 | 56.71 | 299.61 | 0.8516 | -616.0 | -516.0 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 28.09 | 52.77 | 56.66 | 299.81 | 0.8515 | -534.0 | -539.7 | |
| 0.00 | 1.22 | 0.00 | 1.10 | 27.58 | 51.16 | 55.05 | 299.58 | 0.8375 | -489.0 | -467.4 | |
| 0.00 | 1.39 | 0.00 | 1.25 | 27.76 | 50.99 | 54.89 | 299.82 | 0.8365 | -399.0 | -465.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
