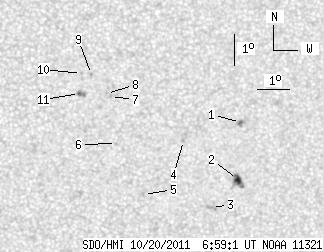

SDO HMI 2011-10-20 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.20 | 31.11 | 4.40 | 16.68 | -15.35 | 4.31 | 8.20 | 200.90 | 0.3829 | -93.2 | -34.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.66 | 3.92 | 0.89 | 2.10 | -14.55 | 6.12 | 10.01 | 206.24 | 0.3821 | 987.1 | 870.4 | |
| 4.71 | 9.94 | 2.55 | 5.39 | -16.37 | 6.11 | 10.00 | 204.19 | 0.4085 | 989.1 | 701.1 | |
| 0.00 | 4.01 | 0.00 | 2.18 | -17.26 | 5.33 | 9.23 | 201.66 | 0.4166 | -994.0 | -691.8 | |
| 0.00 | 1.74 | 0.00 | 0.93 | -15.10 | 4.36 | 8.25 | 201.55 | 0.3787 | 840.0 | 665.8 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -16.81 | 3.17 | 7.06 | 197.26 | 0.3984 | 808.0 | 621.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -15.17 | 2.27 | 6.16 | 196.39 | 0.3687 | -629.0 | -526.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.67 | 2.04 | 5.93 | 197.04 | 0.3443 | -760.0 | -590.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -13.57 | 1.92 | 5.81 | 196.79 | 0.3422 | -1097.0 | -861.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -12.97 | 1.44 | 5.33 | 195.98 | 0.3304 | -959.0 | -737.1 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -12.94 | 1.13 | 5.02 | 195.13 | 0.3285 | -913.0 | -705.8 | |
| 1.83 | 4.18 | 0.96 | 2.20 | -13.57 | 1.08 | 4.98 | 194.49 | 0.3384 | -887.6 | -861.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
