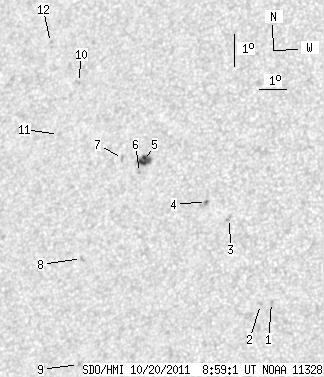

SDO HMI 2011-10-20 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.68 | 27.89 | 5.78 | 16.61 | 18.55 | 323.28 | -31.74 | 64.38 | 0.5552 | 663.9 | 422.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.88 | 15.23 | 328.20 | -26.81 | 67.61 | 0.4726 | 739.0 | 552.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 15.15 | 327.83 | -27.18 | 67.99 | 0.4775 | 697.0 | 534.7 | |
| 0.00 | 2.35 | 0.00 | 1.35 | 17.71 | 326.34 | -28.68 | 63.99 | 0.5107 | -578.0 | -476.3 | |
| 0.96 | 3.22 | 0.56 | 1.88 | 18.19 | 325.42 | -29.59 | 63.69 | 0.5254 | 729.1 | 624.2 | |
| 8.72 | 10.37 | 5.22 | 6.21 | 19.34 | 322.91 | -32.11 | 63.20 | 0.5640 | 920.3 | 643.9 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 18.96 | 322.80 | -32.21 | 63.89 | 0.5636 | 782.0 | 649.9 | |
| 0.00 | 2.35 | 0.00 | 1.42 | 19.36 | 322.08 | -32.94 | 63.62 | 0.5748 | 456.0 | 455.7 | |
| 0.00 | 1.66 | 0.00 | 1.00 | 16.24 | 321.20 | -33.82 | 69.27 | 0.5735 | 627.0 | 579.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 13.04 | 321.64 | -33.37 | 74.66 | 0.5578 | 663.0 | 473.5 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 21.61 | 319.81 | -35.20 | 61.25 | 0.6136 | 649.0 | 494.4 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 19.97 | 319.47 | -35.55 | 63.96 | 0.6104 | 634.0 | 494.7 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 22.79 | 318.34 | -36.67 | 60.23 | 0.6366 | 595.0 | 534.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
