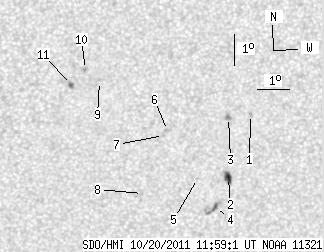

SDO HMI 2011-10-20 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.41 | 32.32 | 5.14 | 17.56 | -15.87 | 5.06 | 11.68 | 208.13 | 0.4130 | 371.4 | -22.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.13 | -14.57 | 6.84 | 13.47 | 213.54 | 0.4098 | 856.0 | 631.0 | |
| 6.36 | 7.40 | 3.49 | 4.06 | -16.58 | 6.27 | 12.90 | 209.85 | 0.4318 | 913.3 | 669.1 | |
| 0.00 | 2.61 | 0.00 | 1.41 | -14.65 | 6.15 | 12.78 | 212.06 | 0.4049 | 1029.0 | 873.6 | |
| 1.39 | 9.06 | 0.77 | 5.00 | -17.54 | 5.93 | 12.55 | 208.07 | 0.4423 | -928.6 | -697.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -16.59 | 5.29 | 11.91 | 207.91 | 0.4245 | 437.0 | 357.8 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -15.03 | 4.25 | 10.88 | 207.61 | 0.3949 | 874.0 | 659.2 | |
| 0.00 | 1.66 | 0.00 | 0.89 | -15.19 | 4.13 | 10.76 | 207.16 | 0.3963 | 699.0 | 531.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.04 | 3.57 | 10.19 | 203.93 | 0.4189 | 683.0 | 538.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -13.44 | 2.05 | 8.68 | 204.44 | 0.3563 | -446.0 | -528.5 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -13.05 | 1.60 | 8.23 | 203.77 | 0.3476 | -945.0 | -764.0 | |
| 1.66 | 2.70 | 0.88 | 1.43 | -13.52 | 1.19 | 7.81 | 202.17 | 0.3519 | -886.2 | -799.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
