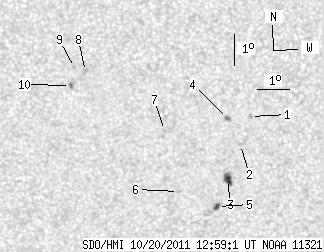

SDO HMI 2011-10-20 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.85 | 28.04 | 5.40 | 15.28 | -15.78 | 5.09 | 12.26 | 209.36 | 0.4161 | 141.5 | -117.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.90 | -14.62 | 6.87 | 14.05 | 214.58 | 0.4156 | 872.0 | 627.4 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -15.51 | 6.61 | 13.79 | 212.88 | 0.4248 | 726.0 | 416.8 | |
| 5.49 | 7.58 | 3.02 | 4.17 | -16.62 | 6.27 | 13.45 | 210.82 | 0.4368 | 905.3 | 686.5 | |
| 0.44 | 1.92 | 0.24 | 1.04 | -14.67 | 6.14 | 13.32 | 213.11 | 0.4097 | 999.6 | 868.0 | |
| 2.70 | 7.49 | 1.49 | 4.14 | -17.49 | 6.02 | 13.19 | 209.32 | 0.4464 | -909.6 | -601.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -16.98 | 4.73 | 11.91 | 207.46 | 0.4298 | -869.0 | -690.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -15.01 | 4.17 | 11.35 | 208.64 | 0.3982 | 802.0 | 658.8 | |
| 0.00 | 3.22 | 0.00 | 1.70 | -13.10 | 1.62 | 8.79 | 205.14 | 0.3520 | -914.0 | -739.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.96 | 1.27 | 8.45 | 204.43 | 0.3476 | -896.0 | -744.0 | |
| 1.22 | 1.65 | 0.65 | 0.88 | -13.53 | 1.17 | 8.34 | 203.50 | 0.3554 | -899.9 | -874.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
