SDO HMI 2011-10-20 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.64 | 263.52 | 49.91 | 287.87 | 27.65 | 54.55 | 62.28 | 298.33 | 0.8927 | -701.1 | -130.3 | |
|
previous
or next observation for the same group /

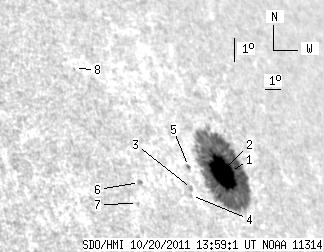

back to the solar disc SDO HMI 2011-10-20 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.49 | 254.29 | 6.10 | 278.78 | 27.63 | 55.24 | 62.96 | 298.21 | 0.8974 | 334.9 | -118.2 | |
| 40.15 | -1.00 | 43.81 | -1.00 | 27.65 | 54.59 | 62.32 | 298.32 | 0.8930 | -875.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 2.12 | 27.31 | 52.17 | 59.89 | 298.33 | 0.8752 | -615.0 | -554.6 | |
| 0.00 | 1.74 | 0.00 | 1.76 | 27.10 | 51.98 | 59.70 | 298.11 | 0.8735 | -559.0 | -407.4 | |
| 0.00 | 1.48 | 0.00 | 1.53 | 28.01 | 52.60 | 60.33 | 299.03 | 0.8793 | -604.0 | -501.3 | |
| 0.00 | 2.00 | 0.00 | 1.89 | 27.74 | 49.17 | 56.90 | 299.38 | 0.8529 | -218.0 | -304.6 | |
| 0.00 | 1.22 | 0.00 | 1.13 | 27.10 | 48.54 | 56.26 | 298.76 | 0.8466 | -440.0 | -383.9 | |
| 0.00 | 0.70 | 0.00 | 0.66 | 31.62 | 48.46 | 56.19 | 303.98 | 0.8553 | -470.0 | -420.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
