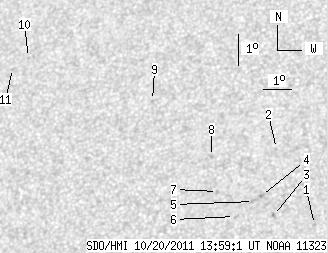

SDO HMI 2011-10-20 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.93 | 0.00 | 7.82 | 23.80 | 330.58 | -21.69 | 46.23 | 0.4673 | -447.5 | -379.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.61 | 22.08 | 334.64 | -17.64 | 44.07 | 0.4054 | -813.0 | -506.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 24.42 | 333.00 | -19.28 | 42.36 | 0.4480 | -626.0 | -504.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 22.32 | 333.21 | -19.06 | 45.71 | 0.4239 | -770.0 | -631.1 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 22.93 | 332.71 | -19.56 | 45.30 | 0.4357 | -904.0 | -735.5 | |
| 0.00 | 2.44 | 0.00 | 1.34 | 22.73 | 332.46 | -19.81 | 45.98 | 0.4365 | -407.0 | -518.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 22.24 | 331.88 | -20.39 | 47.62 | 0.4384 | -743.0 | -660.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 23.00 | 331.18 | -21.10 | 47.16 | 0.4538 | -619.0 | -436.3 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 24.09 | 330.78 | -21.49 | 45.78 | 0.4687 | -726.0 | -546.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 25.79 | 328.34 | -23.93 | 45.84 | 0.5112 | -619.0 | -500.7 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 26.97 | 323.43 | -28.84 | 48.74 | 0.5741 | 691.0 | 478.9 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 26.60 | 322.93 | -29.35 | 49.72 | 0.5767 | 614.0 | 561.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
