SDO HMI 2011-10-20 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.82 | 854.71 | 143.95 | 617.60 | 11.60 | 304.89 | -46.84 | 79.21 | 0.7279 | -36.8 | 75.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

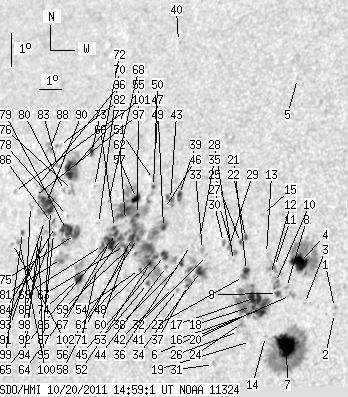

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.78 | 10.53 | 312.10 | -39.62 | 80.06 | 0.6388 | -765.0 | -727.5 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 10.35 | 312.13 | -39.59 | 80.34 | 0.6383 | -858.0 | -698.1 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 10.58 | 310.90 | -40.83 | 80.12 | 0.6546 | -765.0 | -660.6 | |
| 17.07 | 73.75 | 11.24 | 48.45 | 11.79 | 310.49 | -41.24 | 78.32 | 0.6612 | -888.6 | -436.9 | |
| 0.00 | 1.39 | 0.00 | 0.95 | 17.31 | 309.11 | -42.61 | 70.47 | 0.6882 | -513.0 | -326.0 | |
| 0.00 | 3.57 | 0.00 | 2.35 | 10.78 | 310.30 | -41.43 | 79.87 | 0.6626 | -694.0 | -736.9 | |
| 27.25 | 128.17 | 17.94 | 84.28 | 9.31 | 310.37 | -41.36 | 82.09 | 0.6606 | -1002.0 | -412.8 | |
| 0.00 | 1.92 | 0.00 | 1.27 | 11.01 | 310.10 | -41.63 | 79.55 | 0.6654 | -789.0 | -652.2 | |
| 2.61 | 4.35 | 1.74 | 2.89 | 10.81 | 309.76 | -41.96 | 79.88 | 0.6695 | -791.7 | -675.5 | |
| 0.00 | 7.84 | 0.00 | 5.22 | 11.13 | 309.62 | -42.10 | 79.41 | 0.6715 | -812.0 | -692.3 | |
| 0.52 | 8.27 | 0.35 | 5.53 | 11.61 | 309.50 | -42.23 | 78.72 | 0.6736 | -494.5 | -536.6 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 11.36 | 309.38 | -42.35 | 79.11 | 0.6749 | -548.0 | -482.9 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 11.98 | 309.09 | -42.63 | 78.23 | 0.6791 | -498.0 | -407.9 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 9.50 | 309.48 | -42.24 | 81.86 | 0.6721 | -582.0 | -423.2 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 13.13 | 308.69 | -43.04 | 76.60 | 0.6856 | -464.0 | -394.4 | |
| 9.14 | 71.84 | 6.13 | 48.54 | 10.29 | 309.19 | -42.53 | 80.70 | 0.6763 | -921.1 | -161.9 | |
| 9.32 | -16.00 | 6.28 | -16.00 | 10.64 | 308.89 | -42.84 | 80.23 | 0.6804 | -729.9 | 999999 | |
| 0.70 | -16.00 | 0.47 | -16.00 | 10.36 | 308.77 | -42.96 | 80.65 | 0.6817 | -533.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 9.31 | 308.89 | -42.83 | 82.18 | 0.6795 | -533.0 | -367.5 | |
| 2.09 | -16.00 | 1.41 | -16.00 | 10.14 | 308.68 | -43.05 | 80.97 | 0.6827 | -440.5 | 999999 | |
| 3.48 | 7.92 | 2.37 | 5.39 | 11.42 | 308.37 | -43.36 | 79.13 | 0.6876 | -656.6 | -484.2 | |
| 1.74 | 5.40 | 1.19 | 3.69 | 12.40 | 308.13 | -43.60 | 77.74 | 0.6916 | -588.5 | -555.4 | |
| 0.52 | -21.00 | 0.36 | -21.00 | 11.23 | 308.28 | -43.45 | 79.41 | 0.6886 | -447.5 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.89 | 9.82 | 308.44 | -43.28 | 81.45 | 0.6855 | -485.0 | -297.7 | |
| 1.22 | -22.00 | 0.84 | -22.00 | 12.24 | 307.95 | -43.78 | 77.99 | 0.6936 | -556.9 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.95 | 9.58 | 308.35 | -43.37 | 81.81 | 0.6864 | -350.0 | -261.3 | |
| 0.00 | 4.01 | 0.00 | 2.75 | 11.92 | 307.72 | -44.01 | 78.48 | 0.6961 | -680.0 | -570.5 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 11.68 | 307.77 | -43.96 | 78.82 | 0.6953 | -537.0 | -481.0 | |
| 0.00 | 3.13 | 0.00 | 2.16 | 12.12 | 307.51 | -44.22 | 78.22 | 0.6989 | -758.0 | -543.8 | |
| 0.00 | 2.44 | 0.00 | 1.69 | 12.19 | 307.23 | -44.49 | 78.14 | 0.7023 | -533.0 | -420.3 | |
| 0.00 | 1.74 | 0.00 | 1.20 | 8.53 | 307.46 | -44.26 | 83.37 | 0.6972 | -638.0 | -490.6 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 11.75 | 306.59 | -45.13 | 78.83 | 0.7096 | 179.0 | 92.0 | |
| 0.00 | 3.05 | 0.00 | 2.14 | 11.92 | 306.38 | -45.34 | 78.61 | 0.7123 | 389.0 | 216.9 | |
| 6.01 | 31.78 | 4.22 | 22.40 | 11.26 | 306.43 | -45.29 | 79.54 | 0.7111 | 776.2 | 469.9 | |
| 0.00 | 1.92 | 0.00 | 1.35 | 12.33 | 306.20 | -45.52 | 78.06 | 0.7148 | -470.0 | -374.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 12.01 | 305.84 | -45.89 | 78.55 | 0.7189 | 348.0 | 449.0 | |
| 1.48 | -34.00 | 1.05 | -34.00 | 10.80 | 305.96 | -45.77 | 80.21 | 0.7165 | -429.5 | 999999 | |
| 2.44 | 3.48 | 1.74 | 2.48 | 11.44 | 305.56 | -46.16 | 79.36 | 0.7217 | 538.4 | 464.2 | |
| 2.53 | 4.79 | 1.82 | 3.46 | 13.49 | 304.99 | -46.73 | 76.59 | 0.7302 | -659.8 | -610.6 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 18.08 | 303.53 | -48.20 | 70.67 | 0.7533 | -437.0 | -422.5 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 10.66 | 305.55 | -46.18 | 80.45 | 0.7214 | -470.0 | -399.2 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 10.70 | 305.36 | -46.36 | 80.39 | 0.7236 | 174.0 | 86.9 | |
| 3.48 | 6.79 | 2.53 | 4.94 | 13.32 | 304.63 | -47.09 | 76.87 | 0.7342 | -512.4 | -436.6 | |
| 0.00 | 1.22 | 0.00 | 0.88 | 11.31 | 304.92 | -46.80 | 79.59 | 0.7291 | -467.0 | -446.4 | |
| 4.88 | 11.93 | 3.53 | 8.60 | 11.63 | 304.77 | -46.96 | 79.16 | 0.7312 | -752.2 | -311.7 | |
| 0.00 | 2.53 | 0.00 | 1.84 | 13.03 | 304.43 | -47.29 | 77.28 | 0.7362 | 243.0 | 150.2 | |
| 2.00 | 248.60 | 1.46 | 184.87 | 12.46 | 304.53 | -47.20 | 78.05 | 0.7346 | -317.3 | 390.0 | |
| 1.92 | -47.00 | 1.40 | -47.00 | 11.54 | 304.38 | -47.34 | 79.31 | 0.7356 | -348.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 14.71 | 303.56 | -48.16 | 75.13 | 0.7479 | -550.0 | -462.7 | |
| 1.22 | -47.00 | 0.90 | -47.00 | 13.65 | 303.77 | -47.96 | 76.52 | 0.7444 | -537.9 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.67 | 13.86 | 303.71 | -48.01 | 76.24 | 0.7453 | -626.0 | -562.3 | |
| 2.87 | -47.00 | 2.10 | -47.00 | 11.38 | 304.19 | -47.53 | 79.55 | 0.7377 | 632.6 | 999999 | |
| 1.04 | 1.92 | 0.76 | 1.40 | 10.74 | 304.19 | -47.53 | 80.41 | 0.7373 | 638.7 | 628.8 | |
| 1.22 | -47.00 | 0.90 | -47.00 | 11.14 | 303.74 | -47.98 | 79.91 | 0.7427 | 614.1 | 999999 | |
| 1.13 | -47.00 | 0.84 | -47.00 | 12.77 | 303.26 | -48.46 | 77.76 | 0.7493 | 823.6 | 999999 | |
| 1.74 | -47.00 | 1.29 | -47.00 | 12.05 | 303.44 | -48.28 | 78.70 | 0.7468 | 919.2 | 999999 | |
| 4.88 | -47.00 | 3.65 | -47.00 | 13.24 | 303.09 | -48.63 | 77.14 | 0.7517 | -554.0 | 999999 | |
| 3.13 | -47.00 | 2.34 | -47.00 | 12.07 | 303.21 | -48.52 | 78.70 | 0.7494 | 823.7 | 999999 | |
| 1.48 | -47.00 | 1.10 | -47.00 | 11.83 | 303.22 | -48.51 | 79.02 | 0.7491 | 691.5 | 999999 | |
| 2.44 | -47.00 | 1.82 | -47.00 | 11.66 | 303.03 | -48.70 | 79.25 | 0.7512 | -268.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 10.88 | 303.16 | -48.57 | 80.28 | 0.7493 | 362.0 | 392.8 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 12.55 | 302.76 | -48.96 | 78.09 | 0.7548 | 719.0 | 647.2 | |
| 1.48 | -47.00 | 1.11 | -47.00 | 11.80 | 302.90 | -48.83 | 79.07 | 0.7527 | 335.3 | 999999 | |
| 3.22 | -47.00 | 2.42 | -47.00 | 12.00 | 302.71 | -49.01 | 78.82 | 0.7550 | 811.1 | 999999 | |
| 2.53 | -47.00 | 1.91 | -47.00 | 12.13 | 302.44 | -49.28 | 78.67 | 0.7580 | 819.4 | 999999 | |
| 1.74 | -47.00 | 1.32 | -47.00 | 12.31 | 302.30 | -49.42 | 78.45 | 0.7597 | 736.3 | 999999 | |
| 9.58 | -47.00 | 7.28 | -47.00 | 11.84 | 302.19 | -49.54 | 79.07 | 0.7607 | 766.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.80 | 13.06 | 301.82 | -49.90 | 77.50 | 0.7656 | -197.0 | -139.7 | |
| 0.96 | -47.00 | 0.73 | -47.00 | 11.73 | 301.88 | -49.84 | 79.23 | 0.7640 | 483.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.87 | 12.37 | 301.53 | -50.20 | 78.42 | 0.7683 | 574.0 | 481.5 | |
| 0.00 | 1.04 | 0.00 | 0.80 | 11.00 | 301.77 | -49.95 | 80.20 | 0.7649 | 562.0 | 519.6 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 13.46 | 301.03 | -50.69 | 77.05 | 0.7745 | -324.0 | -250.2 | |
| 3.48 | 5.05 | 2.75 | 3.98 | 14.46 | 300.57 | -51.15 | 75.80 | 0.7802 | 747.1 | 661.7 | |
| 5.31 | 18.55 | 4.13 | 14.43 | 10.67 | 300.99 | -50.74 | 80.66 | 0.7734 | -608.1 | -24.9 | |
| 4.01 | 30.74 | 3.15 | 24.33 | 11.96 | 300.52 | -51.20 | 79.01 | 0.7790 | 792.8 | 588.0 | |
| 0.00 | 5.05 | 0.00 | 4.02 | 13.26 | 300.00 | -51.72 | 77.39 | 0.7852 | 844.0 | 656.6 | |
| 18.63 | 31.35 | 14.93 | 25.10 | 13.88 | 299.76 | -51.96 | 76.62 | 0.7882 | 772.9 | 546.8 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 12.50 | 299.98 | -51.75 | 78.36 | 0.7850 | 608.0 | 536.6 | |
| 10.27 | -75.00 | 8.16 | -75.00 | 12.08 | 300.04 | -51.68 | 78.89 | 0.7841 | 767.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.61 | 13.23 | 299.61 | -52.11 | 77.45 | 0.7893 | 456.0 | 413.0 | |
| 0.00 | 12.54 | 0.00 | 9.96 | 11.20 | 300.03 | -51.70 | 80.02 | 0.7839 | 792.0 | 610.7 | |
| 0.00 | 2.70 | 0.00 | 2.21 | 14.56 | 298.93 | -52.79 | 75.84 | 0.7973 | 518.0 | 468.5 | |
| 0.00 | 3.05 | 0.00 | 2.48 | 13.95 | 299.03 | -52.69 | 76.59 | 0.7958 | 598.0 | 569.8 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 12.13 | 299.48 | -52.24 | 78.86 | 0.7900 | 652.0 | 569.4 | |
| 0.35 | 0.96 | 0.28 | 0.77 | 11.92 | 299.44 | -52.28 | 79.13 | 0.7904 | 565.8 | 525.3 | |
| 0.00 | 3.31 | 0.00 | 2.67 | 12.21 | 299.31 | -52.41 | 78.77 | 0.7919 | 554.0 | 515.2 | |
| 3.83 | 36.22 | 3.11 | 29.59 | 12.59 | 299.10 | -52.62 | 78.30 | 0.7943 | 793.9 | 333.0 | |
| 0.00 | 7.66 | 0.00 | 6.32 | 14.40 | 298.47 | -53.25 | 76.08 | 0.8019 | 503.0 | 388.5 | |
| 1.13 | 2.00 | 0.91 | 1.61 | 11.57 | 299.28 | -52.44 | 79.58 | 0.7919 | 552.5 | 432.0 | |
| 8.53 | -87.00 | 6.97 | -87.00 | 12.81 | 298.83 | -52.89 | 78.04 | 0.7972 | 657.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.92 | 12.27 | 298.89 | -52.84 | 78.72 | 0.7963 | 586.0 | 449.6 | |
| 0.00 | 3.66 | 0.00 | 2.98 | 11.93 | 298.88 | -52.84 | 79.14 | 0.7962 | 269.0 | 334.4 | |
| 0.00 | 2.09 | 0.00 | 1.70 | 11.42 | 298.92 | -52.80 | 79.78 | 0.7956 | 369.0 | 383.0 | |
| 0.00 | 1.39 | 0.00 | 1.14 | 11.74 | 298.73 | -52.99 | 79.39 | 0.7977 | 327.0 | 296.6 | |
| 0.00 | 1.48 | 0.00 | 1.21 | 11.53 | 298.79 | -52.93 | 79.65 | 0.7970 | 317.0 | 268.2 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 13.25 | 298.18 | -53.54 | 77.53 | 0.8041 | 267.0 | 232.6 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 12.94 | 298.17 | -53.55 | 77.91 | 0.8040 | 204.0 | 160.7 | |
| 0.00 | 1.92 | 0.00 | 1.59 | 12.63 | 298.06 | -53.66 | 78.31 | 0.8049 | 190.0 | 163.0 | |
| 1.22 | 1.57 | 1.02 | 1.31 | 11.83 | 297.88 | -53.84 | 79.32 | 0.8064 | 251.0 | 314.0 | |
| 0.00 | 3.13 | 0.00 | 2.62 | 11.52 | 297.82 | -53.91 | 79.70 | 0.8070 | 435.0 | 242.9 | |
| 0.00 | 1.57 | 0.00 | 1.33 | 13.01 | 297.10 | -54.63 | 77.89 | 0.8147 | 320.0 | 273.9 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 11.46 | 297.47 | -54.26 | 79.78 | 0.8105 | -330.0 | -278.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
