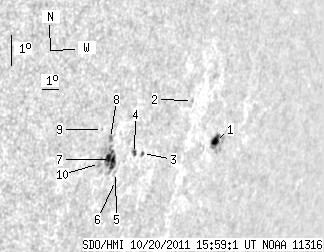

SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.02 | 53.10 | 17.97 | 52.86 | -12.01 | 48.97 | 57.80 | 252.72 | 0.8676 | -188.1 | -310.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.57 | 16.11 | 6.25 | 18.18 | -12.03 | 52.87 | 61.70 | 253.71 | 0.8990 | 547.3 | -63.5 | |
| 0.00 | 1.04 | 0.00 | 1.09 | -10.62 | 50.92 | 59.75 | 254.80 | 0.8817 | 559.0 | 499.2 | |
| 0.87 | 1.22 | 0.85 | 1.19 | -12.06 | 48.46 | 57.28 | 252.57 | 0.8644 | -215.7 | -127.6 | |
| 2.00 | 2.87 | 1.93 | 2.77 | -12.02 | 47.99 | 56.82 | 252.49 | 0.8604 | -505.0 | -379.1 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -12.54 | 47.11 | 55.93 | 251.65 | 0.8540 | -288.0 | -222.3 | |
| 0.00 | 1.22 | 0.00 | 1.16 | -12.80 | 47.19 | 56.02 | 251.39 | 0.8553 | -259.0 | -180.2 | |
| 9.58 | 23.33 | 8.94 | 21.73 | -12.10 | 46.69 | 55.52 | 252.03 | 0.8494 | -547.6 | -492.2 | |
| 0.00 | 2.96 | 0.00 | 2.74 | -11.43 | 46.49 | 55.31 | 252.74 | 0.8461 | -658.0 | -549.8 | |
| 0.00 | 0.87 | 0.00 | 0.79 | -11.11 | 45.97 | 54.79 | 252.96 | 0.8407 | -520.0 | -440.5 | |
| 0.00 | 3.22 | 0.00 | 2.96 | -12.18 | 46.12 | 54.95 | 251.78 | 0.8446 | -709.0 | -619.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
