SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216.69 | 853.79 | 157.07 | 611.26 | 11.67 | 304.86 | -46.31 | 79.08 | 0.7217 | 13.3 | 52.6 | |
|
previous
or next observation for the same group /

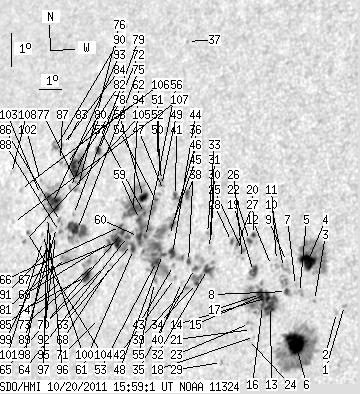

back to the solar disc SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.16 | 10.54 | 312.14 | -39.03 | 79.98 | 0.6310 | -771.0 | -692.1 | |
| 0.00 | 2.00 | 0.00 | 1.28 | 10.31 | 311.86 | -39.31 | 80.37 | 0.6345 | -695.0 | -614.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 10.62 | 310.95 | -40.23 | 79.99 | 0.6469 | -716.0 | -615.5 | |
| 15.67 | 71.83 | 10.24 | 46.79 | 11.77 | 310.47 | -40.70 | 78.29 | 0.6543 | -934.2 | -474.0 | |
| 0.00 | 4.61 | 0.00 | 3.02 | 10.82 | 310.31 | -40.86 | 79.75 | 0.6553 | -814.0 | -771.8 | |
| 27.95 | 129.38 | 18.24 | 84.33 | 9.32 | 310.38 | -40.79 | 82.04 | 0.6533 | -1045.3 | -435.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 11.02 | 310.12 | -41.06 | 79.47 | 0.6581 | -814.0 | -721.8 | |
| 2.44 | 13.15 | 1.61 | 8.68 | 10.82 | 309.79 | -41.39 | 79.81 | 0.6621 | -831.3 | -673.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 11.71 | 309.63 | -41.55 | 78.48 | 0.6651 | -485.0 | -392.4 | |
| 0.00 | 8.18 | 0.00 | 5.42 | 11.53 | 309.54 | -41.63 | 78.77 | 0.6660 | -609.0 | -551.8 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 11.72 | 309.22 | -41.96 | 78.53 | 0.6703 | -285.0 | -262.6 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 11.56 | 309.04 | -42.13 | 78.79 | 0.6724 | -440.0 | -369.9 | |
| 6.18 | 67.47 | 4.11 | 45.16 | 10.33 | 309.21 | -41.96 | 80.60 | 0.6690 | -979.5 | -291.8 | |
| 1.48 | -13.00 | 0.99 | -13.00 | 10.59 | 309.05 | -42.13 | 80.22 | 0.6714 | -912.5 | 999999 | |
| 0.35 | -13.00 | 0.23 | -13.00 | 10.71 | 308.99 | -42.19 | 80.06 | 0.6722 | -829.0 | 999999 | |
| 1.04 | -13.00 | 0.70 | -13.00 | 10.34 | 308.88 | -42.29 | 80.61 | 0.6732 | -638.0 | 999999 | |
| 6.18 | -13.00 | 4.14 | -13.00 | 10.66 | 308.75 | -42.43 | 80.15 | 0.6752 | -623.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 9.40 | 308.71 | -42.47 | 82.03 | 0.6749 | -476.0 | -390.9 | |
| 6.97 | 9.93 | 4.70 | 6.70 | 11.33 | 308.34 | -42.84 | 79.20 | 0.6810 | -566.6 | 25.8 | |
| 1.74 | 6.09 | 1.18 | 4.13 | 12.44 | 308.12 | -43.05 | 77.61 | 0.6849 | -631.0 | -559.6 | |
| 0.00 | 1.31 | 0.00 | 0.88 | 9.60 | 308.55 | -42.62 | 81.74 | 0.6770 | -529.0 | -420.7 | |
| 2.26 | -20.00 | 1.54 | -20.00 | 12.25 | 307.99 | -43.18 | 77.90 | 0.6863 | -704.7 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.93 | 9.77 | 308.44 | -42.73 | 81.49 | 0.6785 | -485.0 | -405.8 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 9.29 | 308.47 | -42.70 | 82.20 | 0.6778 | -469.0 | -357.8 | |
| 1.22 | 2.61 | 0.83 | 1.78 | 11.93 | 307.76 | -43.41 | 78.39 | 0.6888 | -730.4 | -593.2 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 11.69 | 307.81 | -43.36 | 78.73 | 0.6879 | -586.0 | -455.3 | |
| 1.13 | 4.61 | 0.77 | 3.16 | 12.09 | 307.52 | -43.66 | 78.18 | 0.6920 | -475.9 | -415.9 | |
| 1.83 | 2.35 | 1.26 | 1.61 | 12.17 | 307.25 | -43.93 | 78.11 | 0.6954 | -434.6 | -446.7 | |
| 0.00 | 1.74 | 0.00 | 1.19 | 8.54 | 307.46 | -43.71 | 83.35 | 0.6903 | -545.0 | -474.0 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 12.08 | 306.36 | -44.81 | 78.33 | 0.7060 | -427.0 | -280.9 | |
| 0.00 | 1.92 | 0.00 | 1.33 | 11.90 | 306.36 | -44.81 | 78.59 | 0.7059 | 441.0 | 285.3 | |
| 5.31 | 33.95 | 3.70 | 23.71 | 11.27 | 306.40 | -44.77 | 79.48 | 0.7048 | 828.8 | 448.6 | |
| 0.00 | 1.65 | 0.00 | 1.16 | 12.34 | 306.18 | -44.99 | 77.99 | 0.7085 | -495.0 | -379.4 | |
| 1.31 | -32.00 | 0.91 | -32.00 | 10.82 | 306.02 | -45.16 | 80.15 | 0.7092 | -365.4 | 999999 | |
| 2.00 | -32.00 | 1.41 | -32.00 | 11.26 | 305.84 | -45.33 | 79.54 | 0.7116 | 705.2 | 999999 | |
| 2.35 | 2.87 | 1.66 | 2.03 | 11.45 | 305.54 | -45.63 | 79.30 | 0.7154 | 642.8 | 593.7 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 18.04 | 303.65 | -47.52 | 70.59 | 0.7459 | -429.0 | -293.4 | |
| 1.74 | 4.35 | 1.25 | 3.11 | 13.47 | 304.99 | -46.18 | 76.55 | 0.7238 | -715.3 | -669.6 | |
| 0.00 | 2.18 | 0.00 | 1.53 | 10.67 | 305.61 | -45.56 | 80.39 | 0.7140 | -408.0 | -391.8 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 10.81 | 305.37 | -45.81 | 80.22 | 0.7170 | -221.0 | -158.4 | |
| 2.26 | 9.05 | 1.63 | 6.52 | 13.38 | 304.52 | -46.65 | 76.73 | 0.7292 | -443.5 | -378.5 | |
| 0.00 | 2.18 | 0.00 | 1.55 | 10.90 | 305.04 | -46.13 | 80.10 | 0.7210 | 66.0 | 119.9 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 11.29 | 304.92 | -46.26 | 79.58 | 0.7227 | -475.0 | -435.0 | |
| 4.79 | 253.01 | 3.43 | 186.12 | 11.64 | 304.80 | -46.38 | 79.10 | 0.7244 | -756.9 | 376.1 | |
| 2.18 | -44.00 | 1.57 | -44.00 | 12.51 | 304.60 | -46.57 | 77.92 | 0.7274 | -310.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 12.17 | 304.54 | -46.63 | 78.39 | 0.7278 | -299.0 | -196.0 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 13.49 | 303.95 | -47.22 | 76.65 | 0.7359 | -532.0 | -426.0 | |
| 1.48 | -44.00 | 1.07 | -44.00 | 11.58 | 304.36 | -46.81 | 79.22 | 0.7294 | -366.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.46 | 13.64 | 303.82 | -47.35 | 76.47 | 0.7375 | -654.0 | -547.4 | |
| 0.00 | 1.83 | 0.00 | 1.34 | 13.79 | 303.78 | -47.39 | 76.27 | 0.7381 | -677.0 | -568.4 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 13.96 | 303.64 | -47.53 | 76.05 | 0.7399 | -566.0 | -441.1 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 14.49 | 303.40 | -47.77 | 75.37 | 0.7432 | -532.0 | -412.8 | |
| 4.35 | -44.00 | 3.15 | -44.00 | 11.36 | 304.14 | -47.03 | 79.54 | 0.7318 | 662.4 | 999999 | |
| 1.39 | -44.00 | 1.02 | -44.00 | 13.20 | 303.66 | -47.51 | 77.08 | 0.7389 | -265.9 | 999999 | |
| 0.26 | 1.92 | 0.19 | 1.38 | 10.73 | 304.19 | -46.99 | 80.40 | 0.7309 | 674.0 | 653.3 | |
| 1.39 | -44.00 | 1.02 | -44.00 | 12.07 | 303.49 | -47.69 | 78.63 | 0.7399 | 911.6 | 999999 | |
| 1.13 | -44.00 | 0.83 | -44.00 | 12.75 | 303.27 | -47.90 | 77.73 | 0.7429 | 835.1 | 999999 | |
| 5.05 | -44.00 | 3.74 | -44.00 | 13.22 | 303.11 | -48.07 | 77.11 | 0.7453 | -578.6 | 999999 | |
| 1.04 | -44.00 | 0.77 | -44.00 | 12.55 | 303.09 | -48.08 | 78.01 | 0.7448 | 716.3 | 999999 | |
| 3.13 | -44.00 | 2.31 | -44.00 | 12.04 | 303.17 | -48.00 | 78.68 | 0.7435 | 846.6 | 999999 | |
| 2.70 | -44.00 | 2.00 | -44.00 | 11.64 | 303.04 | -48.14 | 79.24 | 0.7448 | -285.5 | 999999 | |
| 16.28 | -44.00 | 12.13 | -44.00 | 12.83 | 302.75 | -48.43 | 77.66 | 0.7490 | 584.0 | 999999 | |
| 1.31 | -44.00 | 0.97 | -44.00 | 11.78 | 302.91 | -48.26 | 79.05 | 0.7463 | 328.7 | 999999 | |
| 2.44 | -44.00 | 1.82 | -44.00 | 12.01 | 302.67 | -48.50 | 78.77 | 0.7492 | 826.9 | 999999 | |
| 2.00 | -44.00 | 1.50 | -44.00 | 12.11 | 302.42 | -48.76 | 78.65 | 0.7522 | 823.7 | 999999 | |
| 1.04 | -44.00 | 0.78 | -44.00 | 12.29 | 302.28 | -48.89 | 78.43 | 0.7538 | 730.8 | 999999 | |
| 7.57 | -44.00 | 5.69 | -44.00 | 11.83 | 302.25 | -48.92 | 79.04 | 0.7538 | 832.6 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.18 | 11.10 | 302.14 | -49.03 | 80.02 | 0.7546 | 687.0 | 611.8 | |
| 1.83 | -44.00 | 1.38 | -44.00 | 11.77 | 301.89 | -49.28 | 79.14 | 0.7578 | 472.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.12 | 11.04 | 301.83 | -49.34 | 80.11 | 0.7581 | 514.0 | 531.0 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 9.48 | 301.93 | -49.25 | 82.17 | 0.7565 | 421.0 | 463.0 | |
| 3.57 | 6.09 | 2.78 | 4.75 | 14.48 | 300.61 | -50.56 | 75.72 | 0.7739 | 713.8 | 609.6 | |
| 0.00 | 1.83 | 0.00 | 1.39 | 11.14 | 301.43 | -49.74 | 80.01 | 0.7626 | -164.0 | -69.9 | |
| 6.97 | 14.54 | 5.35 | 11.18 | 10.68 | 301.01 | -50.16 | 80.62 | 0.7671 | -608.0 | 46.7 | |
| 19.07 | 30.99 | 14.90 | 24.24 | 12.05 | 300.29 | -50.88 | 78.88 | 0.7755 | 769.1 | 571.3 | |
| 0.00 | 3.13 | 0.00 | 2.47 | 13.24 | 299.96 | -51.21 | 77.37 | 0.7798 | 832.0 | 694.1 | |
| 0.00 | 1.13 | 0.00 | 0.89 | 13.48 | 299.84 | -51.33 | 77.08 | 0.7813 | 676.0 | 649.9 | |
| 10.53 | 32.47 | 8.37 | 25.71 | 13.86 | 299.63 | -51.55 | 76.61 | 0.7838 | 880.9 | 572.9 | |
| 0.00 | 1.22 | 0.00 | 0.96 | 12.48 | 299.98 | -51.19 | 78.34 | 0.7791 | 643.0 | 518.5 | |
| 0.00 | 2.18 | 0.00 | 1.73 | 13.28 | 299.60 | -51.57 | 77.36 | 0.7836 | 412.0 | 410.2 | |
| 0.00 | 11.58 | 0.00 | 9.10 | 11.18 | 299.98 | -51.19 | 80.02 | 0.7785 | 566.0 | 594.2 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 13.95 | 299.20 | -51.98 | 76.54 | 0.7884 | 577.0 | 559.7 | |
| 0.00 | 1.13 | 0.00 | 0.91 | 14.54 | 298.95 | -52.22 | 75.81 | 0.7914 | 445.0 | 394.6 | |
| 0.00 | 1.13 | 0.00 | 0.92 | 14.53 | 298.80 | -52.37 | 75.84 | 0.7929 | 487.0 | 466.9 | |
| 0.00 | 0.52 | 0.00 | 0.41 | 10.48 | 299.95 | -51.22 | 80.92 | 0.7786 | -291.0 | -184.2 | |
| 0.00 | 2.96 | 0.00 | 2.36 | 12.23 | 299.41 | -51.76 | 78.71 | 0.7851 | 586.0 | 555.6 | |
| 0.00 | 2.87 | 0.00 | 2.32 | 14.04 | 298.86 | -52.31 | 76.44 | 0.7919 | 601.0 | 467.8 | |
| 0.70 | 2.09 | 0.55 | 1.66 | 11.93 | 299.44 | -51.73 | 79.09 | 0.7846 | 527.2 | 530.4 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 12.04 | 299.26 | -51.91 | 78.96 | 0.7865 | 482.0 | 439.8 | |
| 0.70 | 6.44 | 0.57 | 5.25 | 14.41 | 298.49 | -52.69 | 76.01 | 0.7961 | 583.6 | 375.2 | |
| 0.00 | 1.57 | 0.00 | 1.25 | 11.59 | 299.33 | -51.84 | 79.53 | 0.7856 | 605.0 | 528.9 | |
| 0.00 | 1.39 | 0.00 | 1.11 | 11.80 | 299.28 | -51.89 | 79.27 | 0.7862 | 505.0 | 430.4 | |
| 19.68 | 40.40 | 15.85 | 32.59 | 12.74 | 298.87 | -52.31 | 78.10 | 0.7911 | 674.9 | 233.0 | |
| 0.00 | 1.04 | 0.00 | 0.85 | 13.87 | 298.52 | -52.66 | 76.70 | 0.7954 | 431.0 | 346.2 | |
| 0.00 | 2.79 | 0.00 | 2.24 | 11.93 | 298.99 | -52.18 | 79.12 | 0.7893 | 460.0 | 383.3 | |
| 0.00 | 1.39 | 0.00 | 1.12 | 12.30 | 298.74 | -52.43 | 78.65 | 0.7922 | 341.0 | 332.7 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 12.06 | 298.81 | -52.37 | 78.95 | 0.7913 | 292.0 | 249.8 | |
| 0.00 | 2.44 | 0.00 | 1.96 | 11.47 | 298.92 | -52.26 | 79.70 | 0.7899 | 342.0 | 416.5 | |
| 0.00 | 2.87 | 0.00 | 2.30 | 11.11 | 299.01 | -52.16 | 80.15 | 0.7888 | 438.0 | 495.8 | |
| 0.00 | 1.22 | 0.00 | 0.99 | 11.78 | 298.63 | -52.54 | 79.32 | 0.7930 | 270.0 | 220.2 | |
| 0.00 | 0.70 | 0.00 | 0.56 | 11.57 | 298.69 | -52.48 | 79.58 | 0.7924 | 303.0 | 270.5 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 13.38 | 298.06 | -53.11 | 77.35 | 0.7998 | 367.0 | 309.5 | |
| 0.00 | 0.70 | 0.00 | 0.57 | 12.96 | 298.19 | -52.98 | 77.86 | 0.7982 | 209.0 | 200.0 | |
| 1.39 | 1.74 | 1.15 | 1.43 | 11.78 | 297.87 | -53.30 | 79.35 | 0.8009 | 297.4 | 250.2 | |
| 1.31 | 1.39 | 1.08 | 1.15 | 11.50 | 297.79 | -53.38 | 79.70 | 0.8016 | 352.9 | 134.0 | |
| 0.00 | 1.57 | 0.00 | 1.31 | 13.03 | 297.13 | -54.04 | 77.83 | 0.8090 | 361.0 | 257.8 | |
| 0.00 | 0.96 | 0.00 | 0.80 | 12.02 | 297.07 | -54.10 | 79.08 | 0.8091 | -345.0 | -295.8 | |
| 0.00 | 0.78 | 0.00 | 0.67 | 13.47 | 296.51 | -54.67 | 77.33 | 0.8154 | 330.0 | 300.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
