SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.97 | 138.80 | 31.37 | 80.49 | -21.20 | 334.34 | -16.83 | 148.81 | 0.5226 | -222.5 | -196.7 | |
|
previous
or next observation for the same group /

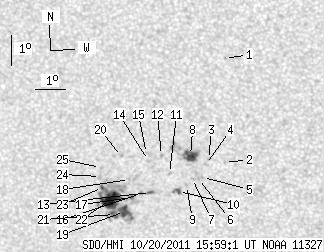

back to the solar disc SDO HMI 2011-10-20 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.38 | -16.78 | 337.68 | -13.50 | 149.28 | 0.4393 | -797.0 | -646.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -20.18 | 337.40 | -13.77 | 152.55 | 0.4868 | 951.0 | 751.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -20.10 | 336.88 | -14.29 | 151.60 | 0.4893 | 866.0 | 707.6 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -20.27 | 336.77 | -14.41 | 151.58 | 0.4924 | 703.0 | 484.6 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -20.70 | 336.63 | -14.55 | 151.79 | 0.4991 | 647.0 | 536.0 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -20.74 | 336.49 | -14.68 | 151.61 | 0.5006 | 559.0 | 498.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -20.74 | 336.29 | -14.88 | 151.30 | 0.5021 | 483.0 | 500.4 | |
| 10.45 | 22.29 | 5.94 | 12.67 | -19.98 | 336.30 | -14.87 | 150.52 | 0.4921 | 969.8 | 657.7 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -20.98 | 336.07 | -15.10 | 151.18 | 0.5068 | 734.0 | 622.3 | |
| 2.26 | 4.18 | 1.30 | 2.41 | -21.19 | 335.78 | -15.39 | 150.94 | 0.5116 | 694.5 | 553.8 | |
| 0.00 | 1.65 | 0.00 | 0.95 | -20.60 | 335.55 | -15.63 | 149.96 | 0.5057 | -125.0 | -116.5 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -20.01 | 335.34 | -15.83 | 149.00 | 0.4997 | 591.0 | 345.1 | |
| 1.48 | 2.96 | 0.86 | 1.71 | -21.25 | 334.84 | -16.33 | 149.56 | 0.5193 | -677.2 | -583.4 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -20.18 | 334.90 | -16.28 | 148.49 | 0.5055 | 676.0 | 442.3 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -19.95 | 334.85 | -16.32 | 148.18 | 0.5029 | 642.0 | 425.7 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -21.29 | 334.50 | -16.67 | 149.09 | 0.5224 | -784.0 | -596.0 | |
| 1.13 | 91.33 | 0.66 | 53.37 | -21.43 | 334.19 | -16.99 | 148.77 | 0.5266 | -955.5 | -533.7 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -20.83 | 334.19 | -16.98 | 148.13 | 0.5191 | -20.0 | -59.1 | |
| 9.40 | -17.00 | 5.50 | -17.00 | -21.91 | 333.89 | -17.28 | 148.84 | 0.5348 | -891.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.08 | 334.01 | -17.16 | 147.02 | 0.5112 | 729.0 | 507.7 | |
| 4.18 | -17.00 | 2.45 | -17.00 | -22.02 | 333.54 | -17.63 | 148.45 | 0.5388 | -668.4 | 999999 | |
| 24.20 | -17.00 | 14.15 | -17.00 | -21.52 | 333.47 | -17.70 | 147.82 | 0.5333 | -981.8 | 999999 | |
| 0.87 | -17.00 | 0.51 | -17.00 | -21.13 | 333.25 | -17.92 | 147.08 | 0.5302 | -865.8 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.06 | -20.76 | 333.23 | -17.95 | 146.64 | 0.5260 | -407.0 | -324.8 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -20.46 | 333.26 | -17.91 | 146.36 | 0.5221 | -784.0 | -546.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
