SDO HMI 2011-10-20 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.88 | 26.90 | 4.96 | 14.83 | -15.89 | 5.34 | 14.71 | 213.94 | 0.4377 | 174.6 | 137.9 | |
|
previous
or next observation for the same group /

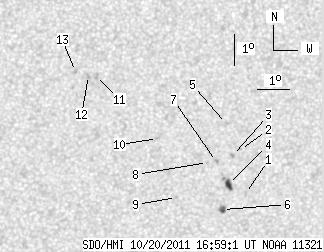

back to the solar disc SDO HMI 2011-10-20 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.68 | -17.02 | 6.97 | 16.35 | 215.41 | 0.4665 | 675.0 | 482.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -15.59 | 6.69 | 16.07 | 216.85 | 0.4464 | 726.0 | 517.8 | |
| 0.00 | 1.92 | 0.00 | 1.06 | -15.78 | 6.45 | 15.82 | 216.18 | 0.4464 | 825.0 | 629.0 | |
| 5.31 | 7.66 | 2.96 | 4.26 | -16.71 | 6.39 | 15.77 | 214.85 | 0.4575 | 849.6 | 606.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -14.75 | 6.17 | 15.55 | 217.15 | 0.4311 | 905.0 | 744.7 | |
| 3.57 | 4.27 | 2.00 | 2.39 | -17.51 | 6.27 | 15.65 | 213.61 | 0.4666 | -850.6 | -544.1 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -15.96 | 5.94 | 15.32 | 215.07 | 0.4441 | 825.0 | 691.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -15.98 | 5.66 | 15.04 | 214.53 | 0.4418 | 492.0 | 420.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -17.09 | 4.75 | 14.12 | 211.49 | 0.4484 | -764.0 | -534.2 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -15.18 | 4.00 | 13.38 | 212.55 | 0.4169 | 759.0 | 580.4 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -13.14 | 1.97 | 11.34 | 211.13 | 0.3721 | -704.0 | -583.2 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -13.13 | 1.72 | 11.09 | 210.58 | 0.3700 | -897.0 | -780.6 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -13.00 | 1.30 | 10.68 | 209.83 | 0.3647 | -869.0 | -786.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
