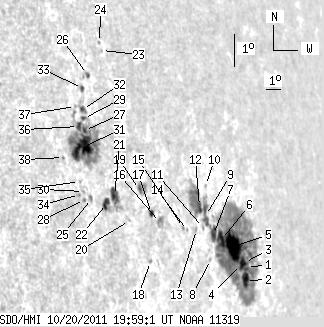

SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.21 | 494.01 | 123.92 | 566.53 | 9.51 | 53.49 | 64.53 | 278.01 | 0.8993 | -117.2 | -88.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 319.66 | 3.15 | 398.85 | 7.77 | 56.90 | 67.93 | 276.16 | 0.9252 | 437.0 | -162.2 | |
| 6.35 | -1.00 | 8.14 | -1.00 | 7.39 | 56.69 | 67.73 | 275.75 | 0.9240 | -469.2 | 999999 | |
| 1.22 | -1.00 | 1.57 | -1.00 | 7.93 | 56.79 | 67.82 | 276.33 | 0.9245 | 189.4 | 999999 | |
| 3.48 | -1.00 | 4.44 | -1.00 | 7.89 | 56.53 | 67.57 | 276.28 | 0.9228 | -326.4 | 999999 | |
| 24.29 | -1.00 | 30.30 | -1.00 | 8.47 | 56.10 | 67.14 | 276.89 | 0.9197 | -676.4 | 999999 | |
| 5.22 | -1.00 | 6.32 | -1.00 | 8.76 | 55.28 | 66.31 | 277.16 | 0.9139 | -805.0 | 999999 | |
| 6.44 | -1.00 | 7.64 | -1.00 | 8.95 | 54.74 | 65.78 | 277.36 | 0.9101 | -680.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.01 | 8.24 | 54.28 | 65.32 | 276.55 | 0.9070 | -585.0 | -498.1 | |
| 8.36 | -1.00 | 9.76 | -1.00 | 9.56 | 54.37 | 65.41 | 278.01 | 0.9073 | -621.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.82 | 10.44 | 54.71 | 65.75 | 278.99 | 0.9096 | -274.0 | -300.5 | |
| 0.00 | 1.57 | 0.00 | 1.81 | 9.22 | 54.10 | 65.14 | 277.63 | 0.9054 | -590.0 | -532.4 | |
| 3.92 | -1.00 | 4.52 | -1.00 | 9.86 | 54.04 | 65.08 | 278.34 | 0.9048 | -840.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.68 | 9.20 | 53.59 | 64.63 | 277.60 | 0.9016 | -657.0 | -580.8 | |
| 0.00 | 0.96 | 0.00 | 1.06 | 9.23 | 52.96 | 64.00 | 277.60 | 0.8969 | -560.0 | -506.6 | |
| 0.00 | 1.13 | 0.00 | 1.25 | 9.34 | 52.72 | 63.76 | 277.72 | 0.8950 | -666.0 | -597.5 | |
| 0.00 | 6.44 | 0.00 | 6.76 | 9.61 | 51.26 | 62.30 | 277.99 | 0.8835 | -132.0 | -160.1 | |
| 1.92 | 3.13 | 1.98 | 3.24 | 9.92 | 50.78 | 61.81 | 278.34 | 0.8795 | 185.0 | 55.4 | |
| 0.00 | 1.48 | 0.00 | 1.51 | 8.51 | 50.29 | 61.33 | 276.72 | 0.8757 | 465.0 | 365.9 | |
| 2.96 | 9.92 | 3.01 | 10.15 | 10.69 | 50.27 | 61.30 | 279.21 | 0.8752 | 334.1 | -107.5 | |
| 0.00 | 0.87 | 0.00 | 0.86 | 9.83 | 49.36 | 60.39 | 278.21 | 0.8676 | 231.0 | 207.5 | |
| 8.18 | 13.58 | 7.94 | 13.19 | 10.64 | 48.69 | 59.73 | 279.14 | 0.8618 | 405.6 | 105.2 | |
| 4.96 | 9.14 | 4.74 | 8.73 | 10.44 | 48.15 | 59.18 | 278.91 | 0.8570 | 586.8 | 326.5 | |
| 0.00 | 1.04 | 0.00 | 1.04 | 14.98 | 49.62 | 60.66 | 284.15 | 0.8704 | -440.0 | -397.1 | |
| 0.00 | 0.87 | 0.00 | 0.87 | 15.23 | 49.62 | 60.65 | 284.43 | 0.8705 | -472.0 | -381.4 | |
| 0.00 | 2.35 | 0.00 | 2.19 | 10.66 | 47.33 | 58.37 | 279.17 | 0.8497 | 410.0 | 362.0 | |
| 0.00 | 2.09 | 0.00 | 2.02 | 14.34 | 48.46 | 59.49 | 283.46 | 0.8603 | 346.0 | 230.4 | |
| 1.65 | 103.16 | 1.56 | 96.81 | 12.70 | 47.61 | 58.65 | 281.57 | 0.8525 | 518.4 | 178.2 | |
| 0.00 | 1.22 | 0.00 | 1.12 | 10.66 | 46.93 | 57.96 | 279.17 | 0.8460 | 660.0 | 582.1 | |
| 1.48 | -27.00 | 1.40 | -27.00 | 13.06 | 47.69 | 58.72 | 281.99 | 0.8532 | 457.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 10.90 | 46.94 | 57.98 | 279.46 | 0.8461 | 657.0 | 551.8 | |
| 22.72 | -27.00 | 21.22 | -27.00 | 12.21 | 47.32 | 58.35 | 280.99 | 0.8497 | 709.3 | 999999 | |
| 2.26 | 4.61 | 2.14 | 4.36 | 13.33 | 47.74 | 58.77 | 282.30 | 0.8537 | 405.5 | 87.6 | |
| 1.31 | 2.26 | 1.24 | 2.15 | 13.95 | 47.99 | 59.02 | 283.02 | 0.8561 | 336.9 | 96.6 | |
| 0.00 | 0.96 | 0.00 | 0.88 | 10.83 | 46.69 | 57.73 | 279.38 | 0.8438 | 576.0 | 557.1 | |
| 0.00 | 1.31 | 0.00 | 1.20 | 11.21 | 46.81 | 57.84 | 279.83 | 0.8449 | 555.0 | 462.8 | |
| 3.05 | -27.00 | 2.85 | -27.00 | 12.84 | 47.31 | 58.35 | 281.75 | 0.8498 | 672.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.06 | 13.45 | 47.37 | 58.40 | 282.46 | 0.8505 | 305.0 | 245.5 | |
| 0.00 | 1.04 | 0.00 | 0.95 | 11.99 | 46.15 | 57.18 | 280.77 | 0.8390 | 580.0 | 519.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
