SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.28 | 191.16 | 55.19 | 109.46 | -21.09 | 334.39 | -14.57 | 152.20 | 0.5045 | -230.5 | -164.5 | |
|
previous
or next observation for the same group /

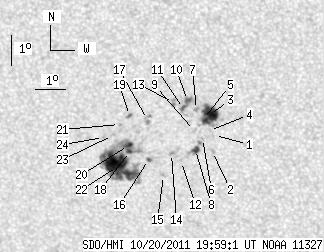

back to the solar disc SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.30 | -20.62 | 336.66 | -12.31 | 155.49 | 0.4829 | 429.0 | 495.8 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -21.15 | 336.55 | -12.42 | 155.78 | 0.4909 | 744.0 | 557.2 | |
| 22.02 | 31.86 | 12.38 | 17.91 | -19.92 | 336.55 | -12.41 | 154.65 | 0.4740 | 959.7 | 605.1 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -20.45 | 336.51 | -12.46 | 155.08 | 0.4816 | 833.0 | 644.3 | |
| 0.87 | -3.00 | 0.49 | -3.00 | -20.06 | 336.35 | -12.62 | 154.42 | 0.4772 | -170.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -20.73 | 336.26 | -12.71 | 154.89 | 0.4869 | 630.0 | 401.1 | |
| 0.00 | 2.52 | 0.00 | 1.42 | -19.77 | 336.14 | -12.82 | 153.77 | 0.4746 | 789.0 | 676.9 | |
| 4.09 | 8.79 | 2.33 | 5.00 | -21.10 | 336.00 | -12.97 | 154.79 | 0.4937 | 745.8 | 577.5 | |
| 0.00 | 2.35 | 0.00 | 1.33 | -20.46 | 336.02 | -12.95 | 154.24 | 0.4849 | -224.0 | -146.4 | |
| 3.22 | 9.23 | 1.81 | 5.19 | -19.48 | 335.87 | -13.09 | 153.01 | 0.4725 | 994.4 | 754.8 | |
| 2.09 | -10.00 | 1.18 | -10.00 | -19.74 | 335.72 | -13.24 | 153.01 | 0.4772 | 842.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -21.51 | 335.50 | -13.47 | 154.34 | 0.5025 | 388.0 | 394.7 | |
| 0.00 | 3.48 | 0.00 | 1.96 | -19.55 | 335.41 | -13.55 | 152.28 | 0.4768 | 743.0 | 694.0 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -21.25 | 335.19 | -13.77 | 153.60 | 0.5010 | -978.0 | -718.0 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -22.00 | 334.85 | -14.11 | 153.75 | 0.5132 | -799.0 | -581.8 | |
| 1.74 | 3.48 | 1.00 | 2.00 | -21.47 | 334.41 | -14.56 | 152.54 | 0.5093 | -772.5 | -596.0 | |
| 0.00 | 4.27 | 0.00 | 2.42 | -20.14 | 334.51 | -14.46 | 151.36 | 0.4911 | 572.0 | 599.4 | |
| 1.92 | 110.73 | 1.10 | 63.98 | -21.22 | 333.81 | -15.16 | 151.33 | 0.5103 | -1035.7 | -632.9 | |
| 1.13 | 2.35 | 0.64 | 1.34 | -20.02 | 333.93 | -15.04 | 150.29 | 0.4938 | 693.0 | 531.0 | |
| 3.05 | -18.00 | 1.75 | -18.00 | -21.02 | 333.79 | -15.17 | 151.11 | 0.5078 | -1124.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -20.33 | 333.57 | -15.40 | 150.03 | 0.5005 | 400.0 | 284.5 | |
| 56.15 | -18.00 | 32.51 | -18.00 | -21.73 | 333.35 | -15.61 | 151.14 | 0.5201 | -979.5 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.10 | -20.70 | 333.30 | -15.67 | 150.00 | 0.5073 | 248.0 | 51.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.77 | 332.99 | -15.97 | 149.60 | 0.5106 | -829.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
