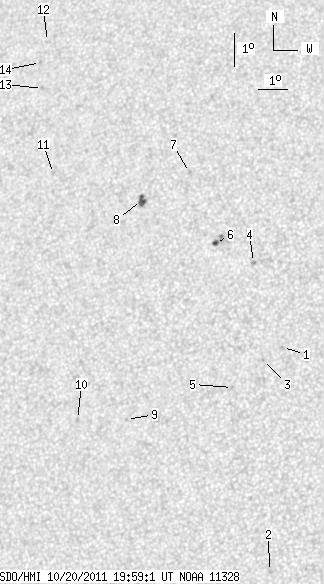

SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.01 | 30.72 | 4.50 | 17.26 | 17.81 | 323.59 | -25.38 | 61.89 | 0.4676 | 668.2 | 485.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.84 | 15.07 | 328.18 | -20.78 | 63.24 | 0.3854 | 776.0 | 539.5 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 8.33 | 328.29 | -20.68 | 80.87 | 0.3554 | 639.0 | 510.3 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 14.68 | 327.56 | -21.41 | 64.74 | 0.3921 | 747.0 | 666.9 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 17.61 | 326.92 | -22.05 | 58.75 | 0.4203 | -1022.0 | -744.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.80 | 326.65 | -22.31 | 67.60 | 0.4005 | 685.0 | 592.2 | |
| 2.09 | 5.22 | 1.15 | 2.88 | 18.14 | 325.55 | -23.41 | 58.99 | 0.4424 | 762.1 | 765.7 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 20.29 | 324.32 | -24.65 | 55.98 | 0.4738 | 910.0 | 704.2 | |
| 5.92 | 6.53 | 3.35 | 3.70 | 19.36 | 322.79 | -26.17 | 59.06 | 0.4872 | 965.8 | 796.4 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 12.71 | 323.21 | -25.76 | 72.29 | 0.4469 | 791.0 | 523.1 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 12.64 | 321.54 | -27.43 | 73.24 | 0.4714 | 746.0 | 605.2 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 20.05 | 319.50 | -29.46 | 60.30 | 0.5340 | 354.0 | 385.3 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 24.13 | 318.31 | -30.65 | 54.46 | 0.5739 | 718.0 | 483.5 | |
| 0.00 | 1.83 | 0.00 | 1.09 | 22.66 | 318.50 | -30.46 | 56.66 | 0.5622 | 868.0 | 615.3 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 23.47 | 318.22 | -30.74 | 55.57 | 0.5706 | 702.0 | 598.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
