SDO HMI 2011-10-20 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.22 | 19.41 | 2.95 | 10.83 | -16.07 | 5.66 | 17.25 | 218.09 | 0.4634 | 538.9 | 515.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

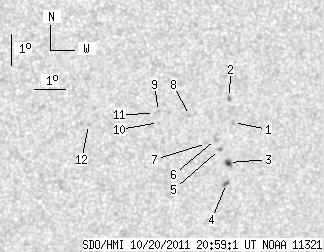

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.83 | -15.50 | 6.51 | 18.10 | 220.29 | 0.4649 | 934.0 | 775.4 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -14.70 | 6.31 | 17.90 | 221.16 | 0.4536 | 874.0 | 737.9 | |
| 3.22 | 4.44 | 1.82 | 2.50 | -16.78 | 6.47 | 18.06 | 218.44 | 0.4794 | 911.3 | 695.2 | |
| 2.00 | 2.35 | 1.13 | 1.33 | -17.46 | 6.48 | 18.06 | 217.54 | 0.4874 | -839.8 | -703.8 | |
| 0.00 | 1.74 | 0.00 | 0.98 | -16.35 | 6.14 | 17.72 | 218.50 | 0.4712 | 671.0 | 585.2 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -16.02 | 5.98 | 17.56 | 218.70 | 0.4658 | 812.0 | 726.7 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -16.14 | 5.69 | 17.28 | 218.09 | 0.4645 | 678.0 | 434.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -15.23 | 5.06 | 16.65 | 218.35 | 0.4475 | 727.0 | 529.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.08 | 4.05 | 15.64 | 216.85 | 0.4359 | 732.0 | 551.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -15.43 | 4.08 | 15.67 | 216.40 | 0.4406 | 836.0 | 587.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.14 | 3.93 | 15.52 | 216.54 | 0.4355 | 613.0 | 500.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.43 | 1.84 | 13.43 | 212.30 | 0.4207 | -608.0 | -457.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
