SDO HMI 2011-10-20 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.71 | 35.87 | 11.81 | 38.69 | -12.17 | 48.39 | 60.53 | 253.26 | 0.8896 | -191.5 | -259.0 | |
|
previous
or next observation for the same group /

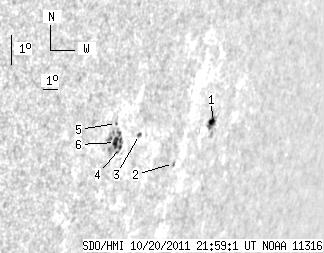

back to the solar disc SDO HMI 2011-10-20 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.13 | 7.14 | 3.97 | 9.05 | -12.05 | 52.94 | 65.08 | 254.44 | 0.9223 | 446.9 | 322.1 | |
| 0.00 | 1.22 | 0.00 | 1.44 | -13.16 | 50.71 | 62.84 | 252.76 | 0.9090 | 148.0 | 250.4 | |
| 1.74 | 2.09 | 1.86 | 2.23 | -12.03 | 48.03 | 60.17 | 253.36 | 0.8875 | -402.8 | -404.0 | |
| 1.31 | 24.38 | 1.35 | 24.91 | -12.34 | 46.99 | 59.13 | 252.75 | 0.8800 | -247.7 | -437.7 | |
| 0.00 | 1.04 | 0.00 | 1.06 | -11.55 | 46.48 | 58.62 | 253.49 | 0.8744 | -540.0 | -490.2 | |
| 4.53 | -4.00 | 4.63 | -4.00 | -12.16 | 46.63 | 58.77 | 252.86 | 0.8767 | -635.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
