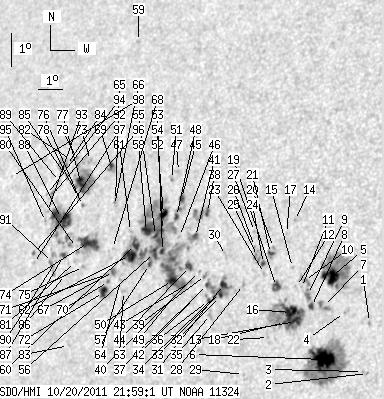

SDO HMI 2011-10-20 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 208.33 | 892.06 | 142.46 | 605.59 | 11.78 | 304.77 | -43.10 | 78.60 | 0.6829 | 23.1 | 72.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-20 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.69 | 10.48 | 312.09 | -35.77 | 79.63 | 0.5865 | -741.0 | -633.4 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 8.96 | 312.21 | -35.65 | 82.22 | 0.5833 | 489.0 | 426.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 9.01 | 312.02 | -35.85 | 82.16 | 0.5861 | 524.0 | 361.9 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 10.73 | 311.12 | -36.74 | 79.36 | 0.6003 | -922.0 | -707.6 | |
| 14.98 | 72.87 | 9.35 | 45.40 | 11.78 | 310.46 | -37.40 | 77.74 | 0.6107 | -1015.6 | -477.8 | |
| 28.56 | 130.16 | 17.76 | 80.88 | 9.28 | 310.51 | -37.35 | 81.83 | 0.6071 | -1103.0 | -468.2 | |
| 0.00 | 6.62 | 0.00 | 4.13 | 10.86 | 310.29 | -37.57 | 79.26 | 0.6117 | -628.0 | -790.9 | |
| 2.52 | 3.40 | 1.59 | 2.13 | 10.84 | 309.84 | -38.02 | 79.37 | 0.6179 | -882.9 | -784.8 | |
| 0.00 | 6.01 | 0.00 | 3.79 | 11.18 | 309.63 | -38.23 | 78.84 | 0.6211 | -893.0 | -794.8 | |
| 0.00 | 6.62 | 0.00 | 4.18 | 11.60 | 309.44 | -38.42 | 78.21 | 0.6241 | -655.0 | -514.7 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 11.38 | 309.36 | -38.50 | 78.56 | 0.6249 | -592.0 | -542.3 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 11.40 | 309.16 | -38.70 | 78.56 | 0.6276 | -486.0 | -476.5 | |
| 4.70 | 70.26 | 2.98 | 44.73 | 10.35 | 309.29 | -38.57 | 80.22 | 0.6247 | -991.9 | -326.5 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 13.37 | 308.74 | -39.13 | 75.54 | 0.6363 | -590.0 | -456.3 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 11.96 | 308.91 | -38.95 | 77.72 | 0.6316 | -665.0 | -506.0 | |
| 10.97 | -13.00 | 6.97 | -13.00 | 10.61 | 309.05 | -38.81 | 79.84 | 0.6281 | -845.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 12.96 | 308.50 | -39.36 | 76.22 | 0.6387 | -656.0 | -511.9 | |
| 0.96 | -13.00 | 0.61 | -13.00 | 10.30 | 308.87 | -39.00 | 80.36 | 0.6303 | -532.6 | 999999 | |
| 6.62 | 7.40 | 4.24 | 4.75 | 11.35 | 308.39 | -39.48 | 78.75 | 0.6378 | -656.5 | -527.3 | |
| 0.00 | 1.57 | 0.00 | 1.01 | 12.51 | 308.06 | -39.80 | 77.00 | 0.6436 | -713.0 | -605.6 | |
| 2.09 | 4.88 | 1.35 | 3.15 | 12.32 | 307.98 | -39.88 | 77.30 | 0.6445 | -782.4 | -651.4 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 9.81 | 308.31 | -39.55 | 81.18 | 0.6373 | -399.0 | -304.6 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 11.71 | 307.85 | -40.01 | 78.27 | 0.6453 | -285.0 | -327.5 | |
| 1.74 | 2.52 | 1.13 | 1.64 | 12.01 | 307.75 | -40.11 | 77.82 | 0.6469 | -747.0 | -627.1 | |
| 0.00 | 6.79 | 0.00 | 4.42 | 12.20 | 307.48 | -40.38 | 77.57 | 0.6508 | -436.0 | -483.0 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 12.50 | 307.30 | -40.56 | 77.15 | 0.6534 | -533.0 | -422.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 12.94 | 307.22 | -40.64 | 76.48 | 0.6552 | -617.0 | -486.0 | |
| 0.00 | 1.74 | 0.00 | 1.14 | 11.33 | 307.07 | -40.79 | 78.96 | 0.6549 | -271.0 | -156.3 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 8.65 | 307.48 | -40.38 | 83.05 | 0.6476 | -560.0 | -449.9 | |
| 0.00 | 2.44 | 0.00 | 1.62 | 12.15 | 306.19 | -41.67 | 77.83 | 0.6672 | -346.0 | -333.0 | |
| 4.09 | 29.52 | 2.71 | 19.57 | 11.28 | 306.27 | -41.59 | 79.13 | 0.6652 | 884.1 | 567.9 | |
| 0.96 | -31.00 | 0.63 | -31.00 | 10.92 | 306.21 | -41.65 | 79.68 | 0.6656 | -393.1 | 999999 | |
| 2.52 | -31.00 | 1.67 | -31.00 | 11.04 | 306.19 | -41.67 | 79.51 | 0.6660 | 605.0 | 999999 | |
| 0.52 | -31.00 | 0.35 | -31.00 | 10.90 | 305.97 | -41.89 | 79.73 | 0.6687 | -375.2 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.78 | 10.36 | 305.90 | -41.97 | 80.56 | 0.6691 | -485.0 | -446.5 | |
| 1.39 | 3.22 | 0.93 | 2.15 | 10.77 | 305.74 | -42.12 | 79.96 | 0.6714 | -474.2 | -245.4 | |
| 1.48 | -31.00 | 0.99 | -31.00 | 11.24 | 305.62 | -42.24 | 79.26 | 0.6734 | 825.1 | 999999 | |
| 2.87 | 14.54 | 1.94 | 9.85 | 13.39 | 305.19 | -42.67 | 76.15 | 0.6815 | -763.0 | -467.2 | |
| 0.00 | 2.52 | 0.00 | 1.69 | 11.51 | 305.49 | -42.37 | 78.89 | 0.6754 | 836.0 | 635.6 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 11.61 | 305.22 | -42.64 | 78.76 | 0.6788 | 459.0 | 330.9 | |
| 3.05 | 277.13 | 2.06 | 192.08 | 12.65 | 304.85 | -43.02 | 77.30 | 0.6847 | -432.9 | 365.1 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 10.79 | 305.12 | -42.74 | 79.98 | 0.6793 | 66.0 | 27.9 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 11.29 | 304.95 | -42.91 | 79.26 | 0.6820 | -402.0 | -376.4 | |
| 4.44 | -41.00 | 3.01 | -41.00 | 11.73 | 304.78 | -43.08 | 78.63 | 0.6845 | -738.0 | 999999 | |
| 3.13 | -41.00 | 2.16 | -41.00 | 13.74 | 304.01 | -43.85 | 75.83 | 0.6964 | -630.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 12.60 | 304.18 | -43.68 | 77.45 | 0.6929 | 666.0 | 540.2 | |
| 0.00 | 1.57 | 0.00 | 1.09 | 14.54 | 303.68 | -44.18 | 74.75 | 0.7015 | -646.0 | -520.1 | |
| 2.61 | -41.00 | 1.80 | -41.00 | 13.19 | 303.92 | -43.94 | 76.64 | 0.6967 | -400.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 10.83 | 304.32 | -43.54 | 80.00 | 0.6894 | 752.0 | 657.1 | |
| 5.14 | -41.00 | 3.51 | -41.00 | 11.27 | 304.15 | -43.71 | 79.37 | 0.6918 | 942.7 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.03 | 14.28 | 303.45 | -44.42 | 75.15 | 0.7040 | -581.0 | -403.6 | |
| 5.05 | -41.00 | 3.51 | -41.00 | 13.22 | 303.36 | -44.50 | 76.68 | 0.7036 | -715.1 | 999999 | |
| 2.35 | -41.00 | 1.63 | -41.00 | 12.11 | 303.56 | -44.30 | 78.23 | 0.6999 | 918.1 | 999999 | |
| 1.13 | -41.00 | 0.79 | -41.00 | 12.74 | 303.42 | -44.44 | 77.36 | 0.7022 | 919.7 | 999999 | |
| 2.00 | -41.00 | 1.39 | -41.00 | 12.57 | 303.16 | -44.70 | 77.63 | 0.7052 | 961.0 | 999999 | |
| 4.61 | -41.00 | 3.21 | -41.00 | 12.06 | 303.23 | -44.63 | 78.34 | 0.7039 | 909.0 | 999999 | |
| 1.83 | -41.00 | 1.27 | -41.00 | 11.68 | 303.09 | -44.77 | 78.89 | 0.7052 | -330.5 | 999999 | |
| 6.09 | -41.00 | 4.27 | -41.00 | 12.66 | 302.75 | -45.11 | 77.54 | 0.7103 | 857.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 18.34 | 300.74 | -47.12 | 70.10 | 0.7420 | 434.0 | 405.2 | |
| 5.31 | -41.00 | 3.75 | -41.00 | 12.24 | 302.36 | -45.50 | 78.18 | 0.7145 | 861.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 12.61 | 302.06 | -45.80 | 77.69 | 0.7184 | 600.0 | 476.0 | |
| 10.62 | -41.00 | 7.51 | -41.00 | 11.90 | 302.18 | -45.69 | 78.68 | 0.7164 | 834.5 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.29 | 10.81 | 302.14 | -45.72 | 80.20 | 0.7160 | 644.0 | 562.2 | |
| 0.00 | 1.92 | 0.00 | 1.36 | 11.12 | 301.94 | -45.92 | 79.77 | 0.7186 | 559.0 | 501.1 | |
| 0.00 | 2.18 | 0.00 | 1.57 | 13.50 | 301.18 | -46.68 | 76.58 | 0.7297 | -251.0 | -161.2 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 13.34 | 301.17 | -46.69 | 76.79 | 0.7296 | -448.0 | -317.2 | |
| 2.87 | 3.13 | 2.05 | 2.24 | 11.37 | 301.58 | -46.28 | 79.46 | 0.7230 | 348.5 | 569.7 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 12.05 | 301.39 | -46.47 | 78.53 | 0.7258 | 529.0 | 463.1 | |
| 2.44 | 7.23 | 1.78 | 5.27 | 14.50 | 300.73 | -47.13 | 75.27 | 0.7361 | 944.9 | 649.4 | |
| 0.00 | 1.31 | 0.00 | 0.94 | 11.06 | 301.43 | -46.43 | 79.90 | 0.7246 | -356.0 | -341.4 | |
| 0.00 | 1.57 | 0.00 | 1.13 | 11.26 | 301.30 | -46.56 | 79.63 | 0.7263 | -204.0 | -126.4 | |
| 6.01 | 9.93 | 4.31 | 7.12 | 10.72 | 301.27 | -46.59 | 80.39 | 0.7262 | -745.3 | -320.6 | |
| 0.00 | 2.35 | 0.00 | 1.75 | 14.61 | 299.73 | -48.13 | 75.25 | 0.7475 | 760.0 | 662.7 | |
| 16.37 | 31.26 | 11.98 | 22.88 | 12.16 | 300.29 | -47.58 | 78.49 | 0.7387 | 822.4 | 544.1 | |
| 0.00 | 1.65 | 0.00 | 1.21 | 11.43 | 300.23 | -47.63 | 79.48 | 0.7389 | 768.0 | 679.2 | |
| 0.00 | 1.31 | 0.00 | 0.97 | 13.24 | 299.74 | -48.12 | 77.08 | 0.7459 | 784.0 | 679.6 | |
| 8.97 | 43.71 | 6.68 | 32.52 | 13.87 | 299.52 | -48.34 | 76.27 | 0.7489 | 977.3 | 606.1 | |
| 0.00 | 1.57 | 0.00 | 1.17 | 13.47 | 299.49 | -48.37 | 76.80 | 0.7489 | 702.0 | 565.7 | |
| 0.00 | 1.22 | 0.00 | 0.92 | 14.66 | 299.06 | -48.80 | 75.28 | 0.7550 | 489.0 | 377.7 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 11.97 | 299.78 | -48.08 | 78.78 | 0.7444 | 460.0 | 483.6 | |
| 0.00 | 1.65 | 0.00 | 1.22 | 11.55 | 299.83 | -48.03 | 79.34 | 0.7435 | 503.0 | 453.5 | |
| 0.00 | 1.13 | 0.00 | 0.85 | 14.55 | 298.86 | -49.00 | 75.44 | 0.7571 | 475.0 | 426.4 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 9.04 | 300.02 | -47.84 | 82.74 | 0.7403 | 653.0 | 596.0 | |
| 1.13 | 8.18 | 0.86 | 6.22 | 14.39 | 298.67 | -49.19 | 75.68 | 0.7590 | 547.2 | 392.5 | |
| 0.00 | 3.13 | 0.00 | 2.37 | 14.06 | 298.77 | -49.09 | 76.10 | 0.7576 | 635.0 | 485.5 | |
| 0.00 | 1.22 | 0.00 | 0.90 | 11.14 | 299.47 | -48.39 | 79.93 | 0.7474 | 801.0 | 690.4 | |
| 2.09 | 3.48 | 1.56 | 2.60 | 11.69 | 299.25 | -48.61 | 79.20 | 0.7503 | 702.8 | 559.9 | |
| 22.99 | 55.90 | 17.30 | 42.02 | 12.79 | 298.88 | -48.98 | 77.77 | 0.7551 | 719.9 | 402.0 | |
| 0.00 | 1.57 | 0.00 | 1.19 | 13.89 | 298.49 | -49.37 | 76.36 | 0.7605 | 435.0 | 313.8 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 11.49 | 298.92 | -48.94 | 79.49 | 0.7538 | 543.0 | 420.8 | |
| 0.00 | 9.93 | 0.00 | 7.47 | 11.45 | 298.79 | -49.07 | 79.55 | 0.7552 | 412.0 | 395.4 | |
| 0.00 | 3.22 | 0.00 | 2.46 | 13.44 | 298.23 | -49.63 | 76.97 | 0.7629 | 462.0 | 347.2 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 12.95 | 298.18 | -49.68 | 77.62 | 0.7631 | 304.0 | 252.3 | |
| 0.00 | 1.04 | 0.00 | 0.80 | 13.46 | 297.99 | -49.87 | 76.97 | 0.7655 | 319.0 | 234.2 | |
| 0.00 | 1.74 | 0.00 | 1.33 | 12.65 | 298.17 | -49.70 | 78.02 | 0.7630 | 296.0 | 209.1 | |
| 1.13 | 1.39 | 0.87 | 1.07 | 11.66 | 297.85 | -50.01 | 79.34 | 0.7659 | 215.2 | 390.3 | |
| 0.00 | 1.22 | 0.00 | 0.93 | 11.36 | 297.92 | -49.94 | 79.72 | 0.7649 | 466.0 | 283.6 | |
| 0.00 | 0.87 | 0.00 | 0.69 | 13.87 | 296.16 | -51.70 | 76.61 | 0.7855 | 416.0 | 342.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
