SDO HMI 2011-10-20 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.59 | 243.29 | 63.99 | 138.22 | -21.02 | 334.47 | -12.84 | 155.03 | 0.4918 | -165.6 | -141.0 | |
|
previous
or next observation for the same group /

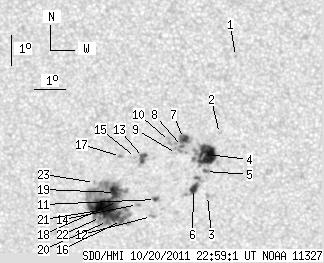

back to the solar disc SDO HMI 2011-10-20 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.65 | 337.82 | -9.49 | 157.17 | 0.4086 | -866.0 | -603.4 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -19.16 | 337.17 | -10.14 | 158.18 | 0.4490 | 833.0 | 653.1 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -21.22 | 336.64 | -10.66 | 158.92 | 0.4815 | 699.0 | 536.5 | |
| 24.73 | 39.79 | 13.79 | 22.21 | -19.86 | 336.71 | -10.60 | 157.90 | 0.4618 | 1093.1 | 581.7 | |
| 1.65 | 2.53 | 0.93 | 1.42 | -20.42 | 336.64 | -10.67 | 158.25 | 0.4702 | 710.4 | 620.8 | |
| 6.10 | 14.28 | 3.44 | 8.05 | -21.00 | 336.21 | -11.10 | 157.95 | 0.4808 | 817.2 | 579.4 | |
| 6.27 | 18.72 | 3.49 | 10.44 | -19.35 | 336.00 | -11.31 | 156.11 | 0.4588 | 1039.8 | 700.0 | |
| 1.13 | -7.00 | 0.63 | -7.00 | -19.61 | 335.95 | -11.36 | 156.26 | 0.4628 | 865.5 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -19.85 | 335.74 | -11.57 | 156.09 | 0.4674 | 390.0 | 303.2 | |
| 0.00 | 3.31 | 0.00 | 1.85 | -19.45 | 335.54 | -11.77 | 155.36 | 0.4632 | 857.0 | 663.5 | |
| 2.09 | 2.53 | 1.19 | 1.44 | -21.39 | 334.93 | -12.38 | 156.06 | 0.4939 | -870.8 | -548.6 | |
| 0.00 | 1.74 | 0.00 | 1.00 | -21.97 | 334.75 | -12.56 | 156.25 | 0.5028 | -803.0 | -644.8 | |
| 4.70 | 8.10 | 2.65 | 4.56 | -20.00 | 334.66 | -12.65 | 154.30 | 0.4766 | 804.3 | 462.0 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -21.57 | 334.32 | -12.99 | 155.19 | 0.5001 | -866.0 | -824.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -20.01 | 334.39 | -12.91 | 153.85 | 0.4784 | 577.0 | 404.0 | |
| 4.88 | 139.93 | 2.81 | 80.29 | -22.12 | 333.74 | -13.57 | 154.74 | 0.5113 | -761.0 | -574.4 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -19.99 | 333.91 | -13.40 | 152.98 | 0.4814 | 678.0 | 504.7 | |
| 0.96 | -16.00 | 0.55 | -16.00 | -21.49 | 333.67 | -13.64 | 154.04 | 0.5032 | -988.3 | 999999 | |
| 10.97 | -16.00 | 6.26 | -16.00 | -21.19 | 333.63 | -13.68 | 153.69 | 0.4994 | -1143.5 | 999999 | |
| 2.00 | -16.00 | 1.16 | -16.00 | -22.17 | 333.27 | -14.04 | 154.02 | 0.5149 | -510.0 | 999999 | |
| 45.28 | -16.00 | 26.04 | -16.00 | -21.77 | 333.21 | -14.10 | 153.56 | 0.5100 | -994.1 | 999999 | |
| 1.83 | -16.00 | 1.05 | -16.00 | -22.04 | 333.05 | -14.26 | 153.56 | 0.5146 | -418.0 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -20.87 | 332.97 | -14.34 | 152.30 | 0.4998 | -807.0 | -715.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
