SDO HMI 2011-10-20 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.06 | 0.00 | 8.34 | 24.86 | 328.31 | -18.45 | 39.85 | 0.4442 | -98.1 | -105.7 | |
|
previous
or next observation for the same group /

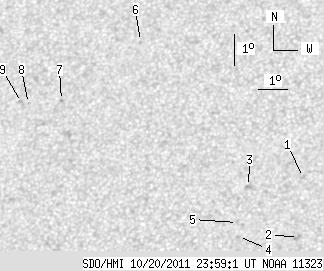

back to the solar disc SDO HMI 2011-10-20 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 0.99 | 24.50 | 332.57 | -14.18 | 34.12 | 0.3992 | -820.0 | -591.7 | |
| 0.00 | 2.96 | 0.00 | 1.58 | 22.62 | 332.61 | -14.14 | 37.14 | 0.3752 | -963.0 | -717.4 | |
| 0.00 | 2.79 | 0.00 | 1.51 | 24.18 | 330.75 | -16.01 | 37.80 | 0.4123 | -663.0 | -403.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 22.60 | 330.61 | -16.15 | 40.72 | 0.3954 | -774.0 | -537.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 23.04 | 330.52 | -16.24 | 40.10 | 0.4013 | -631.0 | -458.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 28.70 | 326.20 | -20.55 | 37.59 | 0.5069 | 753.0 | 625.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 26.71 | 323.75 | -23.00 | 43.39 | 0.5102 | 795.0 | 617.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 26.57 | 322.58 | -24.18 | 44.89 | 0.5211 | 657.0 | 569.0 | |
| 0.00 | 2.87 | 0.00 | 1.67 | 26.59 | 322.32 | -24.44 | 45.13 | 0.5241 | 763.0 | 552.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
