group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	218.97	884.44	145.29	584.47	11.76	304.81	-41.40	78.41	0.6615	32.4	71.0

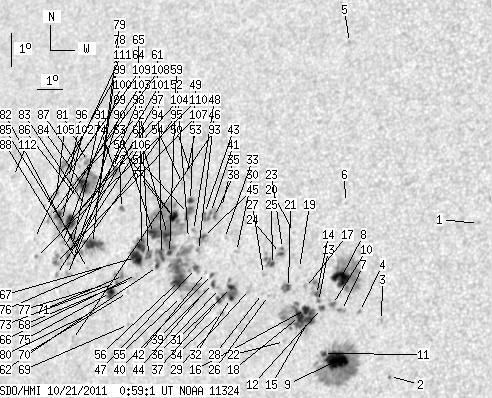

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-21 00:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.31	0.00	0.76	13.67	315.18	-31.02	72.67	0.5267	-718.0	-532.7
2	0.00	1.05	0.00	0.62	8.94	312.57	-33.64	82.04	0.5547	481.0	456.4
3	0.00	0.87	0.00	0.52	10.59	312.09	-34.12	79.14	0.5636	-819.0	-592.2
4	0.00	1.83	0.00	1.11	10.82	311.24	-34.96	78.90	0.5758	-841.0	-723.5
5	0.00	1.31	0.00	0.83	18.90	309.30	-36.91	66.20	0.6233	-594.0	-485.3
6	0.00	0.35	0.00	0.21	14.05	310.21	-36.00	73.65	0.5964	-535.0	-507.8
7	0.00	3.57	0.00	2.18	10.81	310.57	-35.63	79.03	0.5851	-869.0	-783.4
8	16.64	68.63	10.18	41.87	11.77	310.40	-35.81	77.44	0.5891	-1008.9	-526.5
9	27.09	132.82	16.49	80.78	9.31	310.58	-35.63	81.60	0.5833	-1113.5	-452.4
10	2.53	4.70	1.55	2.88	10.97	310.21	-35.99	78.81	0.5904	-909.6	-715.4
11	2.18	-9.00	1.33	-9.00	9.49	310.07	-36.14	81.34	0.5906	-497.8	999999
12	2.70	3.31	1.66	2.04	10.83	309.82	-36.39	79.12	0.5956	-858.2	-784.0
13	1.48	13.15	0.91	8.13	11.03	309.68	-36.53	78.80	0.5978	-810.2	-666.1
14	2.18	-13.00	1.34	-13.00	11.24	309.57	-36.64	78.48	0.5996	-833.6	999999
15	4.62	65.06	2.85	40.46	10.44	309.38	-36.83	79.83	0.6011	-1014.4	-382.9
16	4.09	-15.00	2.54	-15.00	10.77	309.22	-36.99	79.32	0.6037	-904.3	999999
17	0.00	2.53	0.00	1.57	11.42	309.12	-37.08	78.25	0.6060	-621.0	-458.3
18	6.79	-15.00	4.22	-15.00	10.54	309.02	-37.18	79.71	0.6061	-815.8	999999
19	0.00	0.78	0.00	0.49	11.98	308.80	-37.40	77.40	0.6111	-649.0	-520.2
20	0.00	1.05	0.00	0.66	13.04	308.39	-37.82	75.76	0.6185	-648.0	-468.6
21	2.79	6.53	1.75	4.10	11.39	308.47	-37.73	78.42	0.6147	-790.0	-583.8
22	0.00	2.09	0.00	1.31	9.77	308.56	-37.65	81.05	0.6117	-504.0	-419.4
23	1.05	5.14	0.66	3.24	12.54	308.05	-38.16	76.64	0.6221	-587.1	-599.9
24	2.00	-23.00	1.26	-23.00	12.39	308.00	-38.21	76.89	0.6226	-847.8	999999
25	0.96	8.62	0.61	5.47	12.04	307.75	-38.46	77.49	0.6254	-893.8	-610.6
26	0.00	0.87	0.00	0.55	11.10	307.74	-38.46	78.99	0.6241	-529.0	-416.0
27	0.00	1.13	0.00	0.72	11.72	307.45	-38.76	78.05	0.6289	-472.0	-355.4
28	0.00	1.22	0.00	0.77	11.15	307.50	-38.71	78.95	0.6274	-266.0	-90.3
29	0.00	4.62	0.00	2.95	11.24	306.98	-39.23	78.88	0.6345	442.0	338.6
30	0.00	1.39	0.00	0.90	12.34	306.27	-39.94	77.26	0.6452	-559.0	-470.0
31	2.61	21.86	1.69	14.13	11.26	306.26	-39.95	78.95	0.6439	1034.2	462.9
32	1.31	-31.00	0.84	-31.00	10.93	306.28	-39.93	79.46	0.6433	-390.3	999999
33	0.00	0.44	0.00	0.28	12.70	305.72	-40.49	76.80	0.6529	-489.0	-510.2
34	0.00	1.13	0.00	0.73	10.49	305.99	-40.22	80.18	0.6467	-671.0	-595.2
35	0.00	1.65	0.00	1.09	13.63	305.41	-40.79	75.46	0.6583	-742.0	-540.4
36	0.00	2.18	0.00	1.42	11.20	305.79	-40.42	79.10	0.6500	804.0	629.7
37	2.61	-31.00	1.70	-31.00	10.84	305.81	-40.40	79.65	0.6493	-493.9	999999
38	1.31	11.84	0.86	7.82	13.34	305.19	-41.02	75.94	0.6607	-799.2	-545.6
39	1.83	2.87	1.19	1.88	11.33	305.49	-40.72	78.94	0.6541	779.4	717.8
40	1.31	2.44	0.85	1.59	11.60	305.40	-40.81	78.54	0.6555	638.8	580.1
41	0.96	-38.00	0.63	-38.00	13.45	305.00	-41.21	75.80	0.6632	-547.1	999999
42	0.00	0.96	0.00	0.63	11.64	305.15	-41.06	78.51	0.6588	411.0	266.3
43	1.31	-38.00	0.87	-38.00	13.40	304.76	-41.44	75.91	0.6661	-461.9	999999
44	0.00	1.05	0.00	0.69	11.07	305.21	-41.00	79.37	0.6574	-272.0	-232.7
45	1.13	10.10	0.75	6.68	12.71	304.87	-41.34	76.93	0.6638	-331.2	2.4
46	0.00	2.70	0.00	1.79	12.28	304.75	-41.46	77.60	0.6647	-473.0	-310.5
47	3.31	270.61	2.19	182.46	11.74	304.73	-41.48	78.42	0.6643	-736.7	353.6
48	0.00	2.18	0.00	1.45	12.87	304.42	-41.78	76.77	0.6696	360.0	276.2
49	2.96	3.48	1.98	2.33	13.76	304.11	-42.10	75.51	0.6749	-669.9	-482.0
50	0.00	1.22	0.00	0.82	14.74	303.84	-42.37	74.11	0.6799	-655.0	-562.1
51	6.36	-47.00	4.25	-47.00	13.36	304.11	-42.09	76.09	0.6742	-579.3	999999
52	0.00	1.57	0.00	1.04	12.62	304.27	-41.94	77.17	0.6712	555.0	460.6
53	0.00	2.70	0.00	1.82	14.53	303.77	-42.44	74.44	0.6804	-762.0	-488.2
54	0.00	0.87	0.00	0.59	14.25	303.66	-42.54	74.87	0.6812	-462.0	-403.2
55	0.00	1.13	0.00	0.75	10.87	304.31	-41.90	79.78	0.6687	740.0	624.6
56	10.36	-47.00	6.91	-47.00	11.34	304.14	-42.06	79.09	0.6713	741.3	999999
57	0.26	-47.00	0.18	-47.00	13.12	303.67	-42.54	76.51	0.6795	-264.0	999999
58	5.31	-47.00	3.58	-47.00	13.23	303.52	-42.69	76.37	0.6815	-742.1	999999
59	1.83	-47.00	1.23	-47.00	12.12	303.58	-42.63	78.00	0.6792	888.0	999999
60	2.87	-47.00	1.94	-47.00	12.68	303.38	-42.82	77.20	0.6824	970.1	999999
61	5.66	-47.00	3.83	-47.00	12.07	303.26	-42.95	78.12	0.6832	902.3	999999
62	1.83	-47.00	1.24	-47.00	11.70	303.16	-43.04	78.67	0.6840	-280.2	999999
63	7.49	-47.00	5.11	-47.00	12.67	302.80	-43.41	77.30	0.6897	822.7	999999
64	4.79	-47.00	3.27	-47.00	12.00	302.72	-43.48	78.28	0.6898	801.7	999999
65	7.75	-47.00	5.32	-47.00	12.28	302.37	-43.84	77.92	0.6944	843.2	999999
66	0.00	1.31	0.00	0.90	11.40	302.34	-43.87	79.19	0.6940	659.0	663.1
67	11.76	-47.00	8.09	-47.00	11.91	302.19	-44.02	78.48	0.6962	822.5	999999
68	0.00	2.61	0.00	1.80	11.24	302.15	-44.05	79.44	0.6961	654.0	620.0
69	0.00	0.78	0.00	0.54	9.89	302.27	-43.94	81.37	0.6937	588.0	523.9
70	0.00	1.31	0.00	0.90	10.84	302.06	-44.15	80.02	0.6969	610.0	487.3
71	0.96	9.58	0.66	6.64	11.34	301.79	-44.41	79.33	0.7006	438.2	161.2
72	0.87	2.35	0.61	1.65	13.33	301.28	-44.93	76.56	0.7089	-560.2	-381.5
73	1.31	-71.00	0.91	-71.00	11.11	301.54	-44.67	79.68	0.7035	-444.8	999999
74	0.00	6.88	0.00	4.87	14.42	300.74	-45.47	75.12	0.7167	1023.0	759.4
75	6.27	8.71	4.37	6.07	10.80	301.34	-44.87	80.14	0.7057	-734.1	-484.4
76	0.00	1.05	0.00	0.73	11.62	301.09	-45.12	78.99	0.7094	676.0	581.5
77	0.00	2.09	0.00	1.46	11.02	301.08	-45.12	79.85	0.7090	251.0	189.6
78	0.00	1.22	0.00	0.87	13.60	300.20	-46.01	76.34	0.7220	763.0	692.9
79	12.02	25.08	8.55	17.82	12.21	300.27	-45.94	78.26	0.7197	853.1	652.1
80	0.00	2.09	0.00	1.47	10.15	300.64	-45.57	81.11	0.7138	-456.0	-349.2
81	0.00	8.10	0.00	5.87	14.64	299.43	-46.78	75.02	0.7322	692.0	593.0
82	0.00	1.13	0.00	0.81	11.45	300.21	-46.00	79.32	0.7198	751.0	632.2
83	0.00	1.74	0.00	1.25	13.32	299.69	-46.52	76.79	0.7276	753.0	611.8
84	10.10	33.27	7.31	24.02	13.91	299.45	-46.76	76.01	0.7311	988.8	645.5
85	1.13	2.18	0.81	1.56	11.90	299.85	-46.36	78.72	0.7244	639.5	621.3
86	0.00	2.00	0.00	1.45	13.51	299.33	-46.88	76.57	0.7320	579.0	498.6
87	0.00	1.22	0.00	0.89	14.49	299.06	-47.14	75.27	0.7362	628.0	555.6
88	0.00	0.87	0.00	0.62	11.65	299.72	-46.48	79.08	0.7257	590.0	537.4
89	0.00	0.61	0.00	0.45	14.60	298.89	-47.31	75.14	0.7383	436.0	372.7
90	0.00	1.74	0.00	1.25	11.73	299.53	-46.68	78.99	0.7280	559.0	500.6
91	1.39	10.10	1.01	7.30	12.09	299.40	-46.80	78.51	0.7298	713.4	670.7
92	0.00	1.31	0.00	0.95	13.91	298.95	-47.26	76.08	0.7368	543.0	486.9
93	0.00	1.74	0.00	1.24	9.29	299.96	-46.24	82.34	0.7216	617.0	534.3
94	10.71	26.91	7.78	19.63	12.76	299.11	-47.10	77.61	0.7338	856.1	537.1
95	0.00	1.65	0.00	1.19	11.54	299.39	-46.82	79.26	0.7295	709.0	654.9
96	0.00	2.61	0.00	1.92	14.07	298.72	-47.48	75.88	0.7396	745.0	537.1
97	2.44	3.48	1.76	2.52	11.77	299.25	-46.96	78.95	0.7313	584.2	573.2
98	0.00	3.92	0.00	2.83	11.21	299.37	-46.83	79.72	0.7295	819.0	660.6
99	0.00	9.32	0.00	6.87	14.42	298.44	-47.77	75.45	0.7432	494.0	399.8
100	0.00	2.26	0.00	1.65	12.15	298.94	-47.27	78.47	0.7352	547.0	450.7
101	0.00	0.96	0.00	0.70	11.94	298.99	-47.22	78.75	0.7345	476.0	426.7
102	1.48	-94.00	1.08	-94.00	12.77	298.74	-47.46	77.64	0.7380	620.1	999999
103	4.27	-94.00	3.13	-94.00	12.97	298.56	-47.65	77.39	0.7403	543.4	999999
104	0.00	2.87	0.00	2.10	12.34	298.67	-47.54	78.23	0.7385	328.0	283.7
105	0.00	2.87	0.00	2.12	13.56	298.31	-47.90	76.62	0.7437	546.0	428.3
106	0.00	1.92	0.00	1.39	11.17	298.89	-47.32	79.80	0.7351	613.0	532.1
107	2.00	8.01	1.46	5.84	11.50	298.77	-47.44	79.36	0.7367	404.3	443.4
108	0.00	3.92	0.00	2.90	12.85	298.18	-48.03	77.59	0.7446	342.0	214.0
109	0.00	1.31	0.00	0.97	13.16	297.86	-48.34	77.20	0.7484	274.0	223.2
110	0.00	1.57	0.00	1.16	11.65	297.87	-48.34	79.23	0.7471	475.0	298.4
111	0.00	1.05	0.00	0.78	12.18	297.65	-48.56	78.54	0.7500	363.0	304.9
112	0.00	1.83	0.00	1.41	13.96	296.18	-50.03	76.33	0.7678	542.0	470.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
