SDO HMI 2011-10-21 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.48 | 266.43 | 49.86 | 150.88 | -21.09 | 334.36 | -11.84 | 156.80 | 0.4865 | 2.2 | -273.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

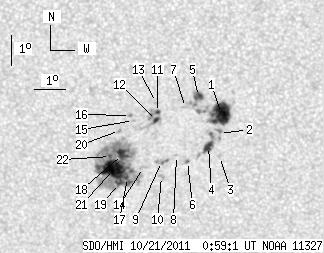

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.53 | 42.33 | 17.51 | 23.52 | -19.82 | 336.83 | -9.37 | 160.20 | 0.4543 | 1037.1 | 556.2 | |
| 0.00 | 4.79 | 0.00 | 2.68 | -20.48 | 336.73 | -9.48 | 160.52 | 0.4645 | 694.0 | 663.9 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -21.25 | 336.68 | -9.53 | 161.00 | 0.4758 | 588.0 | 463.9 | |
| 6.62 | 15.33 | 3.72 | 8.60 | -20.92 | 336.34 | -9.86 | 160.13 | 0.4728 | 765.3 | 521.2 | |
| 5.31 | 10.02 | 2.94 | 5.55 | -19.27 | 336.13 | -10.08 | 158.38 | 0.4502 | 1132.5 | 840.5 | |
| 1.39 | 1.83 | 0.79 | 1.03 | -21.44 | 335.62 | -10.58 | 159.23 | 0.4840 | 422.8 | 253.4 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -19.64 | 335.69 | -10.52 | 157.85 | 0.4581 | 471.0 | 405.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -21.24 | 335.28 | -10.93 | 158.46 | 0.4831 | -727.0 | -521.8 | |
| 0.00 | 5.66 | 0.00 | 3.21 | -21.45 | 334.77 | -11.43 | 157.74 | 0.4890 | -501.0 | -701.9 | |
| 0.00 | 2.79 | 0.00 | 1.59 | -21.96 | 334.73 | -11.47 | 158.08 | 0.4962 | -858.0 | -643.8 | |
| 1.65 | 14.81 | 0.93 | 8.30 | -19.82 | 334.77 | -11.44 | 156.30 | 0.4662 | 943.2 | 535.9 | |
| 2.87 | -11.00 | 1.61 | -11.00 | -20.09 | 334.72 | -11.49 | 156.45 | 0.4702 | 764.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -19.49 | 334.76 | -11.45 | 155.98 | 0.4616 | 524.0 | 532.6 | |
| 0.00 | 2.79 | 0.00 | 1.59 | -21.67 | 334.17 | -12.04 | 156.87 | 0.4955 | -1031.0 | -730.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -20.10 | 333.97 | -12.24 | 155.12 | 0.4752 | -190.0 | -195.7 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -19.94 | 333.88 | -12.32 | 154.82 | 0.4735 | 620.0 | 472.1 | |
| 1.05 | 157.73 | 0.60 | 90.12 | -22.01 | 333.61 | -12.60 | 156.22 | 0.5036 | -889.5 | -539.1 | |
| 8.19 | -17.00 | 4.66 | -17.00 | -21.25 | 333.51 | -12.69 | 155.38 | 0.4937 | -1233.8 | 999999 | |
| 1.74 | -17.00 | 1.00 | -17.00 | -22.22 | 333.32 | -12.88 | 155.94 | 0.5082 | -531.2 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.08 | -20.45 | 333.48 | -12.72 | 154.59 | 0.4830 | -1030.0 | -664.5 | |
| 27.00 | -17.00 | 15.45 | -17.00 | -21.76 | 333.17 | -13.04 | 155.27 | 0.5028 | -1143.2 | 999999 | |
| 1.13 | -17.00 | 0.65 | -17.00 | -21.32 | 333.11 | -13.10 | 154.78 | 0.4973 | -1120.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
